LMK55B

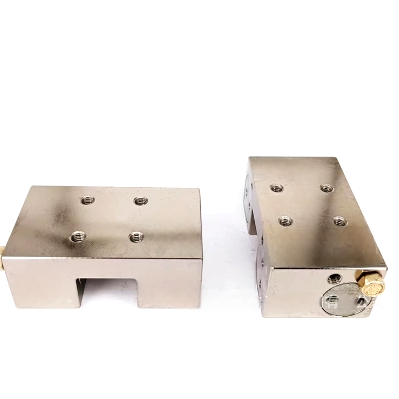

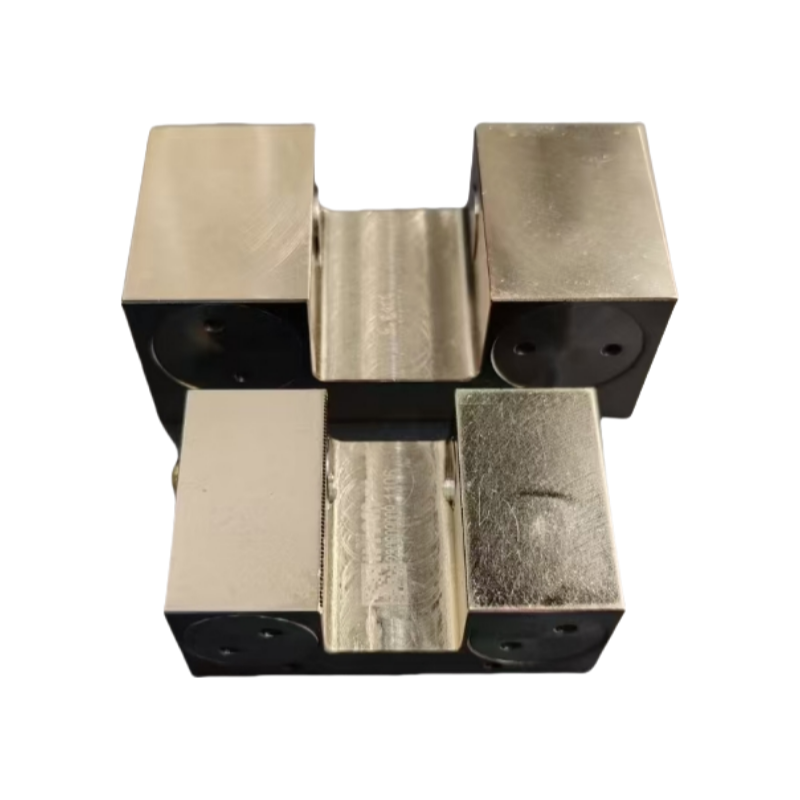

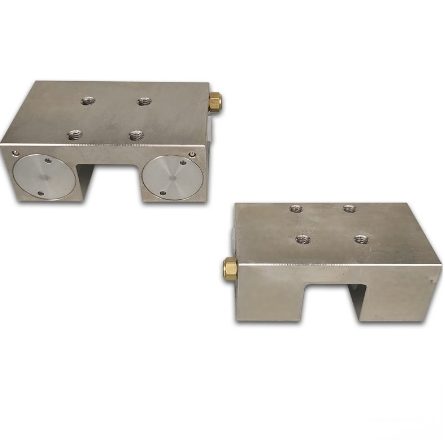

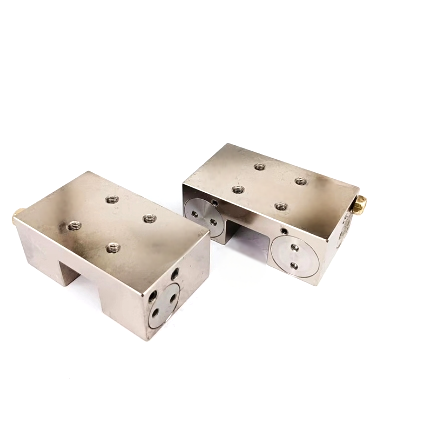

55mm Ball Linear Guide Rail Pneumatic Clamps Braking
This normally open clamp is suitable for 55mm ball linear guides. It prevents vibration and improves the rigidity of the system.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 55mm |
| Rated holding force(N) | 3000N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
