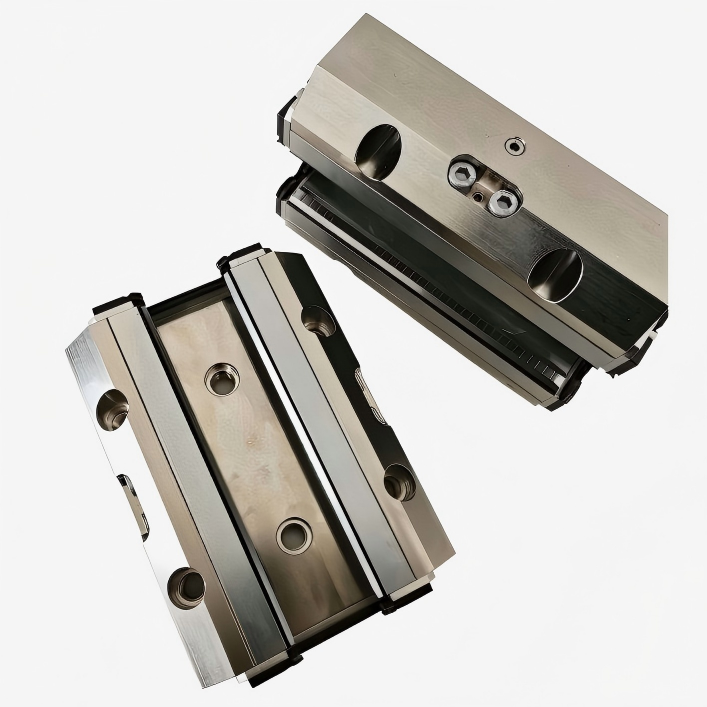

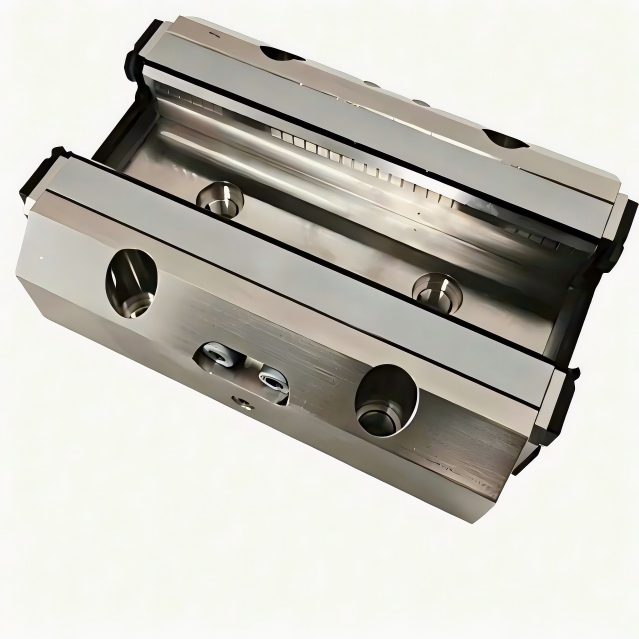

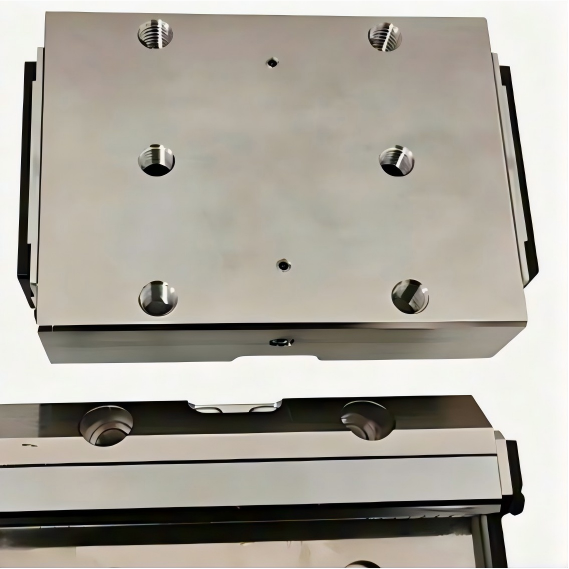

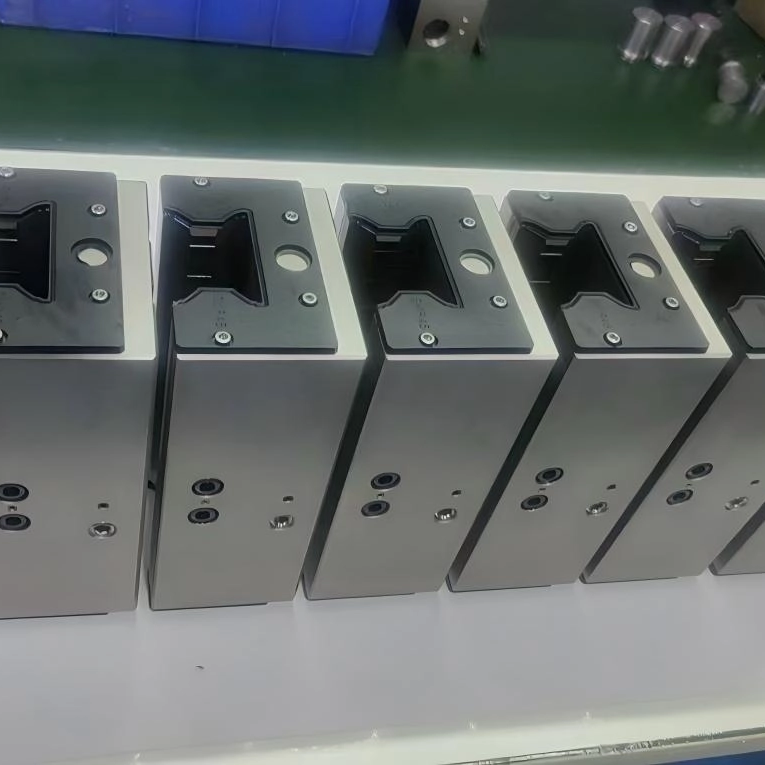

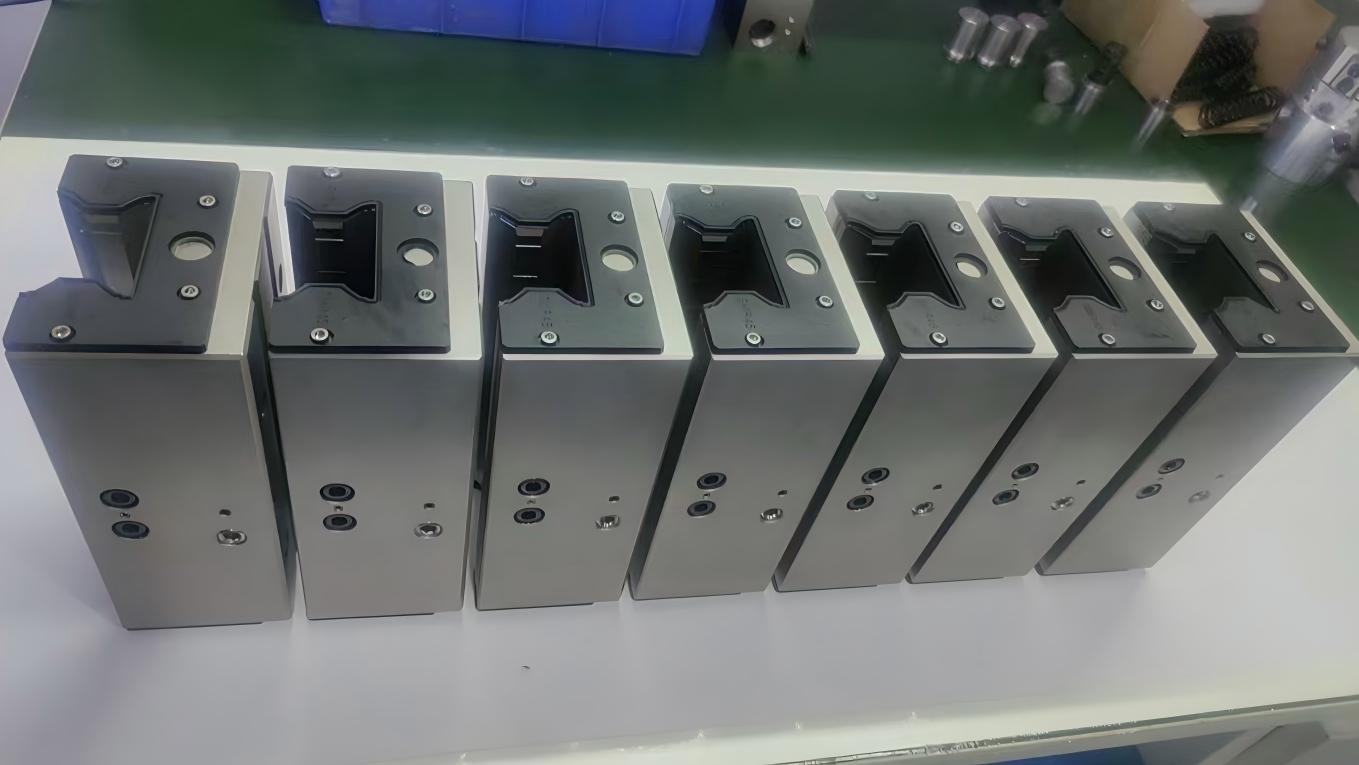

LKWH30
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||

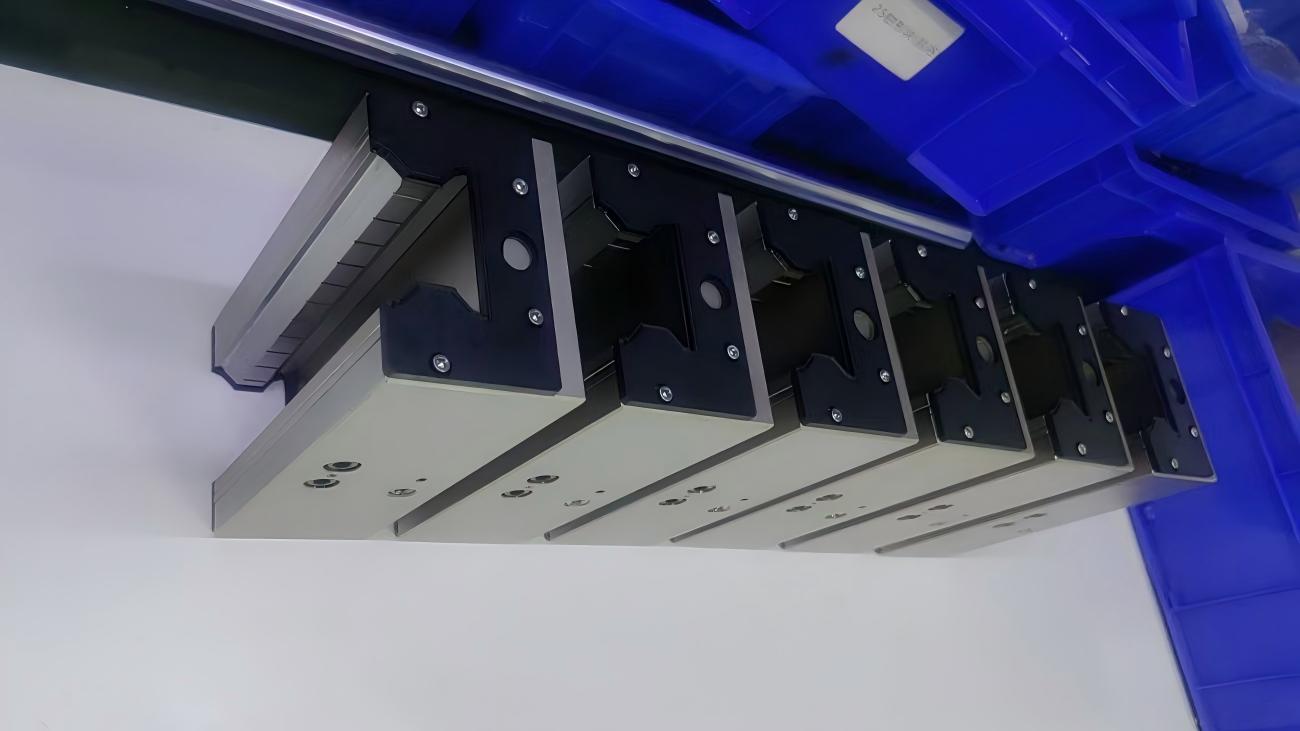

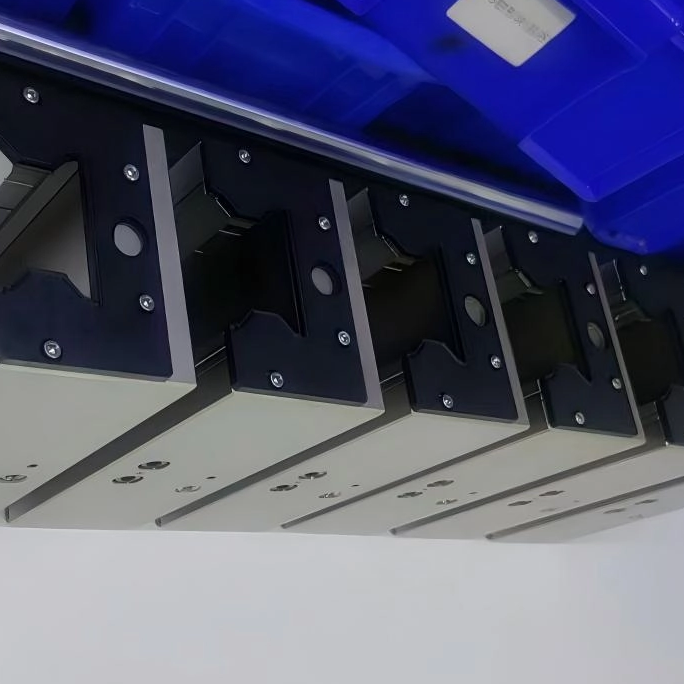

| Clamp types | Hydraulic normally open |
| Linear rail sizes | 30mm |
| Standard type rated holding force(N) | 3000N |
| Working pressure range | 7~12Mpa |
| Clamping service life | 2 million times |
| Main body material | 42CrMo, sandblasted electroless nickel coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | -10 °~70 °C |
| Applicable linear guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA/IKO and so on |

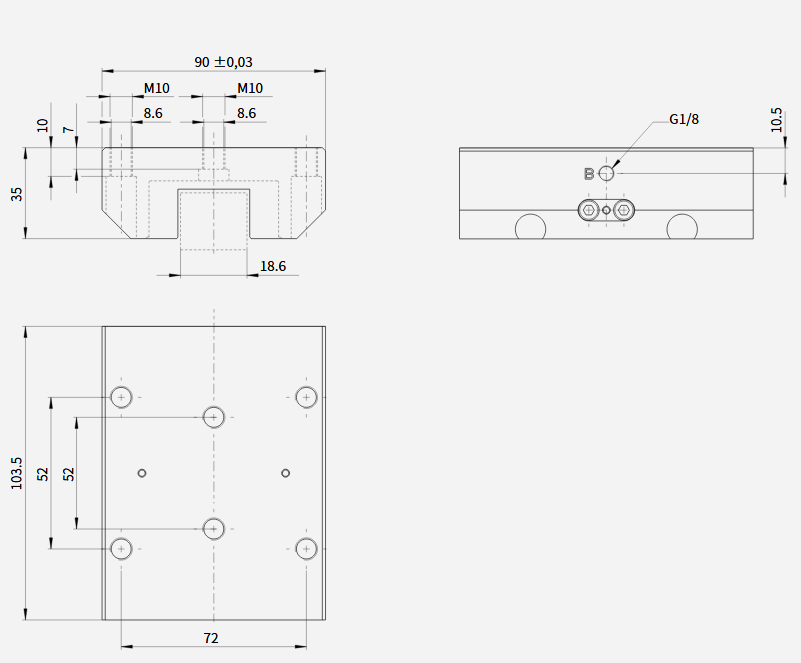

| 2D and 3D drawing | Available |
-Main body:42CrMo,electroless sandblasting nickel plating
-Air filter: Brass
-Contact surface:Equivalent to SKD11,electroless nickel plating
-Adjusting bolt:Equivalent to SKD11,electroless nickel plating
-Lead Time:18~20days.
-Cost-Effective: 50%~70% cost savings.
-High Durability:Up to 2 million static clamping cycles.
-Broad Range of Products:For all common profile rail guides.
-Interchangeable:Completely replace the Zimmer or NBK brand KWH series hydraulic linear guide clamp.
-Machining Precision:Instead of ordinary milling,we adopt precision grinding to ensure much higher accuracy.
-Corrosion Resistance:We apply electroless sandblasting nickel plating for excellent anti-rust,anti-corrosion performance and premium appearance.(Note:the contact surface material SKD11,electroless nickel plating)
-Superior Material:We use 42CrMo alloy steel for the clamp's main body.Our clamps offer higher strength,better wear resistance and longer service life.
-Quality Control:Every clamp will go through full performance testing and inspection before shipment to ensure 100% qualified products.
