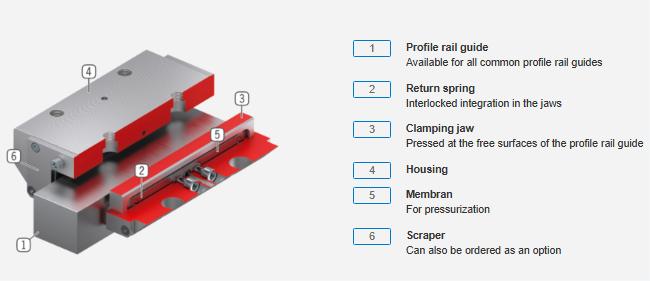

LKWH series hydraulic linear guide clamp is designed for ball and roller linear guide rails,widely used to lock worktables,fix positioning and suppress vibration in automation machine tools,precision machining equipment,CNC machinery and automated production lines.The clamping force is generated by hydraulic pressure and transmitted to the guide rail via pistons.If hydraulic pressure is applied to the product, it closes.
LKWH Series Hydraulic Clamping Element Material & Surface Treatment
High-strength raw materials and anti-corrosion surface treatment ensure long service life and stable performance in harsh workshop environments.
- Air filter:Brass
- Contact surface:SKD11 equivalent,electroless nickel plating
- Adjustment bolt:SKD11 equivalent,electroless nickel plating
-Main Body:42CrMo,electroless nickel plating with sandblasting
LKWH Series Hydraulic Clamping Element Technical Specifications
Control Mode | Hydraulic drive |
Working Hydraulic Pressure | 7–12 MPa |
Mechanical Lifespan | Up to 2 million working cycles |
Applicable Rail Type | Ball guide rail / Roller linear guide |
Structure Type | Normally Open (NO) -When hydraulic pressure is supplied: clamps the linear guide. -When hydraulic pressure is released: releases the clamp. |
LMT Brand LKWH Series Hydraulic Normally Open Clamp Advantages
-Lead Time:18days.
-Cost-Effective: 50%~70% cost savings.
-High Durability:Up to 2 million static clamping cycles.
-Broad Range of Products:For all common profile rail guides.

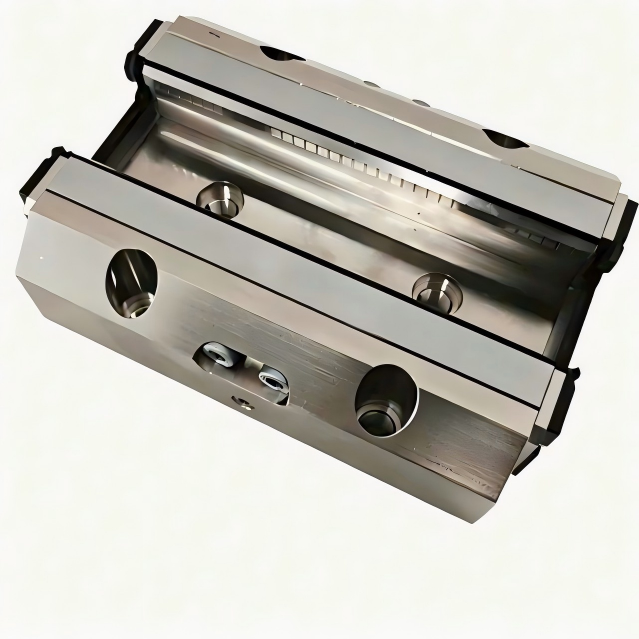

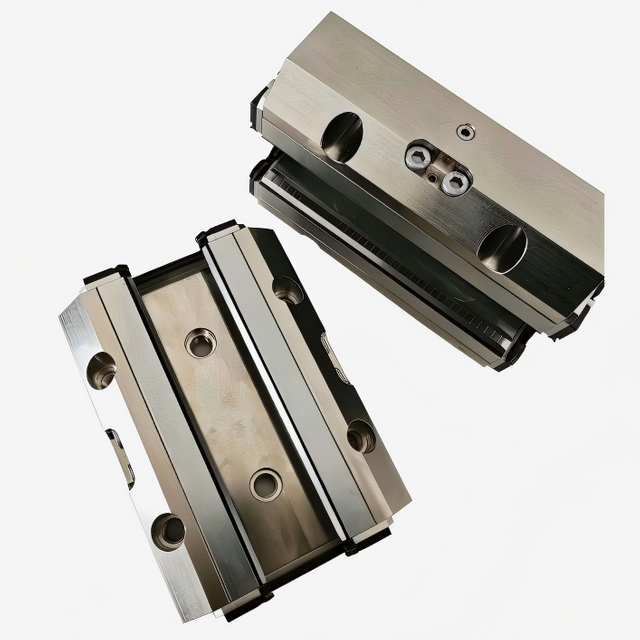

-Interchangeable:Completely replace the Zimmer or NBK brand KWH series hydraulic linear guide clamp.
-Machining Precision:Instead of ordinary milling,we adopt precision grinding to ensure much higher accuracy.
-Corrosion Resistance:We apply electroless sandblasting nickel plating for excellent anti-rust,anti-corrosion performance and premium appearance.(Note:the contact surface material SKD11,electroless nickel plating)
-Superior Material:We use 42CrMo alloy steel for the clamp's main body.Our clamps offer higher strength,better wear resistance and longer service life.
-Quality Control:Every clamp will go through full performance testing and inspection before shipment to ensure 100% qualified products.
LKWH Series Hydraulic Clamp Ordering Model Rules
-Model Code: LKWH + Guide Rail Size
-Example: For 25mm size ball linear guide rail,the complete order model is LKWH25
-Must provide the linear guide brand and complete model number;different brands have different rail profile sizes,so the matched clamping head will differ.
-Please contact our sales staff to obtain product specifications,2D drawings and 3D models.
Typical Application Scenarios
-CNC machine tool worktable positioning locking
-Automated fixture and welding equipment
-Precision grinding machines and milling machines
-Automation sliding platforms,gantry machinery
-Robotic sliding axis anti-vibration locking
-Mold processing equipment,machining centers
