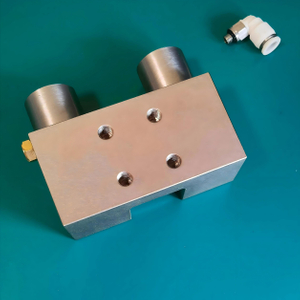

How To Set Up Plus Connection for Normally Closed Pneumatic Linear Guide Clamp？

Plus Connection:a connection method that increases holding force by combining spring‑generated holding force with pneumatic pressure‑generated holding force.

If your application requires plus connection for the pneumatic normally closed linear guide clamp,please follow the operations below:

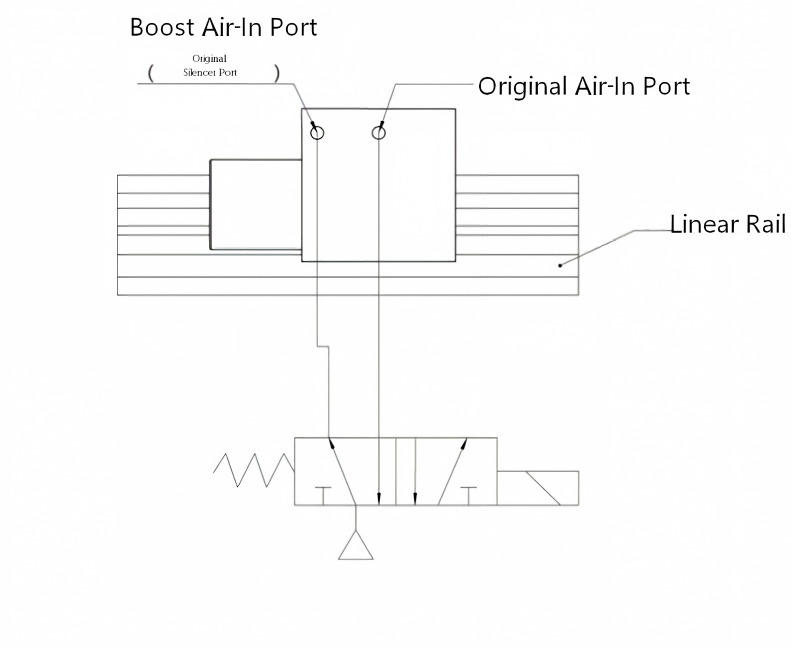

1.Remove the silencer.

2.Install the pipe joint,air pipe and solenoid valve.

3.Supply air and start the solenoid valve,and check the clamping and opening status of clamping element.

4.When releasing,first open the booster valve,and then supply air to release the clamping element.
