Automatic filling equipment is the core production unit for food,daily chemical,and chemical industries.It undertakes high-precision dosing,filling and forming tasks and directly determines production efficiency and product yield.However,most manufacturers have encountered the same hidden danger in mass production:sudden power failure,air source interruption,and emergency stop will trigger abnormal movement of Z-axis cylinders and sliding tables,causing mold damage,batch material scrapping, and even equipment collision and personal safety accidents.Conventional motor brakes and simple limit blocks cannot withstand long-term high-frequency startup and stop working conditions.They only provide static limiting protection without dynamic emergency braking capability,resulting in frequent wear,high replacement frequency and continuous high operation and maintenance costs.

This blog focuses on the linear guide clamping element and introduces the LMT LMBPS pneumatic normally closed rail clamp,a cost-effective domestic safety accessory tailored for automated filling machines.With dual core capabilities of power-off self-locking and ultra-fast emergency braking,it completely solves the two major fatal safety risks of filling production lines.

Two Fatal Hidden Dangers of Filling Machines That Traditional Accessories Cannot Solve

1. Z-axis Cylinder Falling Risk Caused by Power and Air Failure

The Z-axis of most filling machines bears heavy loads such as filling heads and material barrels, and relies on stable air pressure and electric power to maintain working height.Once the workshop is powered off,the air pipe falls off or the air source pressure suddenly drops,the load will lose support and drop rapidly.This not only causes irreversible damage to molds and tooling,but also easily triggers mechanical collision accidents and brings major safety hazards to on-site operators.

Traditional braking and limiting structures rely on external power support and fail to realize passive protection in extreme failure scenarios,leaving blank safety protection for vertical axis load-bearing working conditions.

2. Inertia Displacement on Emergency Stop Leading to Batch Material Scrap

When the production line triggers an emergency stop due to equipment failure, program error or manual intervention,the sliding table will continue to move due to inertia.The filling nozzle will deviate from the standard station position, resulting in leakage and spillage of liquid and powder materials.This not only causes a large amount of raw material waste,but also requires long-time shutdown cleaning and position calibration,seriously reducing production efficiency and increasing production costs.

Ordinary limit blocks only play a static blocking role and cannot offset the inertial displacement in dynamic operation.Long-term high-frequency use will accelerate component wear,with poor stability and short service life,failing to meet the continuous production needs of industrial filling lines.

Core Advantages of LMT LMBPS Linear Guide Clamping Element for Filling Machine Working Conditions

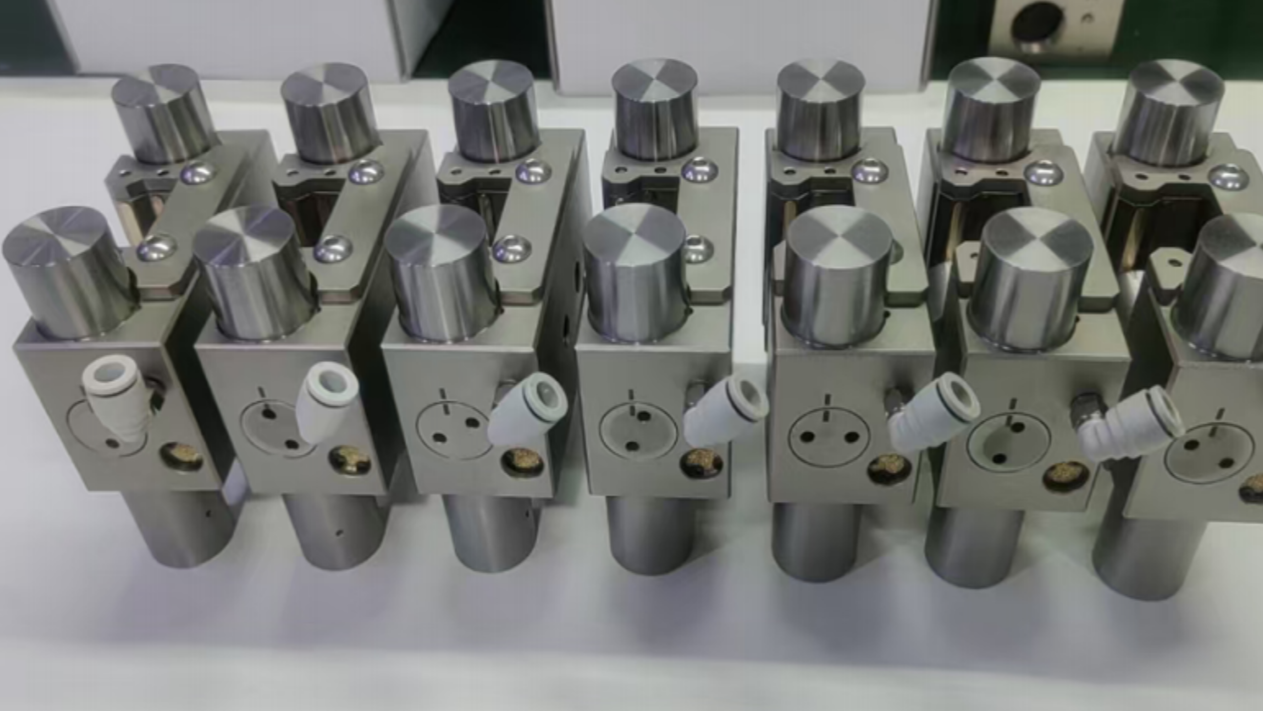

The LMT LMBPS series rail clamp is a professional linear guide clamping element adopting spring energy storage wedge clamping structure and independent emergency braking mechanism.It is a pneumatic normally closed passive safety device, which does not rely on external power to realize rigid locking and dynamic braking,and its performance parameters are fully adapted to the high-frequency and high-precision working conditions of automated filling equipment.

1. Passive Self-locking,Automatic Clamping Under Power-off and Pressure-loss Conditions

Under normal operating conditions,the equipment is fed with 0.5~0.8MPa pneumatic pressure to release the clamp, and the sliding table moves freely and smoothly. In case of sudden power failure, air source interruption or pressure loss, the internal high-precision spring instantly drives the wedge block to tightly hold the linear guide rail, rigidly locking the sliding table and cylinder position. It fundamentally eliminates the risk of Z-axis falling.

As a fully passive safety component, it does not require electric power or air source assistance for locking action, with extremely high reliability in extreme failure scenarios, making up for the core defects of traditional power-dependent braking structures.

2. Ultra-fast Response Within 0.06s,Accurate Offset Inertia Braking

Integrated with a professional emergency braking structure, this linear guide clamping element can be used as an independent emergency brake for the filling machine.When receiving an emergency stop command or equipment fault signal,it completes braking within 0.06 seconds, quickly offsets the inertial sliding of the sliding table, avoids station deviation and filling position dislocation, and effectively reduces material scrap rate and equipment collision damage.

It stably adapts to the working environment of 0℃~70℃,fully covering the conventional temperature range of factory production workshops,with strong environmental adaptability and stable continuous operation performance.

3. Durable and Low-maintenance,Suitable for New Equipment Assembly and Old Line Renovation

The LMBPS series rail clamp has passed 5 million cycle life tests,meeting the long-term high-frequency operation requirements of filling production lines.Different from traditional integral brake accessories,its brake pads can be replaced independently after wear and tear,without overall replacement of the clamp,greatly reducing later operation and maintenance costs.

The installation structure is simple and versatile,which can be directly matched with the equipment workbench without modifying the original equipment size and structure.It supports rapid assembly of new filling machines and safety upgrading and renovation of old production lines, with strong engineering practicability.

4. Full Specification Coverage,Matching Different Load Filling Equipment

The LMBPS series includes 7 complete models from LMBPS15 to LMBPS55,with a rated holding force ranging from 800N to 4700N.It can perfectly match small desktop filling equipment to large-tonnage vertical filling machines,covering all types of filling scenarios in food,daily chemical and chemical industries.Meanwhile,it has low air consumption and will not increase the operating load of the workshop pneumatic system.

Practical Application Value of Linear Guide Clamping Elements in Filling Production

1. Improve Filling Precision and Reduce Defect Rate

Continuous vibration during filling operation is easy to cause subtle displacement of the sliding table,resulting in inaccurate filling measurement.The LMT LMBPS linear guide clamping element has high rigidity after locking,which effectively suppresses equipment vibration and position offset, stabilizes the filling station,and significantly improves filling accuracy and product qualification rate.

2. Dual Safety Protection to Reduce Production Losses

In extreme scenarios such as power failure and air failure,it automatically locks the axis to prevent cylinder falling and mold damage;in emergency stop scenarios,it achieves rapid braking to avoid material leakage and waste.It not only saves the high cost of mold and tool replacement,but also eliminates potential personal injury hazards,realizing dual protection of equipment safety and personnel safety.

3. High-cost Performance Domestic Replacement to Shorten Procurement Cycle

Compared with imported rail clamping components,the domestic LMT LMBPS linear guide clamping element has stable supply and fast after-sales response,avoiding the long procurement cycle and high after-sales maintenance costs of imported products. It enables small and medium-sized processing factories to complete high-standard safety upgrading of filling production lines with lower investment,realizing efficient cost reduction and efficiency improvement.
