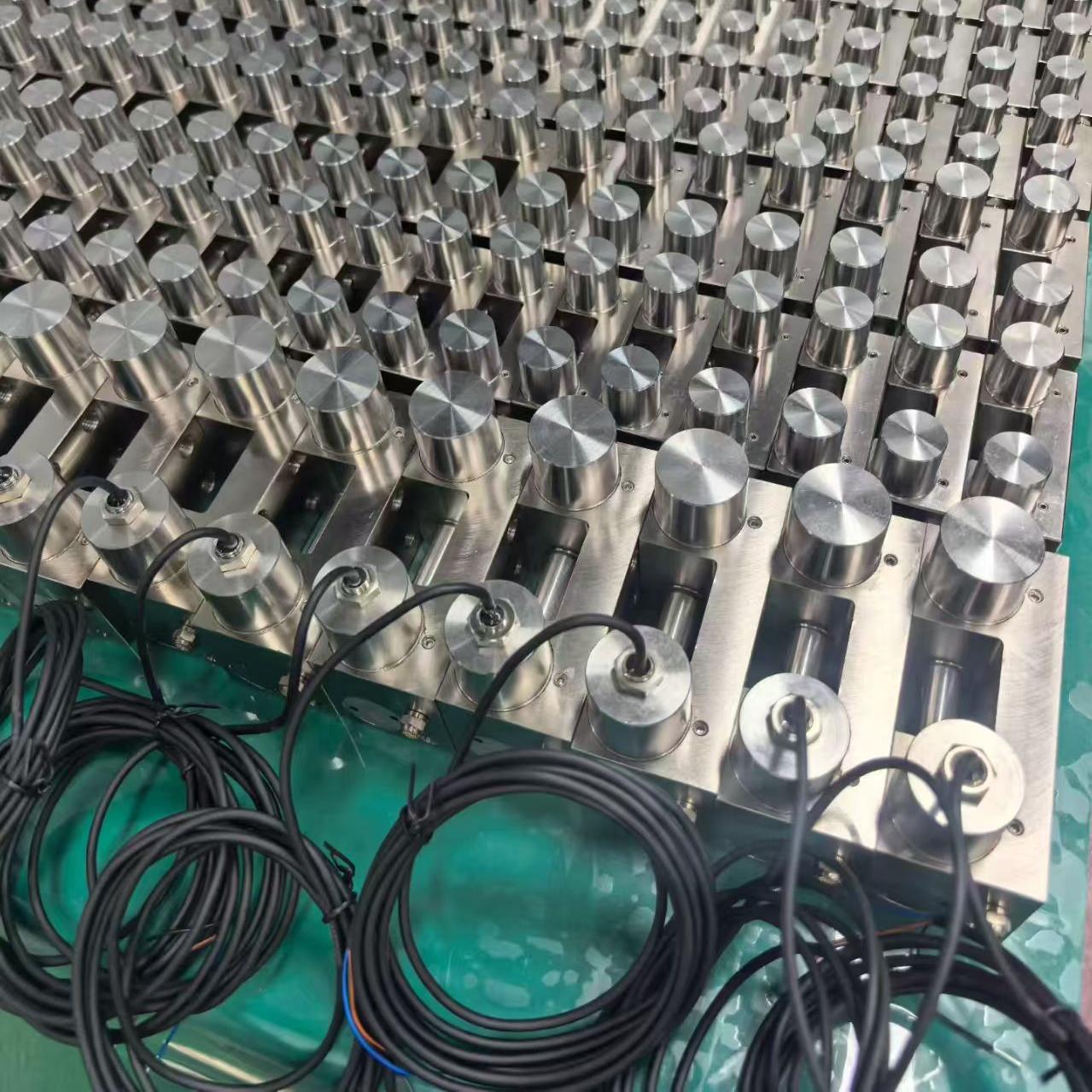

In linear motion automation systems,precision machine tools and heavy-duty processing equipment,linear guide clamping elements(also known as linear guide locks)are core components for precise slide positioning,rigidity reinforcement,emergency braking and safety self-locking.The accuracy of component selection directly determines equipment positioning precision,processing stability and operational safety.

Confirm linear rail body parameters (primary prerequisite for model selection)

The linear guide clamp is mounted directly onto the linear rail to perform locking.The linear rail specification must be an exact match;otherwise,assembly failure,clamping offset,locking slippage and other malfunctions may occur.

1.Confirm rail type: Mainstream linear guides fall into two categories:ball linear guides and roller linear guides.They differ in load structure and contact dimension,and their corresponding clamping elements are non-interchangeable.It should also be noted that guides of the same size from different brands have slight differences in local profile.

2.Confirm rail size: 7,9,12,15, 20, 25, 30, 35, 45, 55 and 65mm.

3.Mounting Space Verification:Lateral and top mounting clearance is required for the clamping element.Verify whether sufficient installation margin is available inside the equipment.For confined-space applications,slender-type,single-cylinder ultra-thin structures are preferred.

Key Technical Note: Properly matched clamping elements only grip the two side working surfaces of the linear rail and will not touch the ball/roller raceway of the linear block.Correct selection and installation will not damage the original precision of rail and linear blocks,ensuring long-term precision stability of equipment.

Select drive mode

Three mainstream drive types are available for industrial clamping elements:pneumatic,hydraulic and manual,suitable for different power supply conditions,clamping frequency and load scenarios.

1.Pneumatic Rail Clamp (most widely used on the market)

Preferred for machinery equipped with compressed air supply.It delivers fast response and simple maintenance, and suits the majority of automated equipment,machine tools and inspection devices.

(1) Normally Closed Type

Working Principle:In the absence of air pressure,clamping force is generated by internal springs.When specified air pressure is applied,the spring force is overcome to open the clamp,allowing free movement of the linear guide.In the event of air loss or pressure drop, the clamp automatically returns to the locked state.

Typical Applications:

• Vertical Z-axis lifting mechanisms requiring self-locking upon air/power loss to prevent slide falling;

• Safety protection systems that require the slide to stay in position during pressure failure;

• High-safety-level scenarios including machine emergency stop locking.

(2) Normally Open Type

Working Principle: With no air pressure, the jaws remain open. Clamping is achieved only when air pressure is applied.In the event of air loss or pressure drop,the clamp releases immediately and the linear guide becomes unrestrained.

Typical Applications:

• Pure horizontal slides that only need temporary locking during machining and positioning,without self-locking protection for pressure failure;

• Heavy cutting machine tools,where clamping reinforces system rigidity to suppress machining vibration and improve accuracy;

• High-frequency clamping scenarios where forced locking upon pressure loss is forbidden to avoid mechanism jamming damage.

Selection Warning: Never use this type alone for vertical Z-axis anti-fall applications.Air supply failure will cause the slide to drop directly,leading to equipment damage and safety accidents.It is prohibited without additional safety backup.

2.Hydraulic Rail Clamp

Capable of generating higher clamping force.It is mainly used for heavy-duty machine tools and large heavy-load mechanisms. A dedicated hydraulic power unit is required, leading to higher overall costs.

3.Manual Rail Clamp

No air or hydraulic supply required.Clamping and release are operated manually via a handle.It is suitable for low-cycle clamping applications,jigs & fixtures and equipment retrofits,and not intended for continuous automated control.

Holding Force Calculation & Safety Margin Reservation

The marked holding force of samples refers to the ideal value obtained under standard laboratory conditions.Actual working conditions are subject to air pressure fluctuation,guideway surface condition,vibration and impact.It is prohibited to select the model by equating the equipment load directly to the sample holding force.

Holding Force: The maximum external force that a clamp can resist, unit: N (Newton).

Verification of Air Source Parameters and Electrical Options

1.Verify the operating air pressure and opening pressure of the clamp,ensuring the on-site supply air pressure falls within the product specified range.Keep air hoses as short as possible;install quick exhaust valves when necessary to guarantee locking and releasing response speed.

2.Position detection sensors are available as an option for certain models to feedback the clamped/released status of the clamp.These sensors can connect to PLC for logic interlock in automated equipment to prevent unintended operation.

Key Selection Pitfalls to Avoid

1.Do not only check dimensions while ignoring normally open/normally closed logic.Numerous equipment failures stem from confusion between their default states during product selection.

2.Using normally closed type for vertical axes does not guarantee absolute safety.Comprehensive equipment safety design is still required,as springs will experience performance degradation after long-term cyclic operation.

3.Mounting bolts shall be high-strength bolts of Class 8.8 or higher and tightened to the torque specified in the datasheet. Factory-adjusted screws must not be altered without authorization,as this will directly change clamping performance.

4.For environments with heavy dust and cutting fluid, verify the product protection rating first. Add protective measures if necessary.

Selection Self-Check List

1.Has the guide rail brand,series and specification been confirmed?

2.Is the mechanism horizontal or vertical? Does it require air-loss self-locking safety protection?

3.Determine actuation type: Pneumatic / Hydraulic / Manual

4.Select normally open or normally closed type

5.Calculate load,verify holding force and confirm safety factor

6.Check whether the equipment installation space is sufficient

7.Confirm air supply pressure and whether position feedback sensor is required
