MCP2501H

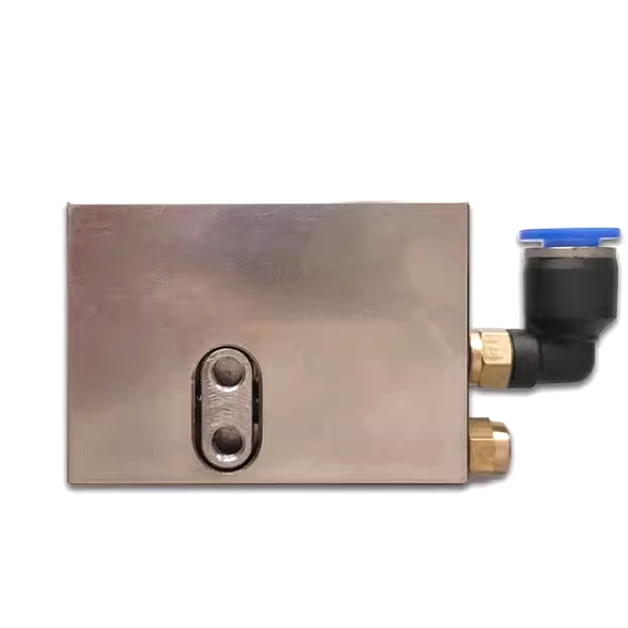

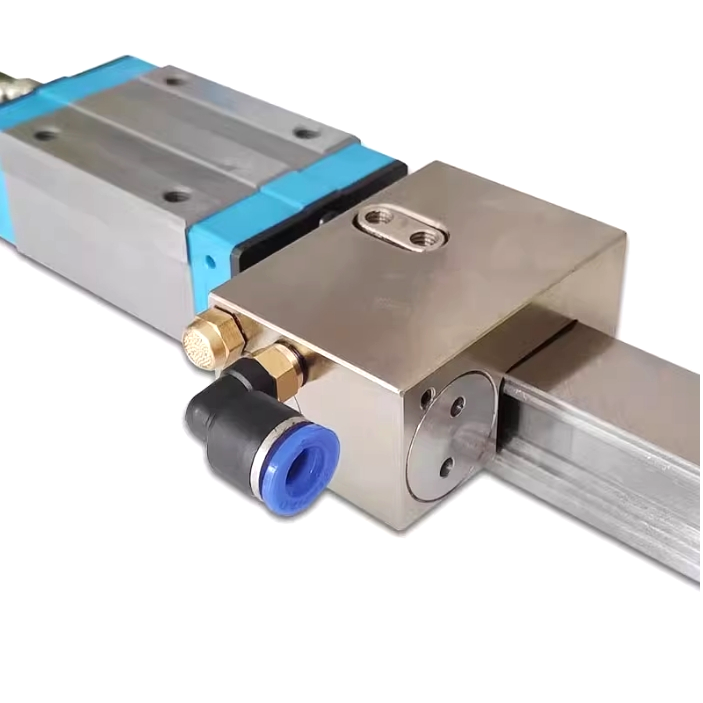

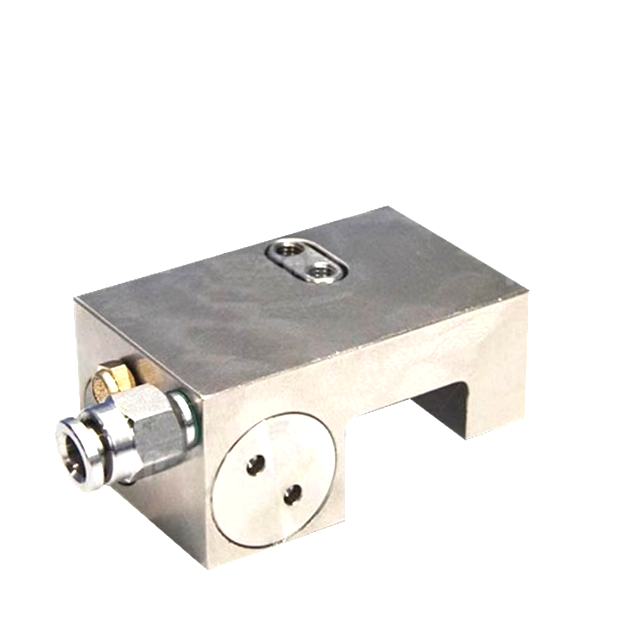

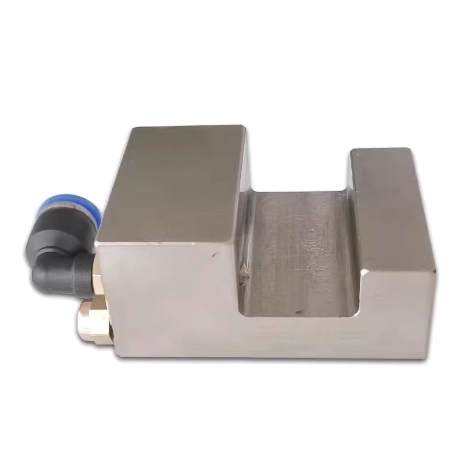

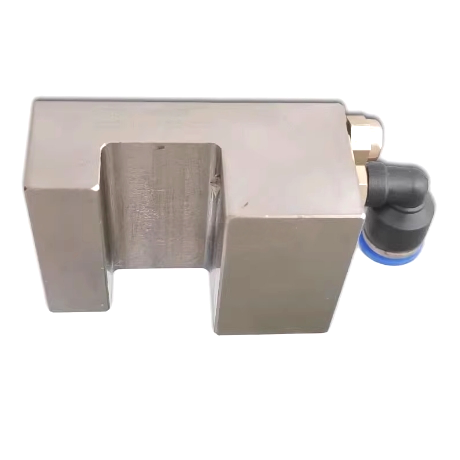

MCP2501H Pneumatic Linear Rail Clamping Braking Element
This MCP2501H clamp realizes clamping state when air is supplied and is suitable for 25mm ball linear guides.It is featured with compact structure, strong holding force and easy installation.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 850N |
| Open air pressure | 0.2~0.8Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
