MCPS0901A

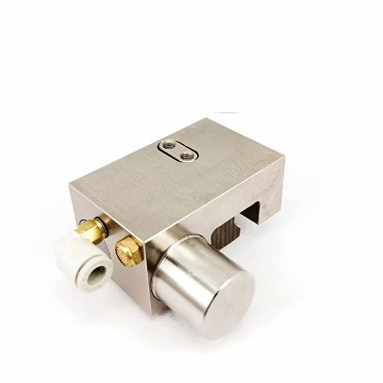

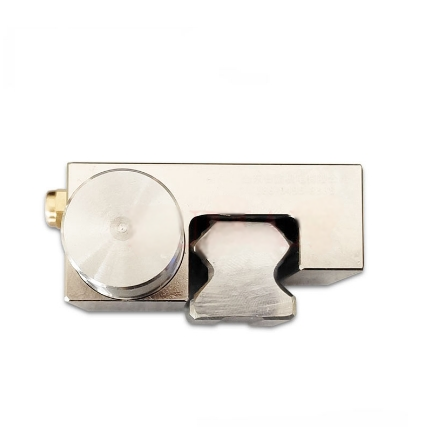

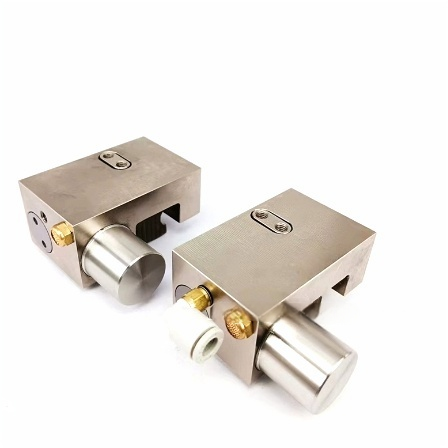

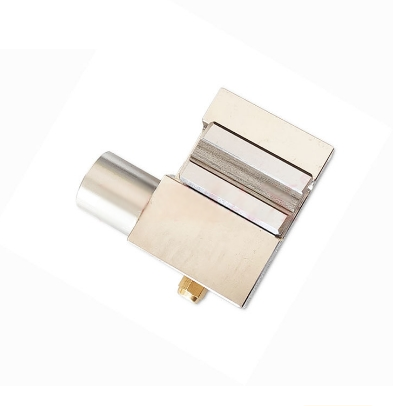

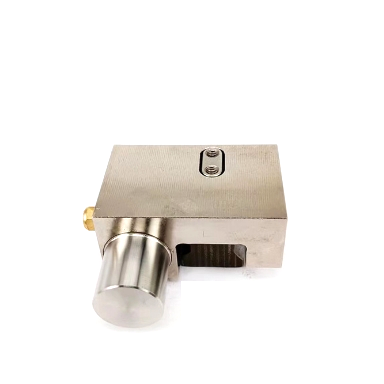

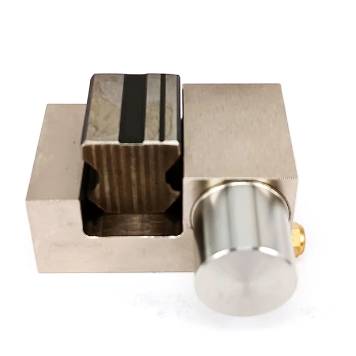

MCPS0901A Single Cylinder Pneumatic Clamping Braking Element
This clamping element realizes clamping by spring energy storage acting on the wedge block.The MCPS0901A clamp is easy to install and is directly connected to the table without changing the table dimensions.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 9mm |
| Rated holding force(N) | 80~200N |
| Open air pressure | 0.55~0.8Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
