MCPS2501H

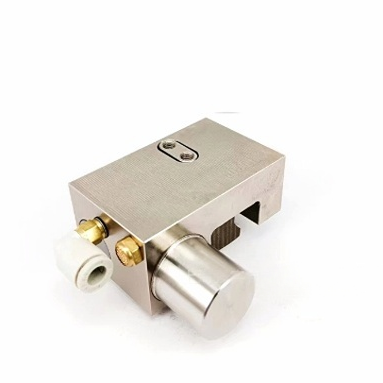

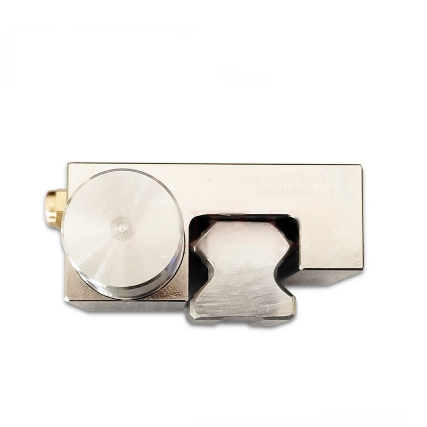

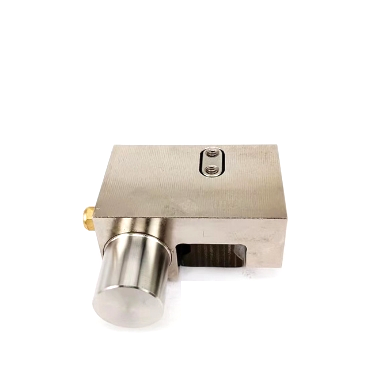

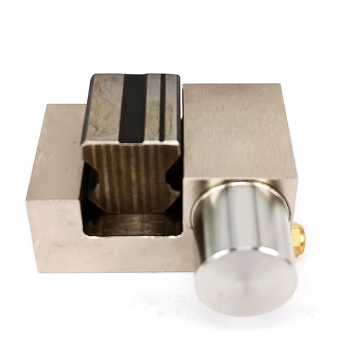

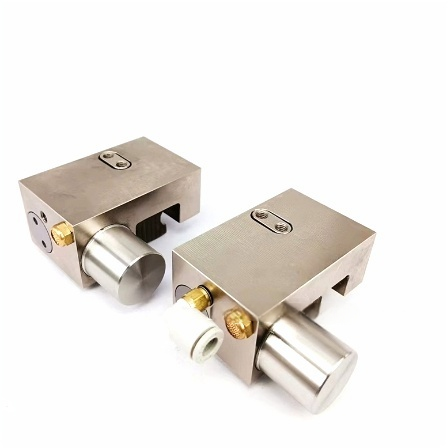

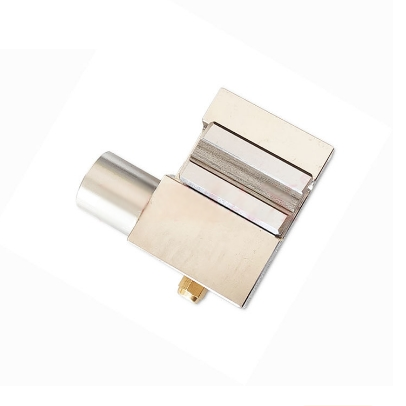

MCPS2501H Linear Guide Pneumatic Clamping Braking Element
MCPS2501H clamping element realizes clamping by spring energy storage acting on the wedge block.It utilizes air pressure to release the clamp,and is divided into standard series and low-pressure series according to different opening pressures.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 650N/1050N(standard series) 500N/750N (Low pressure series) |
| Open air pressure | 0.55~0.8Mpa(standard series) 0.4~0.8Mpa(Low pressure series) |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
