MKR4000A

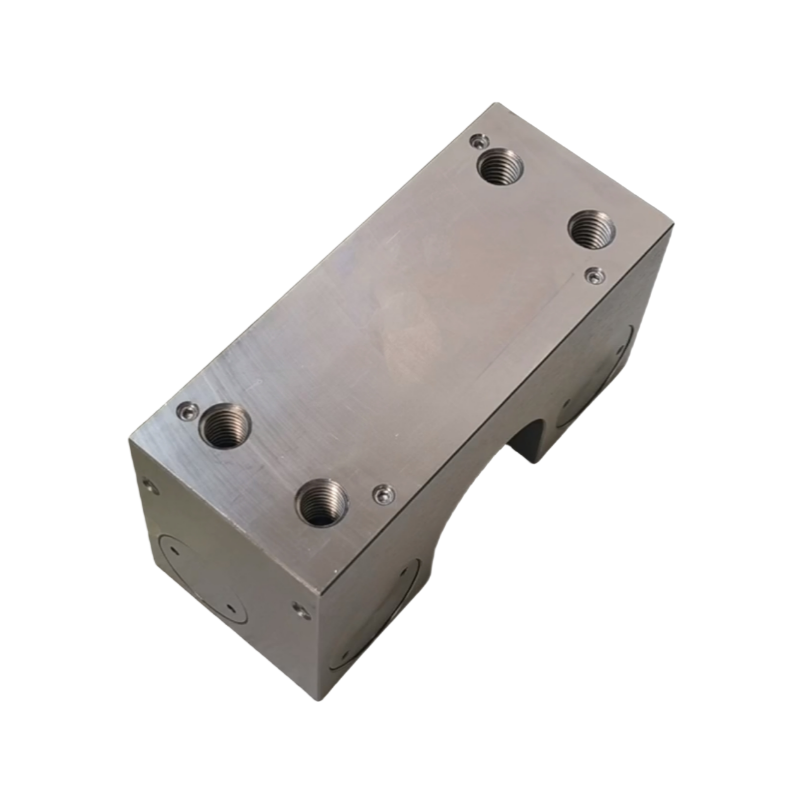

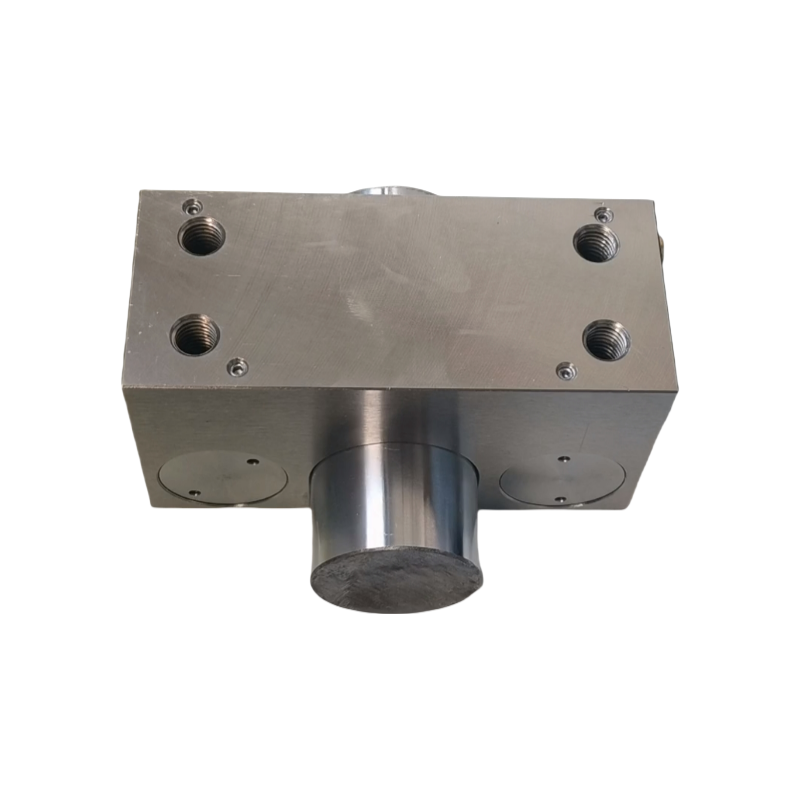

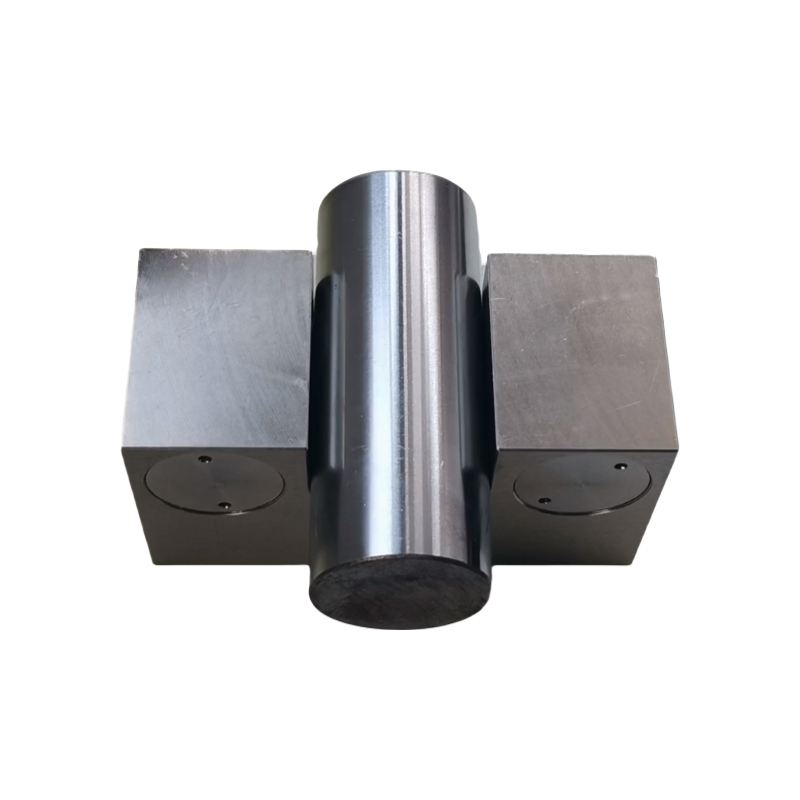

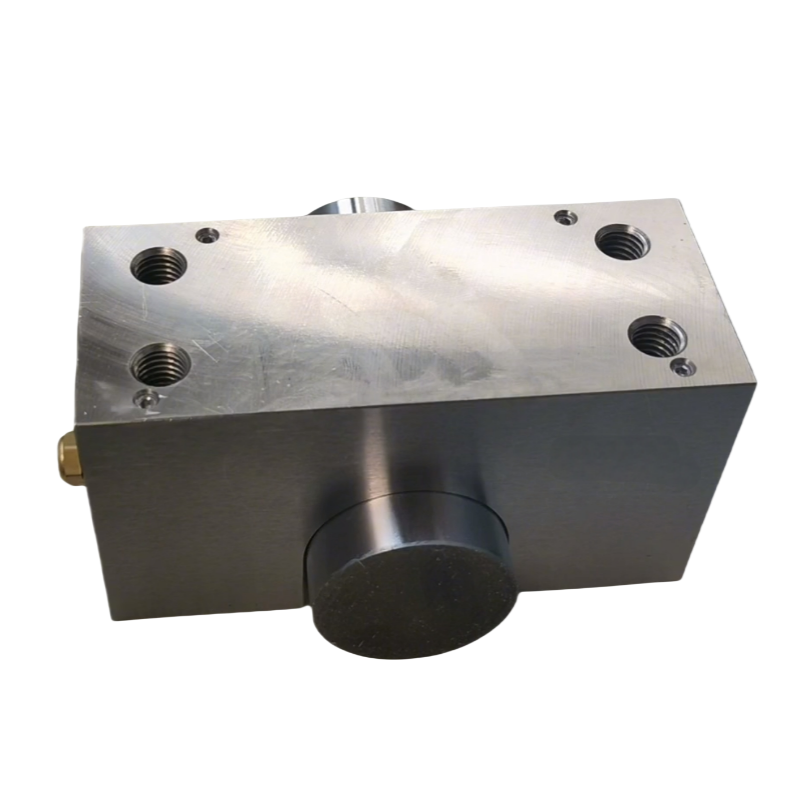

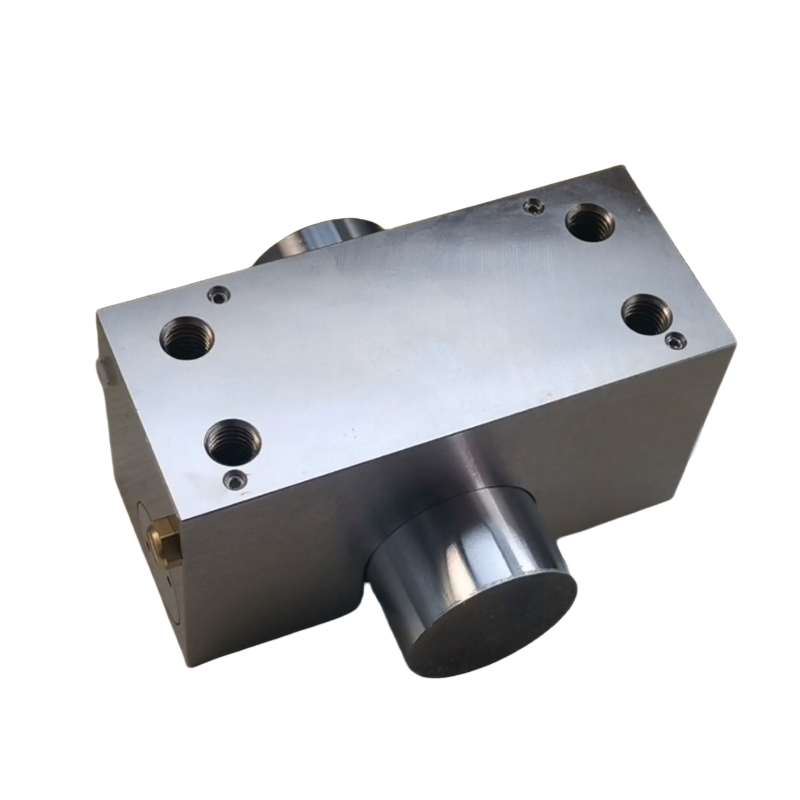

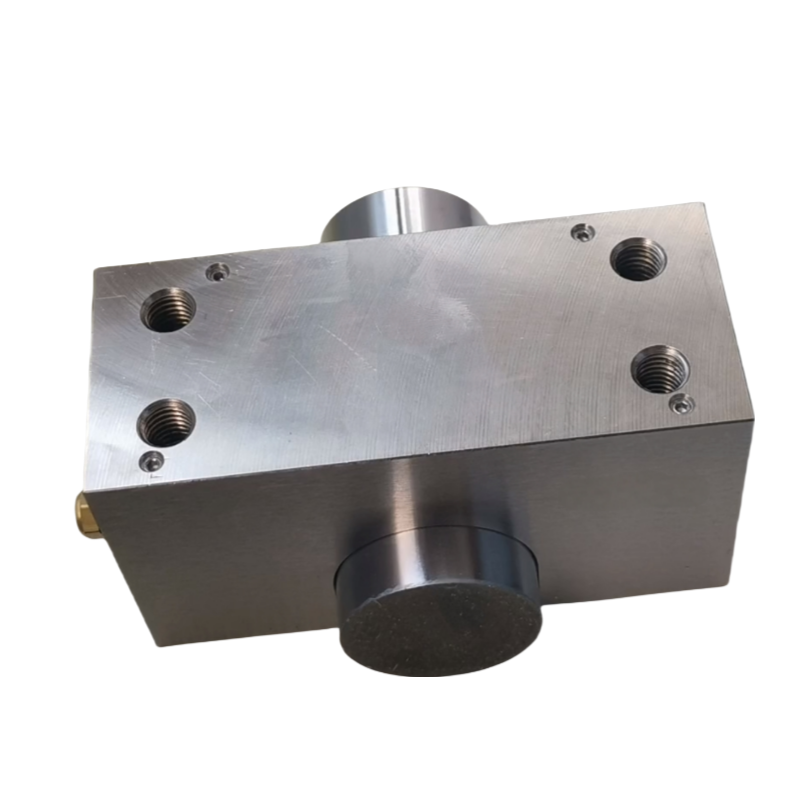

MKR4000A Pneumatic Shaft Clamping Element
This is a pneumatic normally open clamp for 40mm diameter linear shafts.Through the principle of wedge block force expansion,air pressure is used to achieve clamping.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 40mm |
| Rated holding force(N) | 1850N |
| Working pressure | 0.2~0.8Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
MKR4000A Pneumatic Shaft Clamping Element
This is a pneumatic normally open clamp for 40mm diameter linear shafts.Through the principle of wedge block force expansion,air pressure is used to achieve clamping.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 40mm |
| Rated holding force(N) | 1850N |
| Working pressure | 0.2~0.8Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
