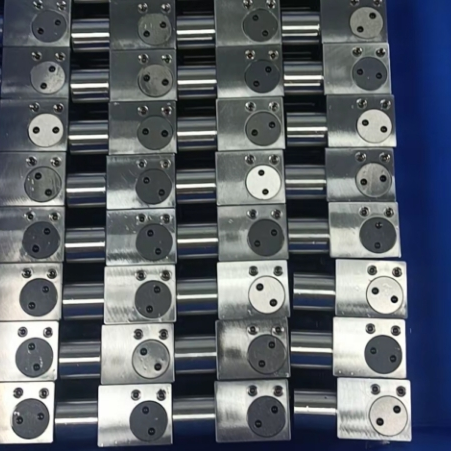

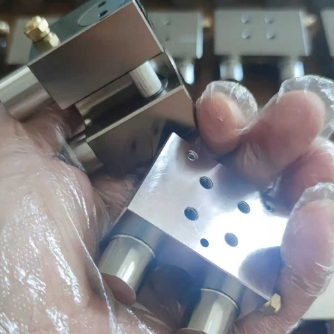

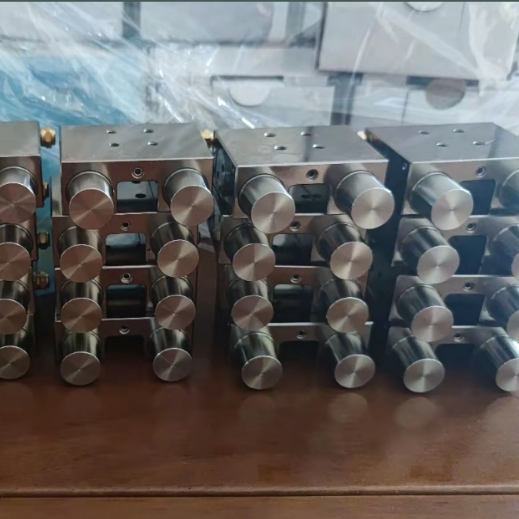

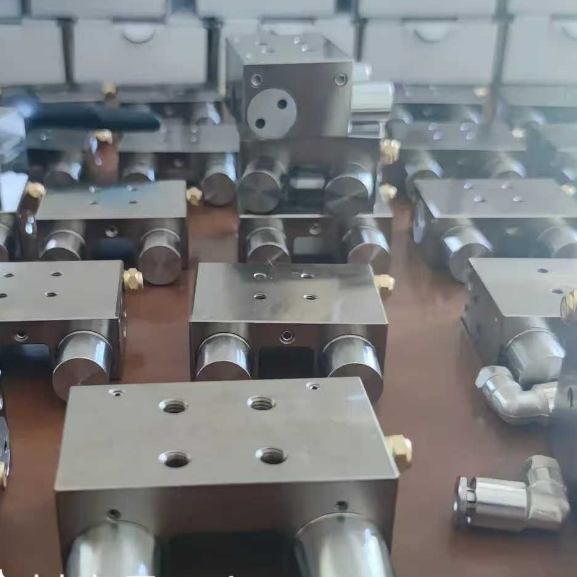

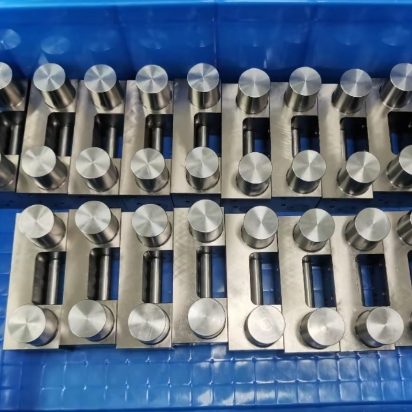

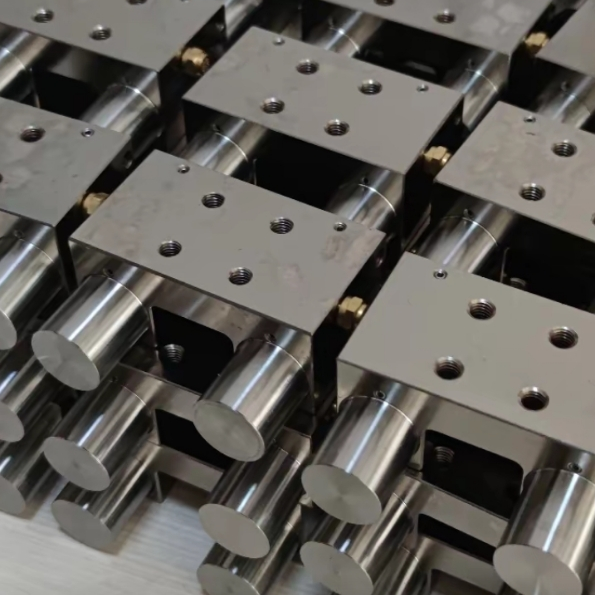

MKS3501A Linear Guide Clamp Gripper
The Zimmer MKS3501A pneumatic normally closed linear guide clamp gripper is engineered for 35mm linear guide systems,providing high holding force to secure positions,dampen vibrations,and boost structural rigidity.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 35mm |
| Rated holding force(N) | 1250/3250N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
