MKS3501A

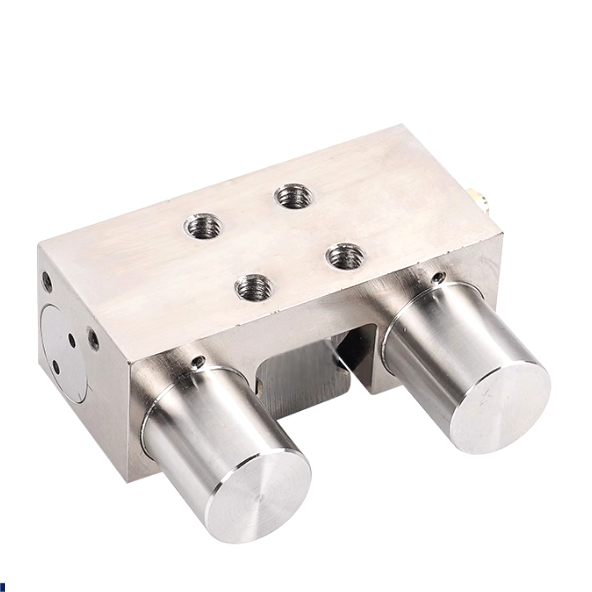

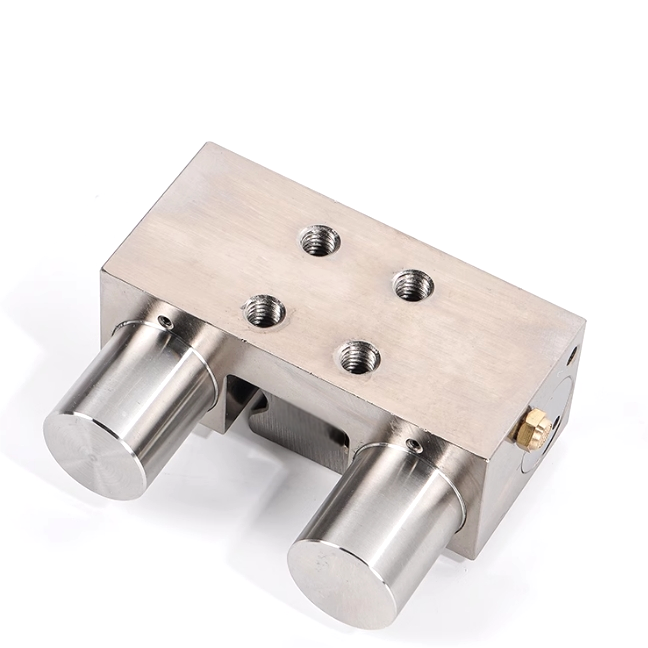

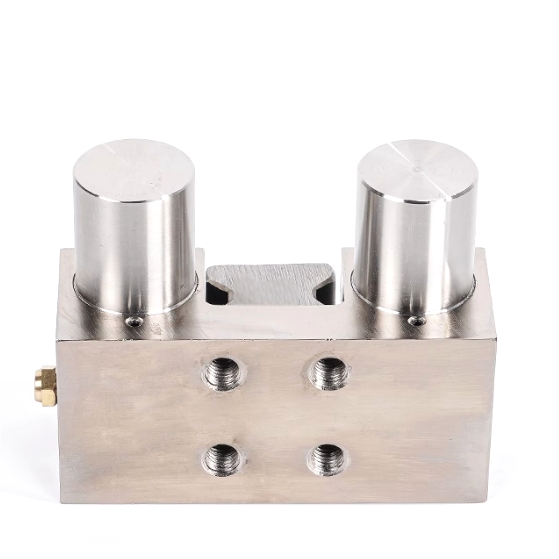

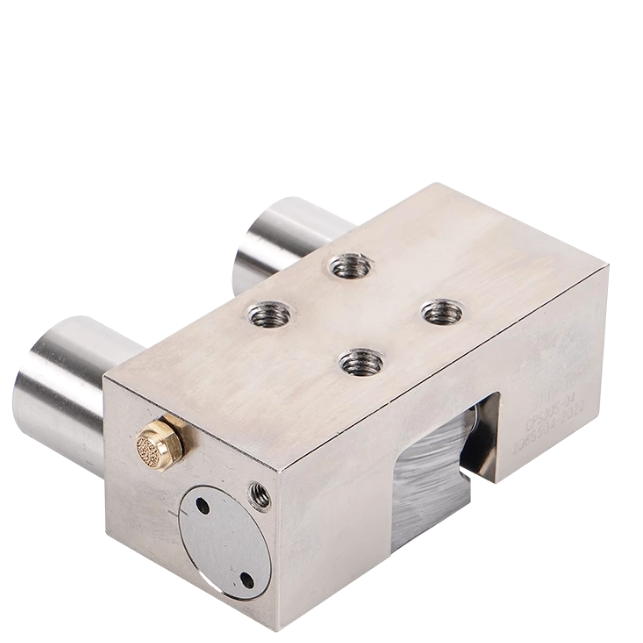

MKS3501A Linear Guide Pneumatic Clamping Element
This is a pneumatic normally closed clamp for 35mm linear guides.When there is air pressure,MKS3501A clamping element is released; when there is no air pressure,the linear guide is clamped by spring force.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 35mm |
| Rated holding force(N) | 1250/3250N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
