MKS5501A

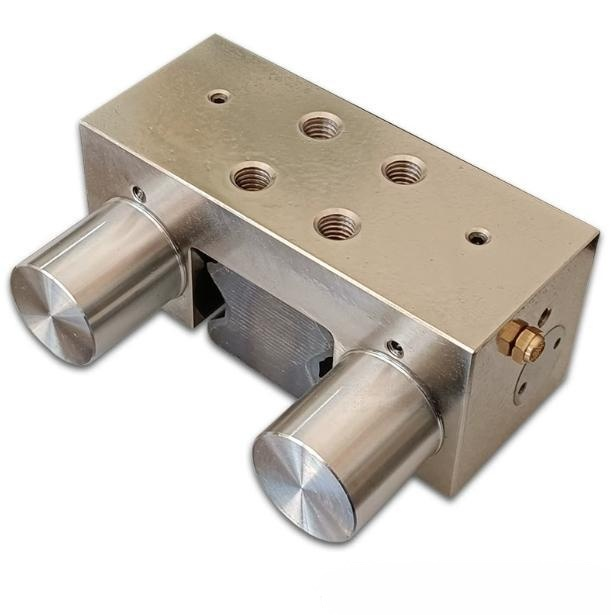

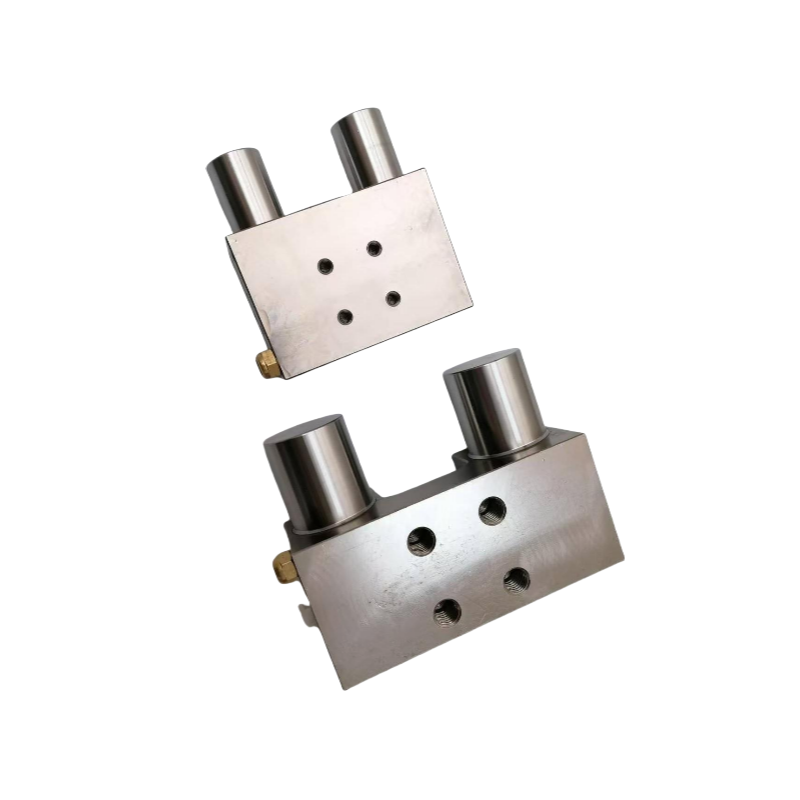

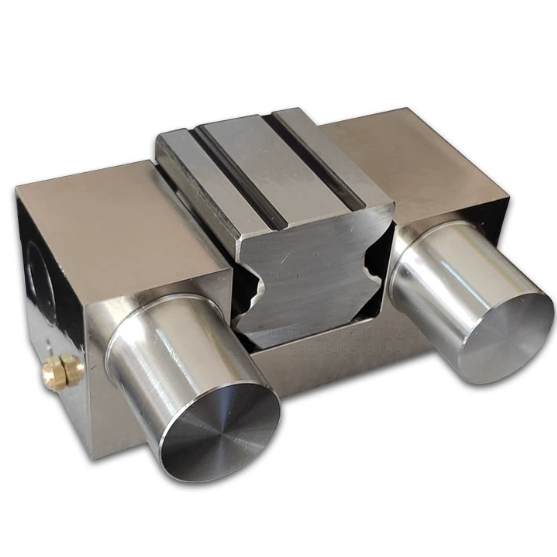

MKS5501A Pneumatic Linear Guide Clamping And Braking Element
This clamping element is suitable for 55mm ball linear guide.Depending on the holding force requirements of the MKS5501A mechanism,standard connections or pressurized connections can be used.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 55mm |
| Rated holding force(N) | 1450/3300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |

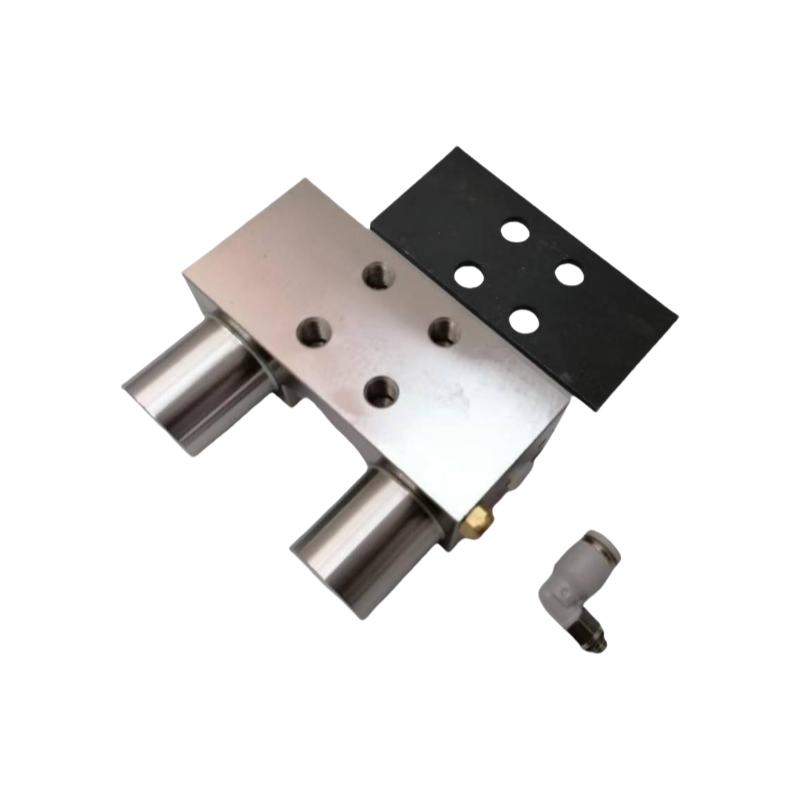

Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
