LMK30B

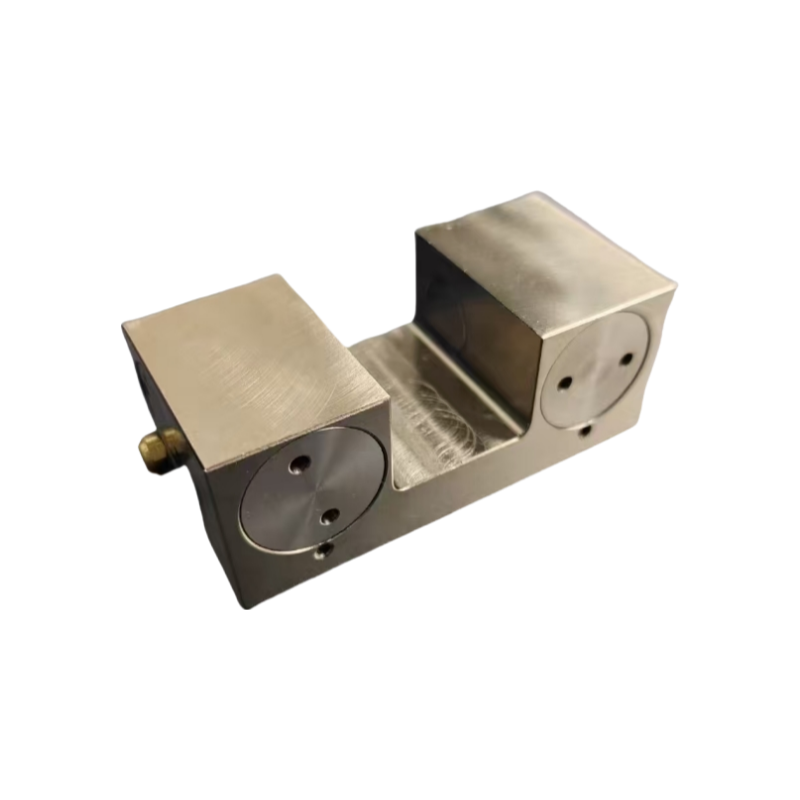

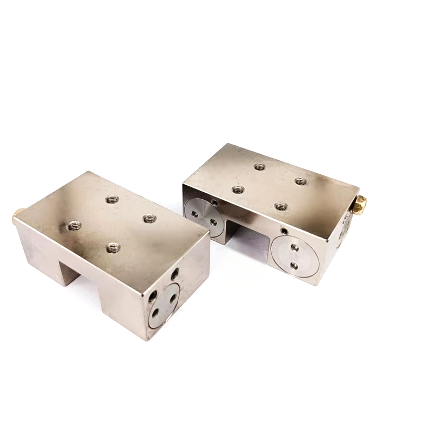

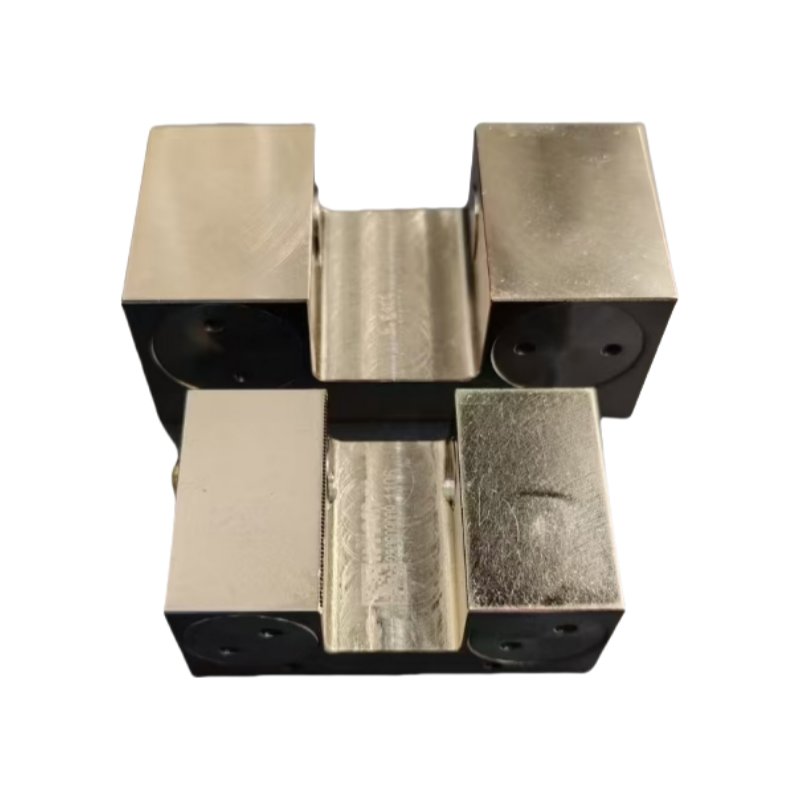

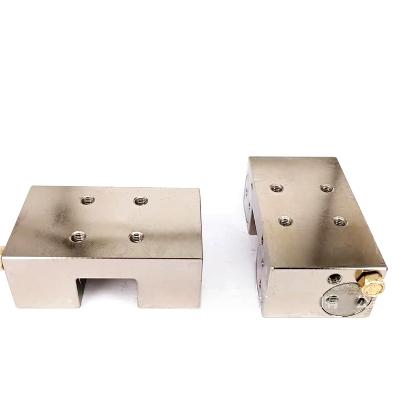

Pneumatic Normally Open 30mm Linear Rail Clamping Element
This pneumatic normally open clamp enables precision positioning.It is suitable for 30mm linear guides and is very easy to install.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 30mm |
| Rated holding force(N) | 1750N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!
