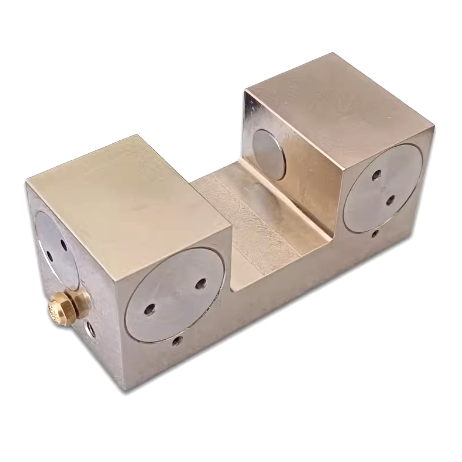

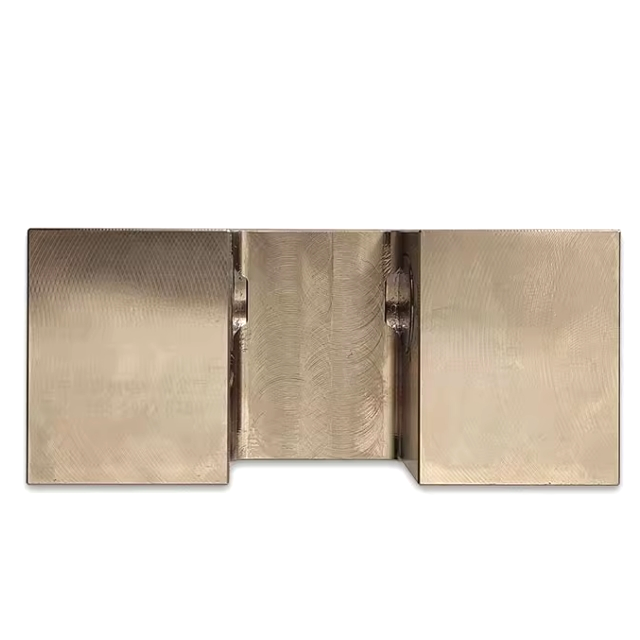

Pneumatic Normally Open Clamp Brake for 15mm HIWIN Linear Guide
This Pneumatic Normally Open Rail Clamp is engineered for seamless compatibility with 15mm linear guide systems,offering a high-performance alternative to Zimmer MK series pneumatic rail clamps.Designed for precision motion control,it combines robust clamping force with a compact footprint,ensuring reliable integration into industrial automation and machinery setups without requiring system redesign.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 15mm |
| Rated holding force(N) | 650N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation,depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Key Features
Wedge Block Force Amplification Technology
Utilizing a wedge mechanism to amplify input force,this clamp converts pneumatic pressure into powerful,consistent clamping action.The innovative design ensures efficient energy transfer while minimizing wear.
High Holding Force in Compact Design
Engineered for space-constrained applications,its compact structure delivers exceptional clamping strength without compromising on stability,ideal for precision machinery and automation systems.
Rigid Impact-Free Clamping
The advanced wedge structure eliminates sudden rigid impacts during clamping,protecting both the guide rails and the clamp mechanism from shock damage and extending service life.
Direct Worktable Mounting
Simplify installation with a hassle-free design that attaches directly to existing worktables.No modifications to table dimensions or guide rail layouts are required,reducing downtime and retrofitting costs.
Precision Positioning for Linear Guides
Achieve micron-level repeatability in positioning tasks.The clamp's optimized contact surfaces and controlled force distribution ensure secure,vibration-free locking of linear motion systems.
Download LMK15B Pneumatic Normally Open Clamp Dimension.png
