LMK35B

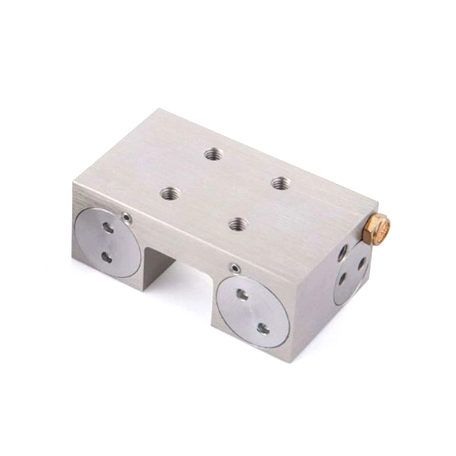

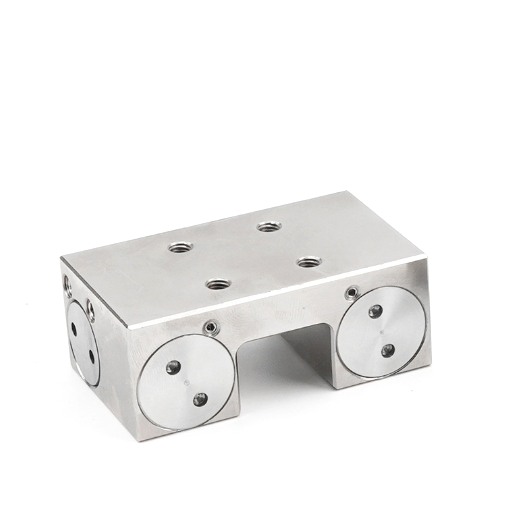

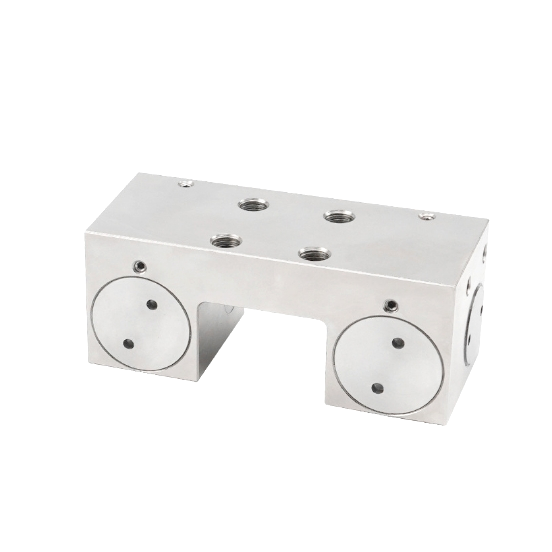

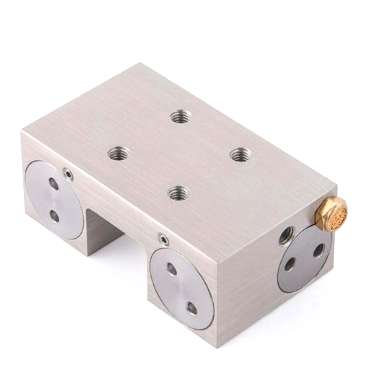

Replace Zimmer Pneumatic Gripper Clamping for 35mm Linear Guide
This pneumatic normally open clamp avoids rigid impacts during clamping. It is suitable for 35mm linear guides and is very easy to install.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 35mm |
| Rated holding force(N) | 2000N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Pneumatic Clamping Element Dimension
Contact our sales to get a quote!
