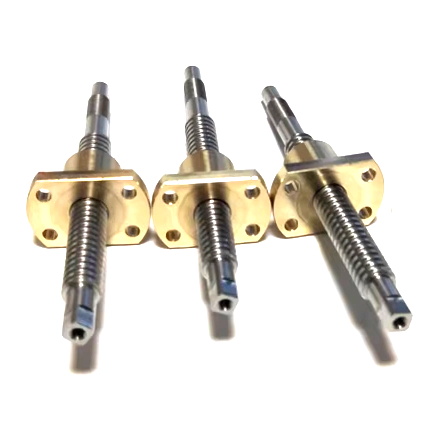

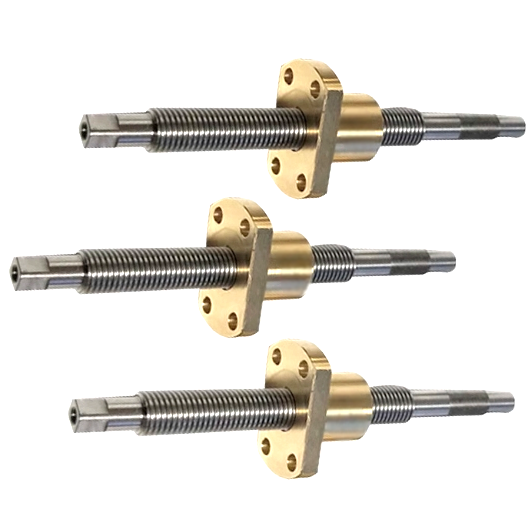

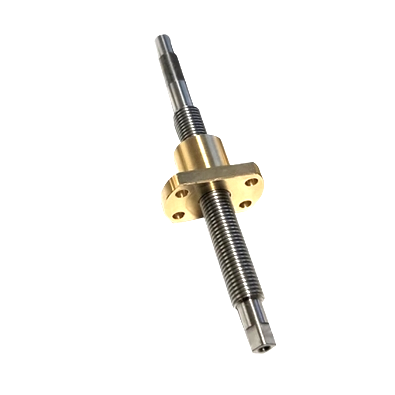

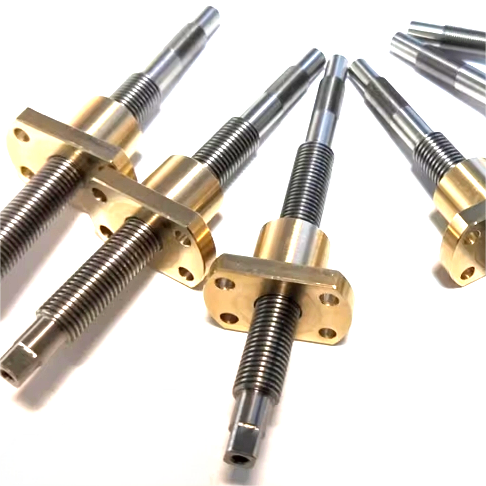

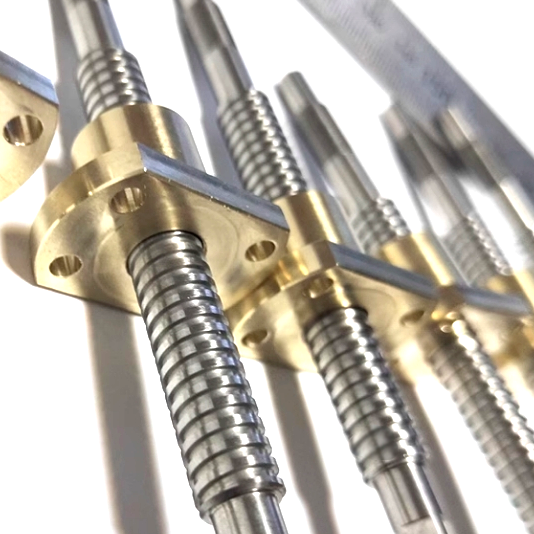

Tr10x3 Cold Rolling Trapezoidal Lead Screw with Flange Nut

Model Number: Diameter 10mm,lead 3mm(pitch 3mm )

Lead Time and MOQ : lead time 12~14days,MOQ 1 pc
Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings


Availability:



Inquire Add to Basket

Product Description

Tr10x3 Cold Rolling Trapezoidal Lead Screw with Flange Nut

This trapezoidal screw has a diameter of 10mm,a lead of 3mm,and a pitch of 3mm.The Tr10x3 lead screw is cold rolled,has a perfect surface finish,and runs extremely smooth.The screw is equipped with a flange nut for uniform force and easy installation.

Diameter	10mm
Lead	3mm
Pitch	3mm
Number of starts	1
Screw shaft end machining and length	According to your requirement or drawing
Nut shape and dimension	According to your needs
Thread Direction	Right hand thread/left hand thread/right and left hand thread
Screw material	S45C/ SS303/SS304/SS316
Nut material	Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C
Popular surface coatings	Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.

Tr10x3 lead screw advantages:

Cost-Effective:30% cost savings.
Fast Delivery: Within 12 days.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
Cold-Rolled Precision Threads:Manufactured via cold-rolling process for ultra-smooth,burr-free threads and tight tolerances.
