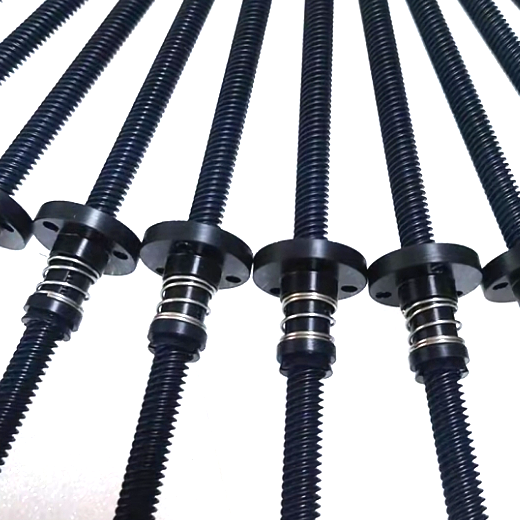

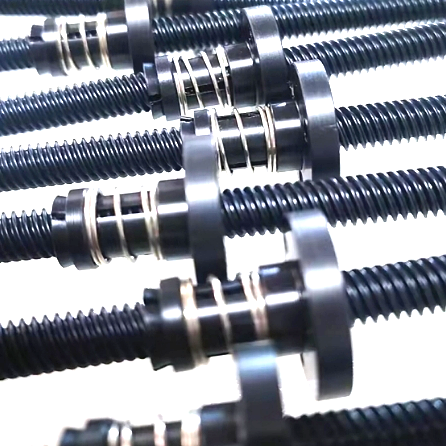

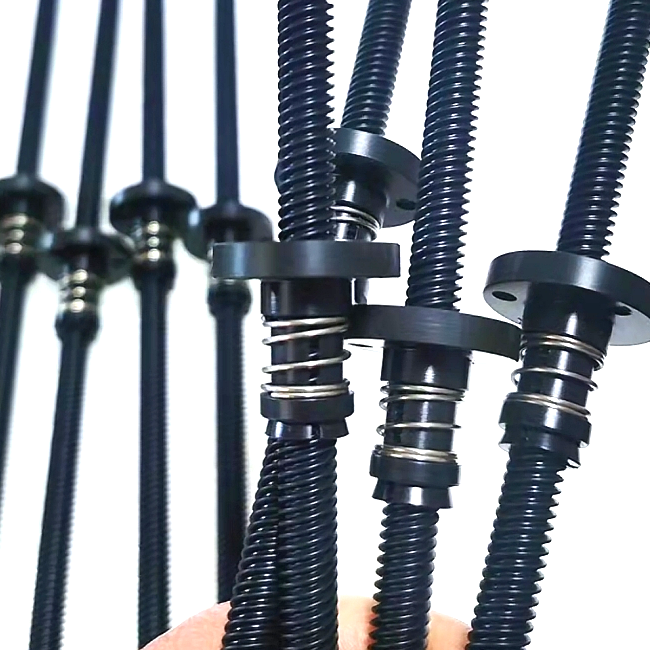

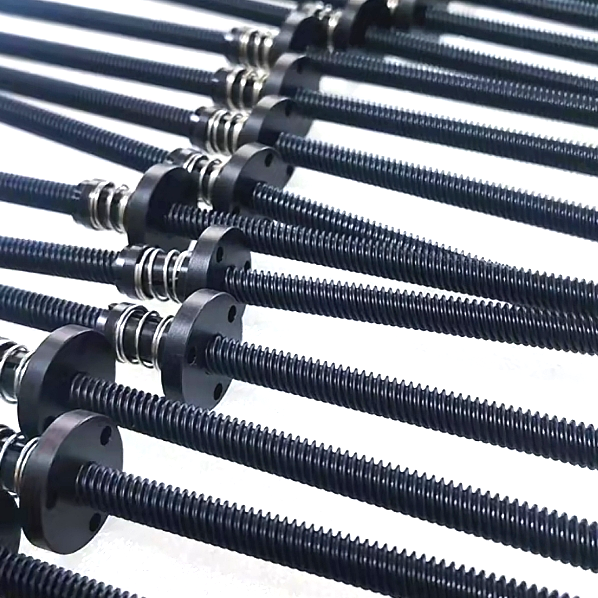

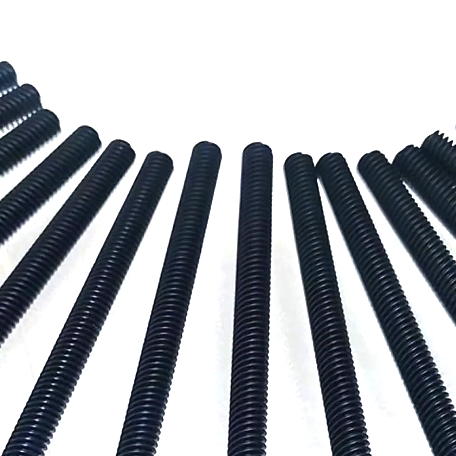

With a 12mm diameter,10mm lead (2.5mm pitch,4-start thread design),this Tr12x10 lead screw assembly is optimized for high-load and high-speed linear transmission.Its multi-start thread structure enables rapid movement while maintaining compact dimensions and reducing frictional losses.Customizable length,material,shaft end processing and nut size.
Diameter | 12mm |
Lead | 10mm |
Pitch | 2.5mm |
| Number of starts | 4 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Core Advantages:
(1)Smooth Operation,Low Noise
Precision rolling technology guarantees a smooth thread surface(Ra ≤ 0.8μm).Combined with self-lubricating engineering plastic nuts or coated metal nuts,it achieves near-silent,seamless motion.
(2)Extended Service Life
The Tr12x10 lead screw is made of high-quality carbon steel or stainless steel,hardened through quenching and tempering,with optional surface treatments to enhance wear and corrosion resistance.
Nuts are customizable for load requirements:metal nuts for high-rigidity applications,polymer nuts for low-friction,maintenance-free environments,improving lifespan by over 50%.
(3)Full Customization Service
Flexible Dimensions:Supports non-standard lengths,shaft-end machining(flattening,drilling,stepped shafts,etc.)to meet diverse installation needs.
Material Options:Lead screw materials:S45C,SS303,SS304,SS316,adaptable to various working conditions.Nut materials:POM,PEEK,Brass,Bronze,Nylon,stainless steel,S45C.
Surface Treatments:Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.
Contact us to get a quote!
