5mm Diameter Trapezoidal Lead Screws

Our 5mm diameter trapezoidal lead screws stand out as critical components for applications demanding compact design, high accuracy, and reliable performance. Our lead screws are tailored to meet specific operational requirements, ensuring seamless integration into your designs. With a focus on customization, we offer flexibility in shaft end machining, material selection, surface coatings, and nut configurations to optimize performance in environments where space, weight, and corrosion resistance are paramount.

T5 Trapezoidal Lead Screw Available Models

The following models are commonly available 5mm diameter lead screw types on the market. For other models not listed here, please consult our sales team.
Tr5x0.8 lead screw: diameter 5mm,lead 0.8mm,pitch 0.8mm.

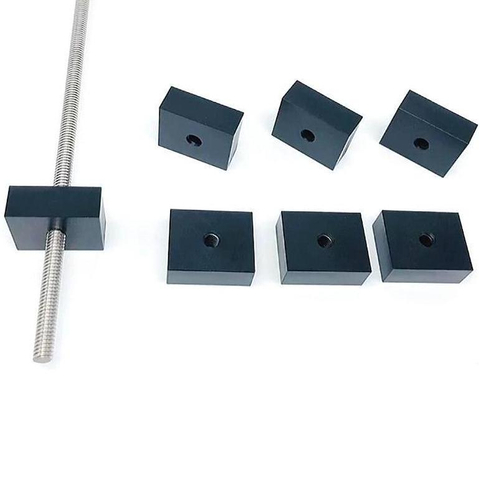

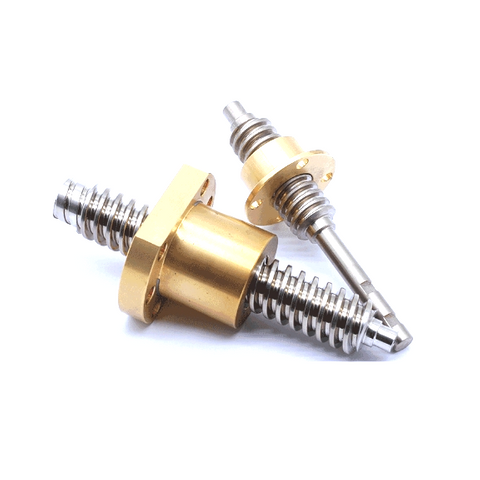

Tr5x1 lead screw: diameter 5mm,lead 1mm,pitch 1mm.

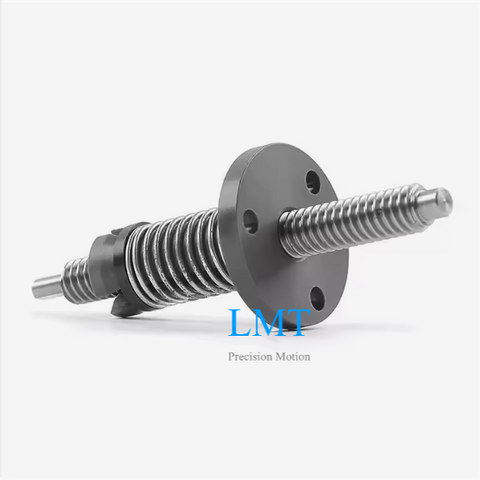

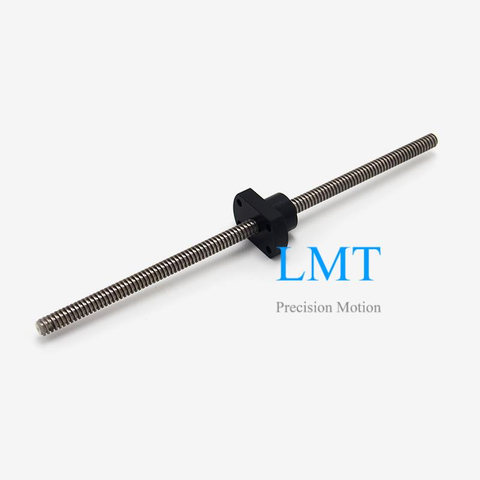

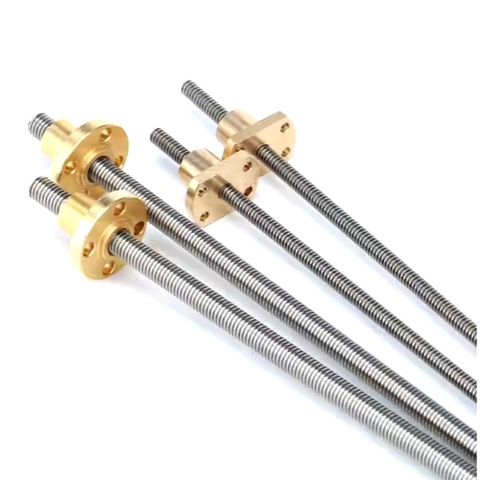

Tr5x2 lead screw:diameter 5mm,lead 2mm,pitch 1mm.

Tr5x2 lead screw:diameter 5mm,lead 2mm,pitch 2mm.

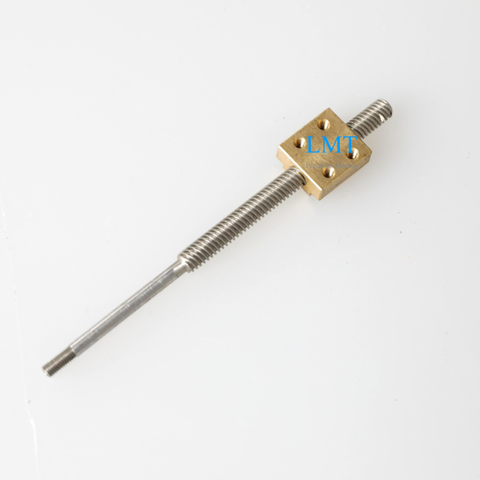

Tr5x4 lead screw:diameter 5mm,lead 4mm,pitch 1mm.

Tr5x4.8 lead screw:diameter 5mm,lead 4.8mm,pitch 0.6mm.

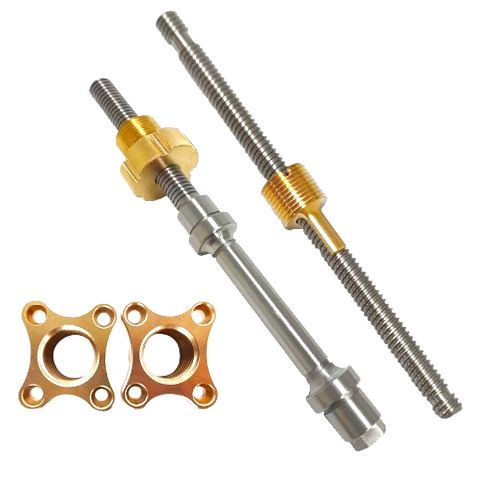

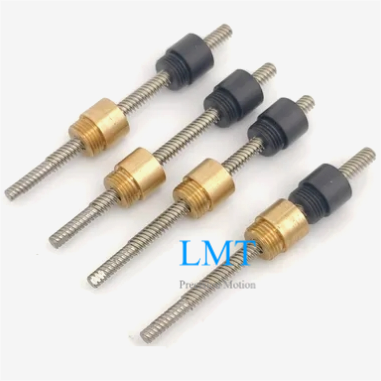

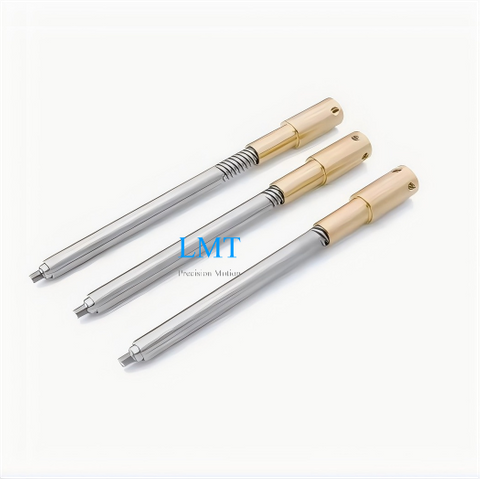

Tr5x5 lead screw:diameter 5mm,lead 5mm,pitch 1.25mm.

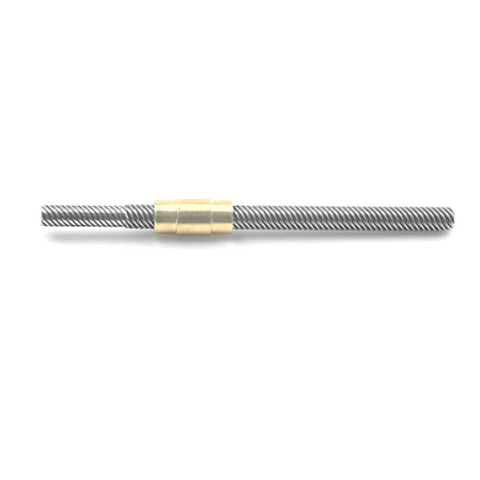

Tr5x6 lead screw:diameter 5mm,lead 6mm,pitch 1mm.

Tr5x7.5 lead screw:diameter 5mm,lead 7.5mm,pitch 1.5mm.

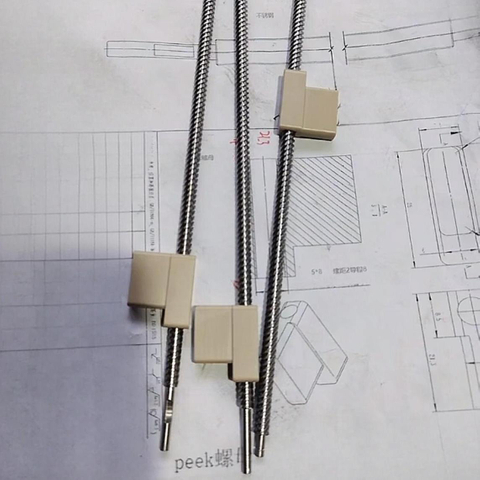

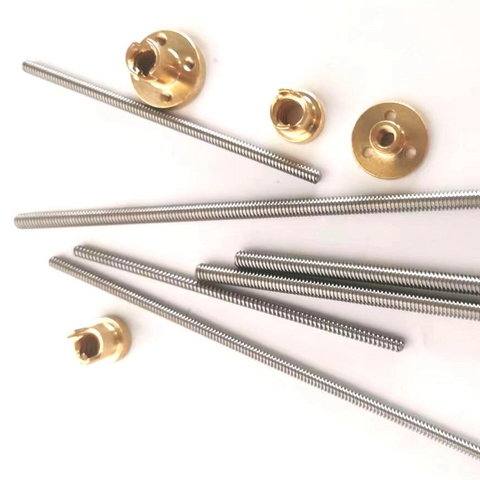

Tr5x8 lead screw:diameter 5mm,lead 8mm,pitch 0.6mm.

Tr5x8 lead screw:diameter 5mm,lead 8mm,pitch 2mm.

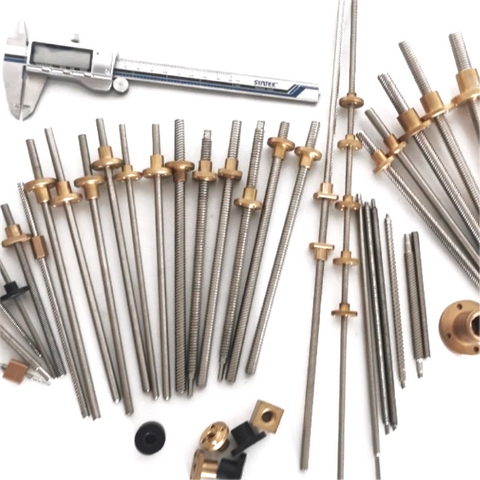

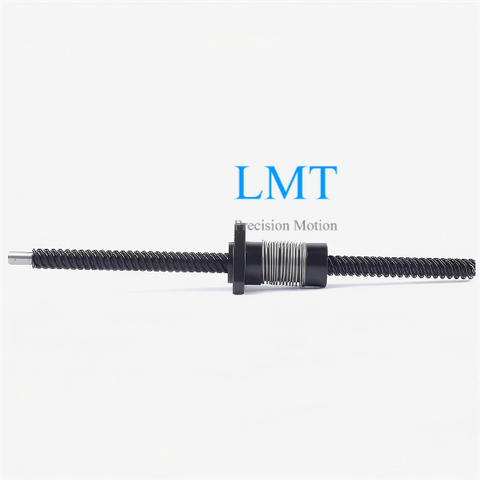

Tr5x10 lead screw:diameter 5mm,lead 10mm,pitch 2.5mm.

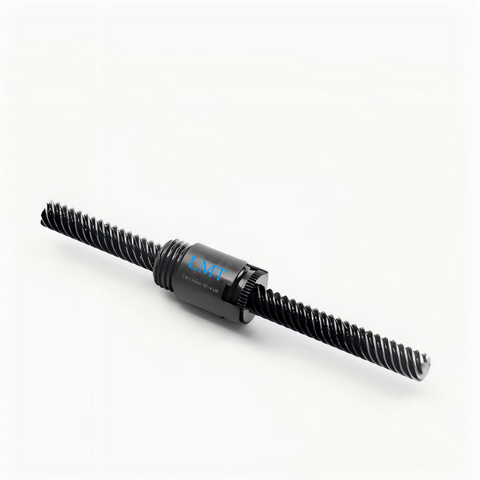

Tr5x15 lead screw:diameter 5mm,lead 15mm,pitch 2.5mm.

Tr5x20 lead screw:diameter 5mm,lead 20mm,pitch 1.25mm.

5mm Diameter Trapezoidal Lead Screw Specification

Diameter: 5mm

Screw thread direction: RH/LH/RL
Lead screw length: Produced according to your requirements
Screw shaft end machining: Processing according to your requirements
Nut shape and dimension:Customized production according to your needs
Popular screw materials: S45C/ SS303/SS304/SS316/Brass/Aluminum/40Cr
Popular nut materials: Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C/Aluminum
Popular surface coatings: Teflon coating/nickel plating/tungsten disulfide/black chrome plating/molybdenum disulfide/DLC coating

5mm Diameter Trapezoidal Lead Screw Advantages

MOQ：one pc.

Fast delivery:within 12days.

Cost-effective: Helps your project save 20% to 50% in cost.

Conform to international standards:All T5 lead screws and nuts comply with ROHS and CE standards.

Support customization: Lead screws and nuts can be customized according to your requirements and drawings.

Proven Reliability: Rigorous quality control ensures every lead screw meets our high standards for performance.

High Durability: Precision manufacturing and material selection enhance wear resistance, ensuring long service life even under continuous duty.
Compact and Lightweight: The 5mm diameter is ideal for space-constrained applications, reducing overall system weight without compromising strength.

Smooth and Quiet Operation: Meticulously rolled or cut threads ensure minimal vibration and noise,making them suitable for sensitive environments like medical devices and laboratory equipment.

Tr5 Lead Screw Common Applications

Our 5mm trapezoidal lead screws are suited for a wide range of industries:
Optical Systems: Focusing mechanisms in lenses, microscopes, and laser equipment.
Medical Devices: Drug delivery pumps, surgical robots, and lab automation equipment.
Robotics & Automation: Compact actuators for robotic arms and miniature linear stages.
Aerospace & Defense: Guidance systems and miniature actuation where size and weight are paramount.

Custom 5mm Diameter Trapezoidal Lead Screws & Nuts | Made to Your Specifications

We specialize in providing customized trapezoidal lead screws and nuts tailored to client requirements. Both 5mm diameter lead screws and nuts can be manufactured according to your needs and drawings.

Common nut materials include: Brass, Bronze, POM, PEEK, Nylon, Stainless Steel, S45C, and Aluminum. Lead screw materials include: S45C, SS303, SS304, SS316, Aluminum, and 40Cr. Available surface coatings include: Teflon coating, nickel plating, tungsten disulfide, black chrome plating, molybdenum disulfide, and DLC coating.

Request Your Quote Today!

Ready to elevate your design with precision 5mm trapezoidal lead screws? Share your requirements or drawings with our team for a competitive quote and expert guidance. Contact us today to discuss your project needs!

Request a Quote

15＋

With 15 years of specialized experience in producing lead screw, all leadscrews will be tested by professional inspectors before shipment to ensure quality.

Professional Engineering Team

LMT engineers will be involved in optimizing your screw project design from prototyping to final project design completion.

1000+

Our factory offers an extensive selection of over 1000 different models to meet diverse application needs.

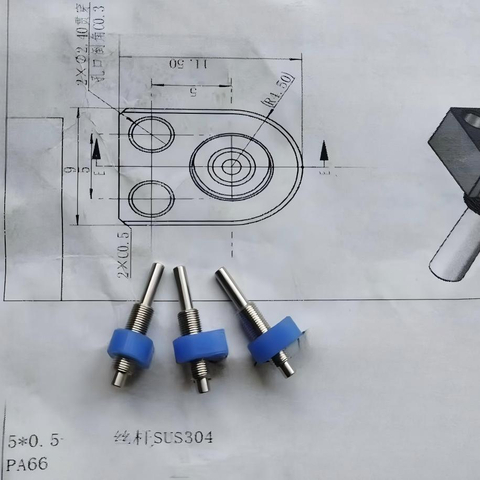

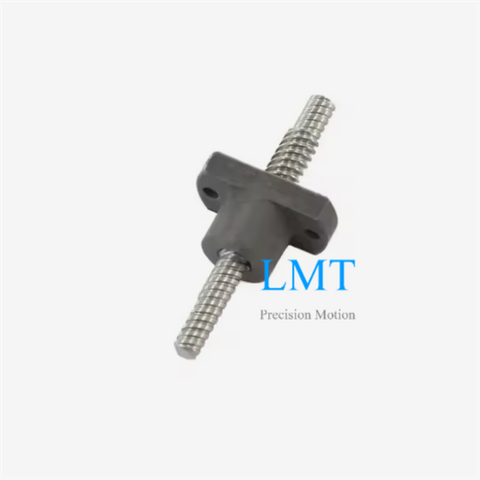

5mm Diameter Trapezoidal Lead Screw Related Products

The following products are items previously manufactured by our company. You can contact our sales team directly to send your requirements or drawings. Both the lead screws and nuts are produced according to your specifications and drawings.
