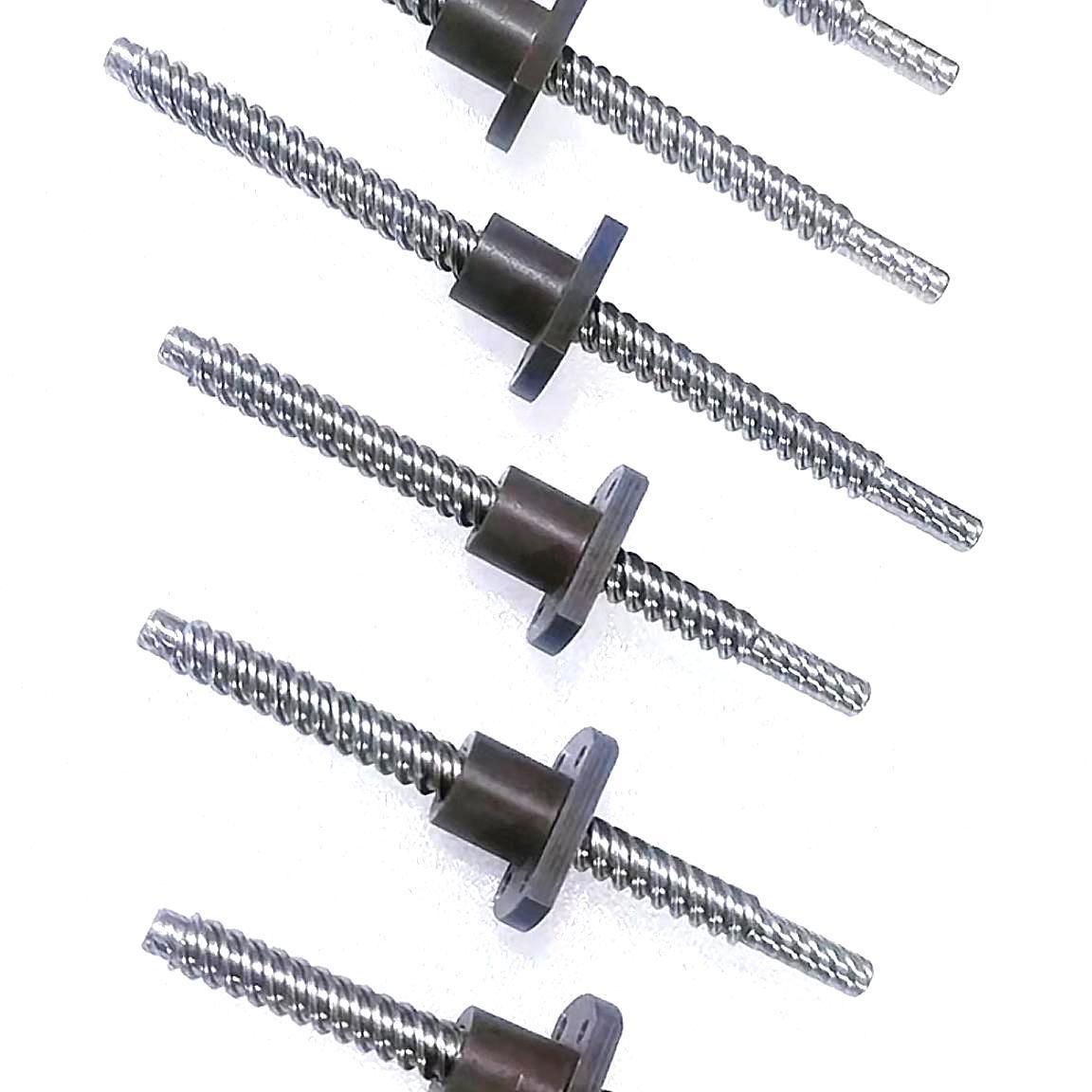

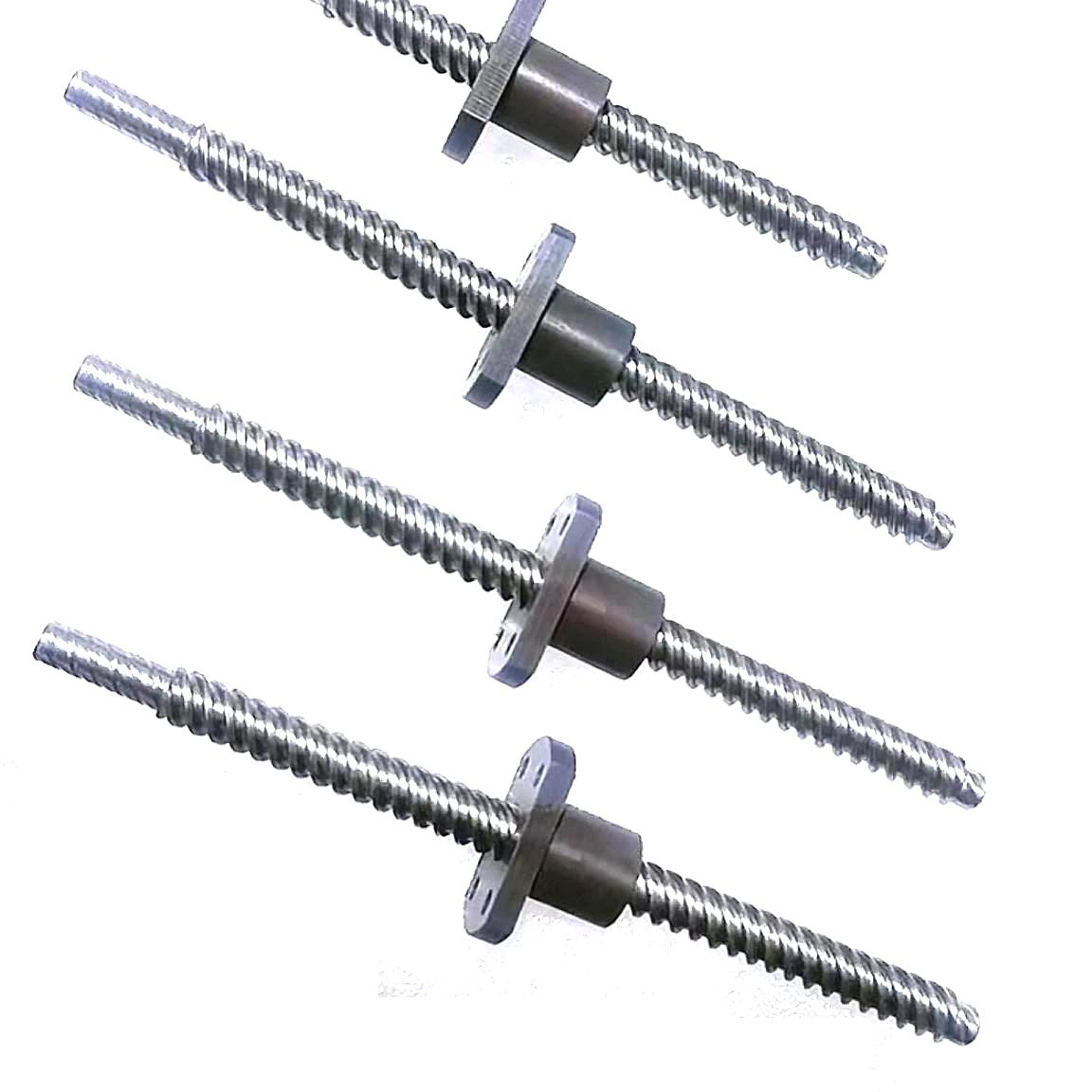

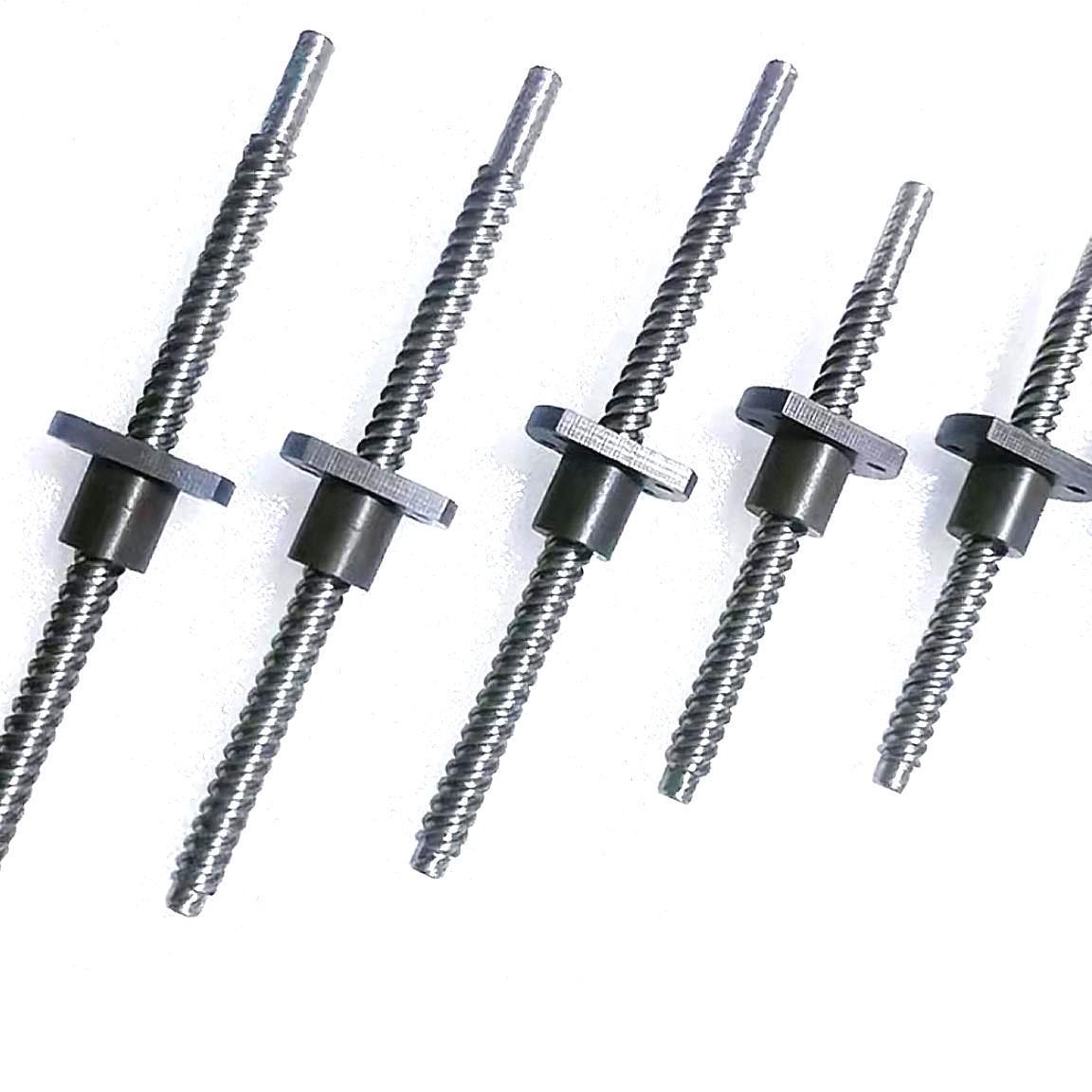

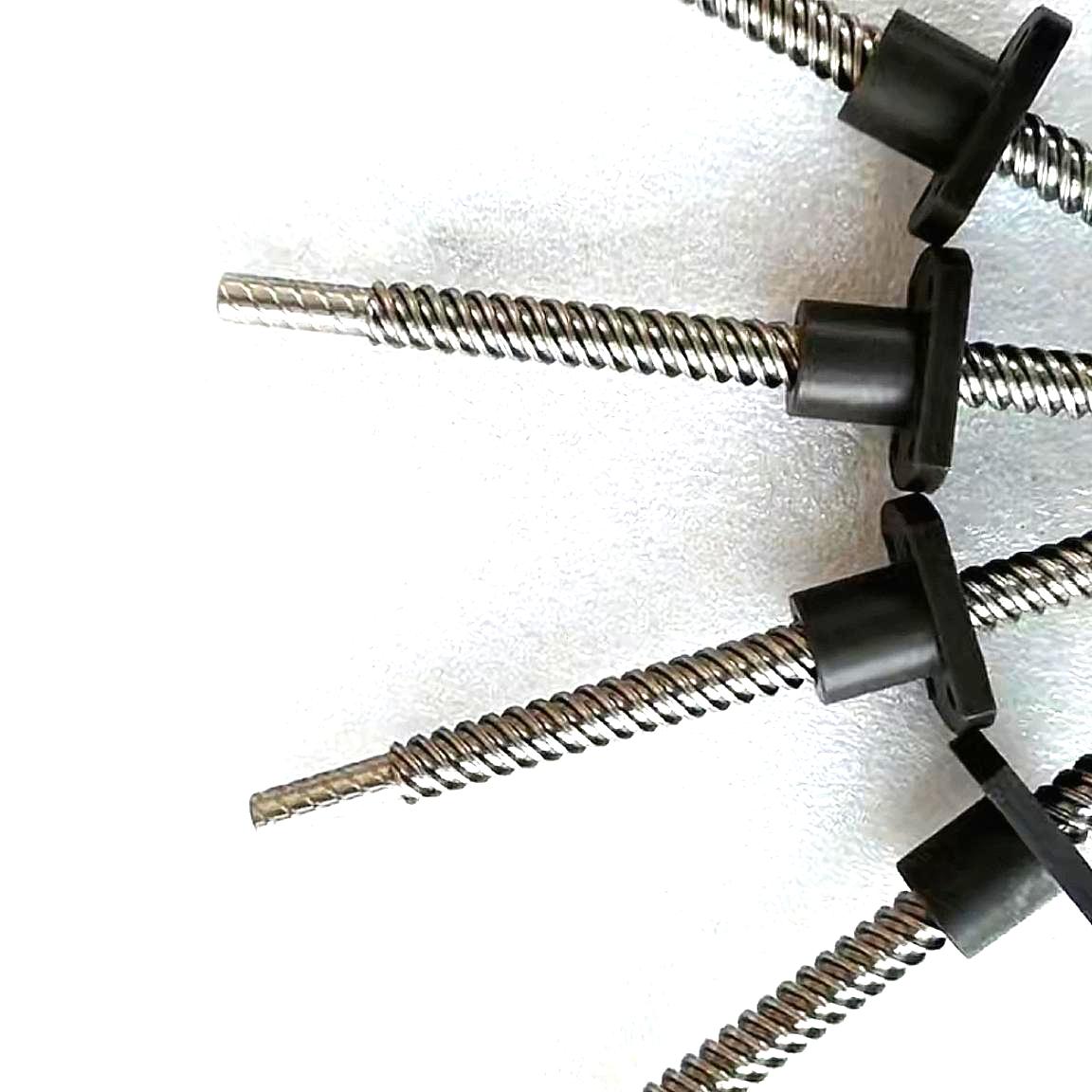

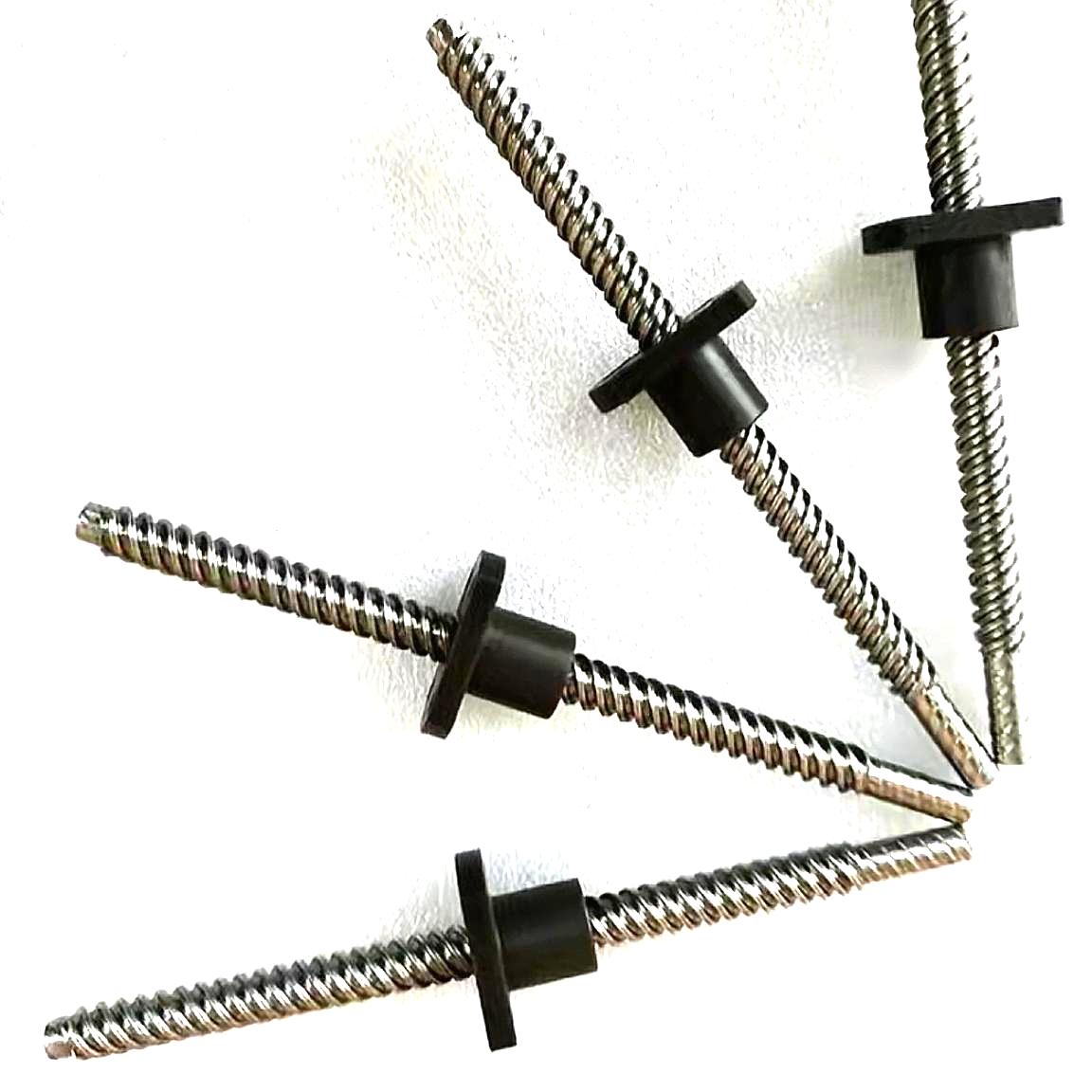

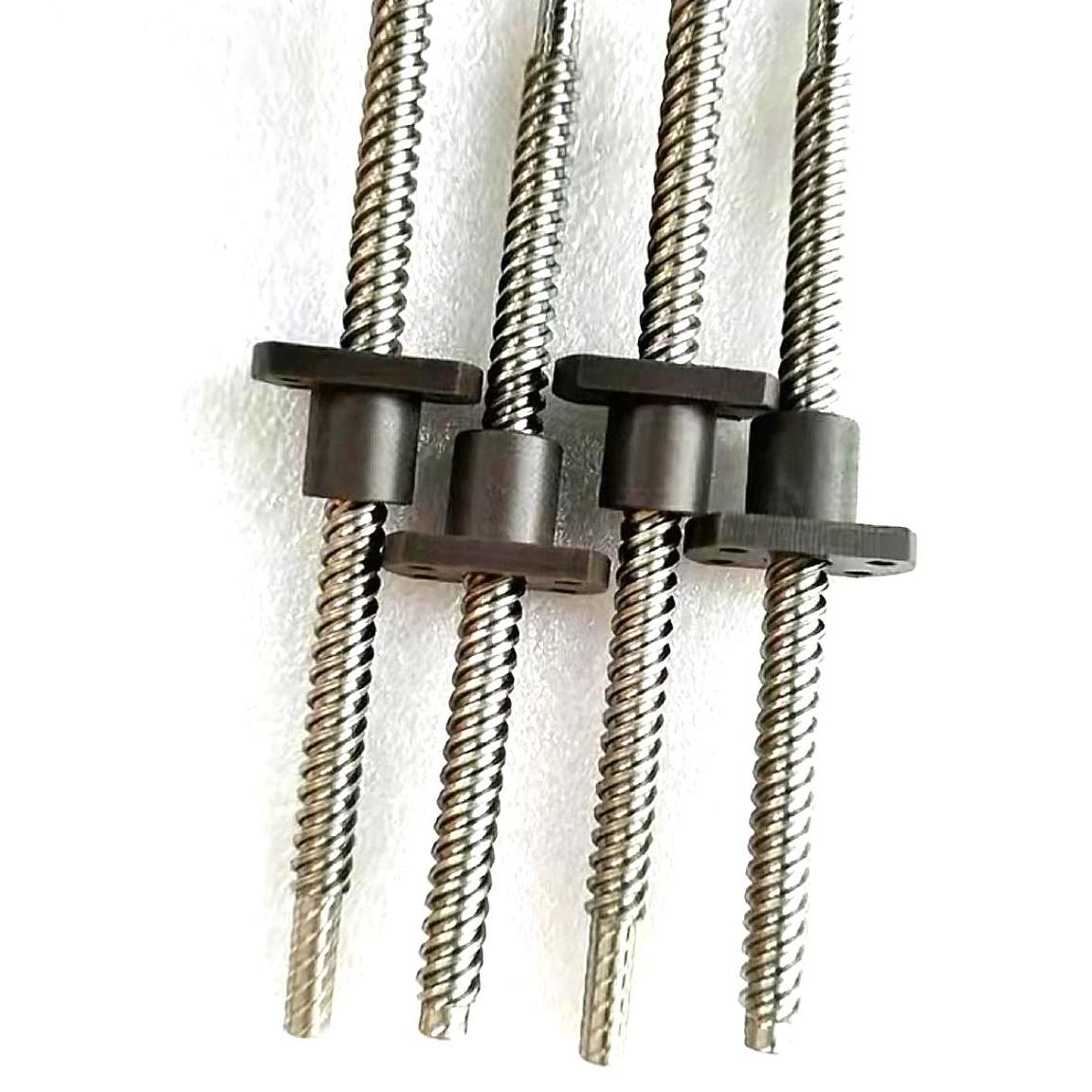

This Tr12x36 lead screw diameter is 12mm,lead is 36mm,pitch is 6mm.Customizable in length,material,shaft-end machining,and nut dimensions to meet specific application needs.Ideal for engineers seeking a reliable,high-speed linear motion solution.
Diameter | 12mm |
Lead | 36mm |
Pitch | 6mm |
| Number of starts | 6 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Customized Service
Flexible Dimensions:Supports non-standard lengths,shaft-end machining(flattening,drilling,stepped shafts,etc.)to meet diverse installation needs.
Material Options:Lead screw materials:S45C,SS303,SS304,SS316,adaptable to various working conditions.Nut materials:POM,PEEK,Brass,Bronze,Nylon,stainless steel,S45C.
Surface Treatments:Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.
Contact us to get a quote!
