Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings

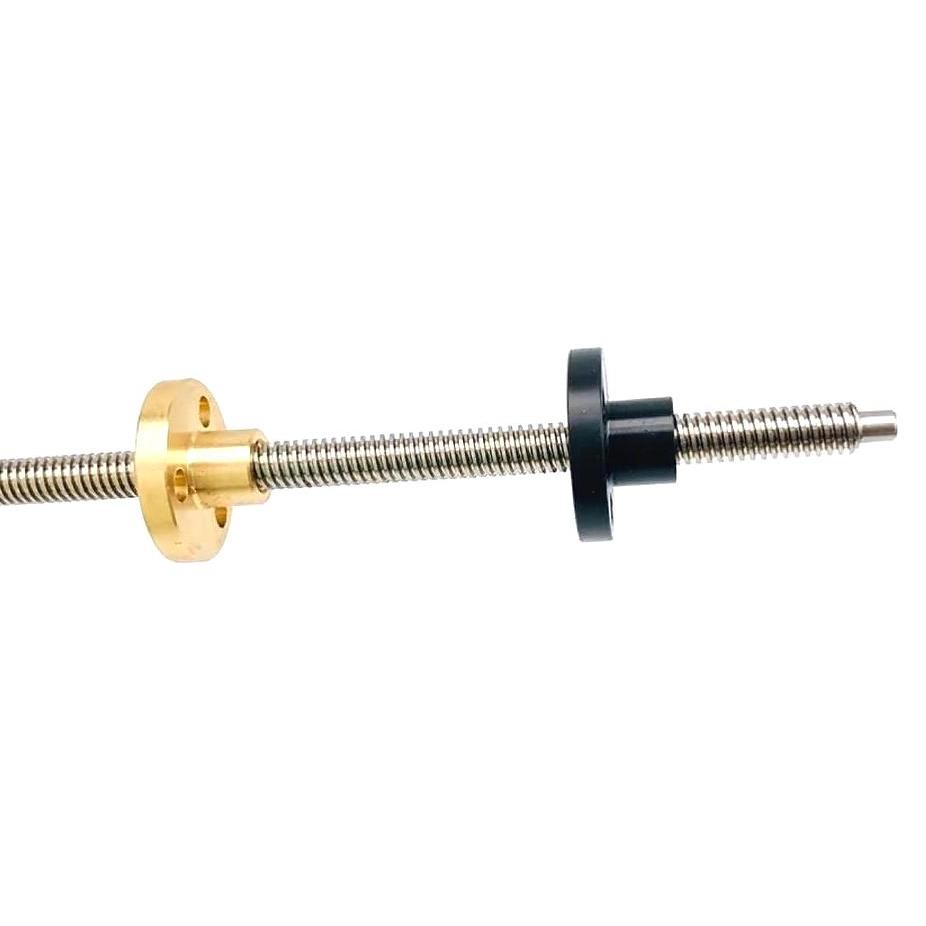

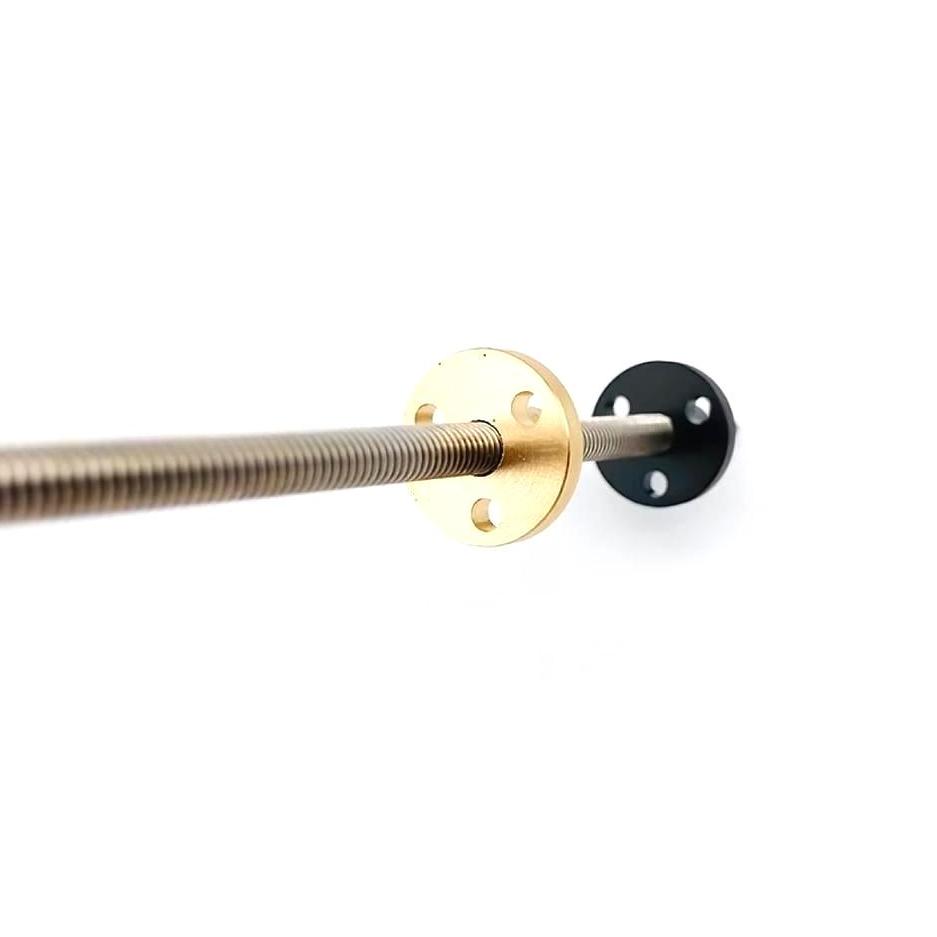

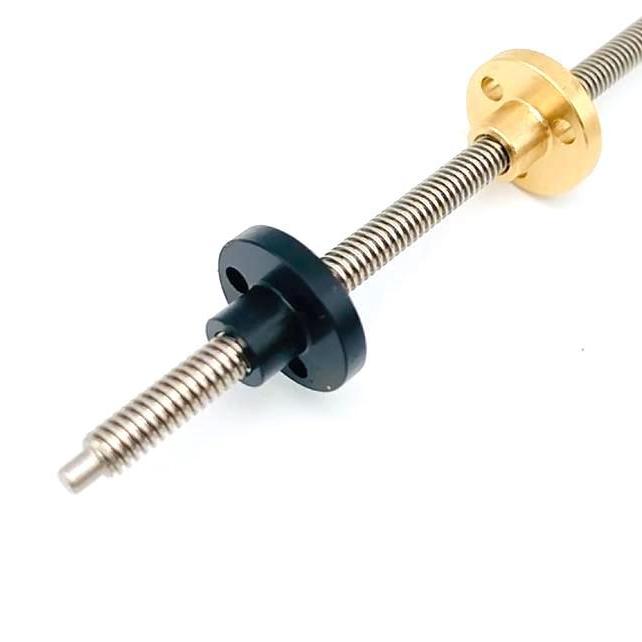

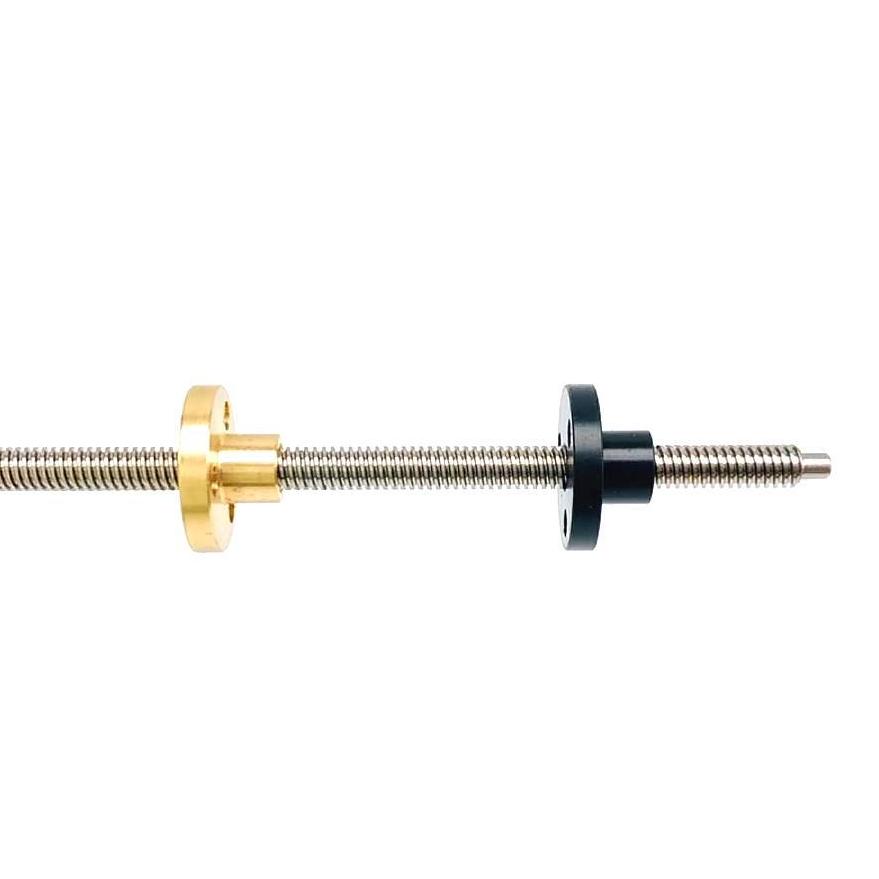

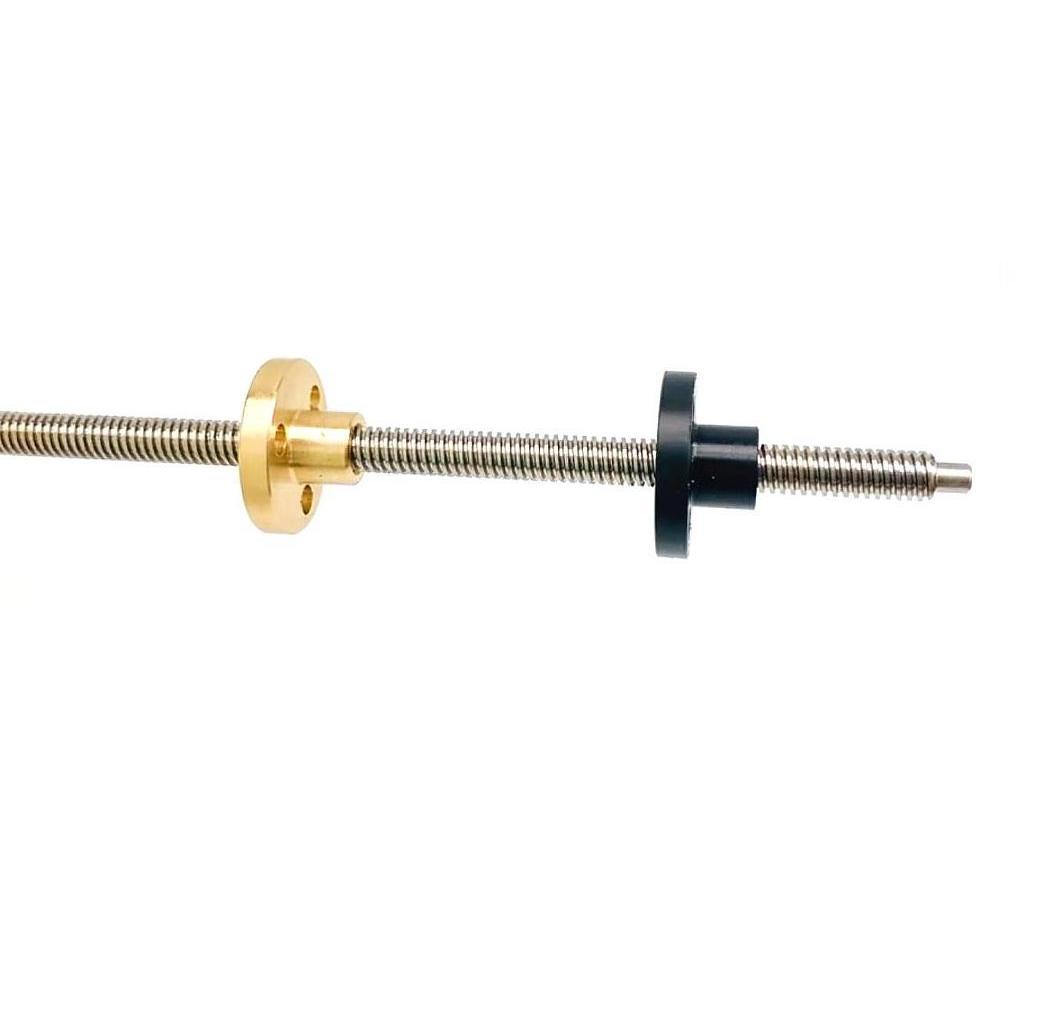

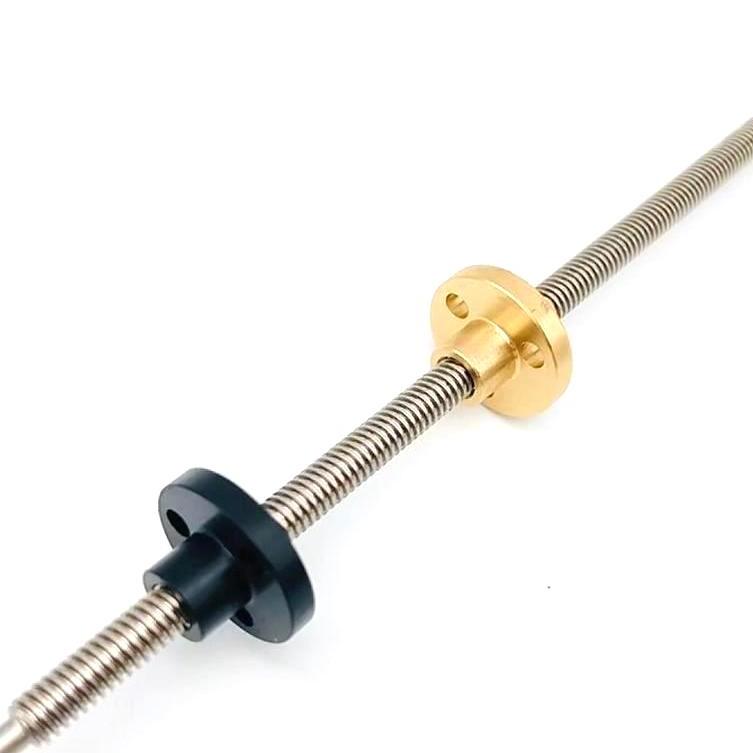

Tr6x1.5 Rolled Lead Screw with Round Flange Nut
The trapezoidal lead screw has a diameter of 6mm,and the lead and pitch are both 1.5mm.It adopts cold rolling manufacturing process,with perfect surface finish and thread accuracy. The Tr6x1.5 lead screw is equipped with a round flange nut,which is easy to install,has uniform force,and has good performance.
Diameter | 6mm |
Lead | 1.5mm |
Pitch | 1.5mm |
| Number of starts | 1 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Why Choose our T6x1.5 Lead Screw?
Cost-effective:35% cost savings.
Fast Delivery:Within 14 days.
Customized Service:The lead screw and nut will be manufactured according to your requirements.
Precision Rolled Threads:Tr6x1.5 rolled lead screw boasts superior surface smoothness,mechanical strength.Highest lead accuracy ±0.012mm/100mm.
Tr6x1.5 Rolled Lead Screw with Round Flange Nut
The trapezoidal lead screw has a diameter of 6mm,and the lead and pitch are both 1.5mm.It adopts cold rolling manufacturing process,with perfect surface finish and thread accuracy. The Tr6x1.5 lead screw is equipped with a round flange nut,which is easy to install,has uniform force,and has good performance.
Diameter | 6mm |
Lead | 1.5mm |
Pitch | 1.5mm |
| Number of starts | 1 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Why Choose our T6x1.5 Lead Screw?
Cost-effective:35% cost savings.
Fast Delivery:Within 14 days.
Customized Service:The lead screw and nut will be manufactured according to your requirements.
Precision Rolled Threads:Tr6x1.5 rolled lead screw boasts superior surface smoothness,mechanical strength.Highest lead accuracy ±0.012mm/100mm.
