Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings

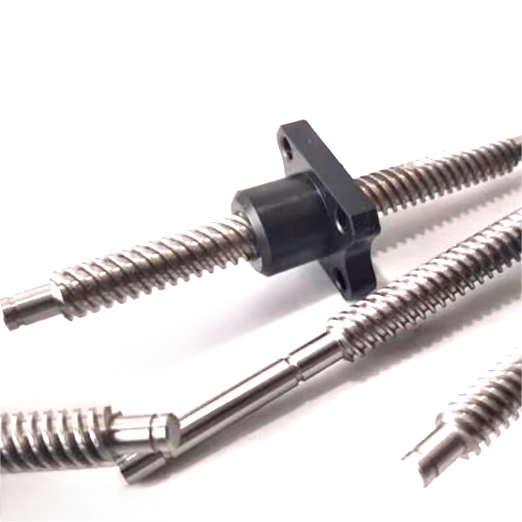

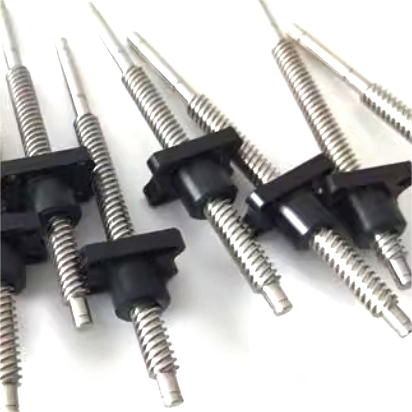

T8x12 Low Friction Trapezoidal Screw Rod with POM Nut
The trapezoidal lead screw diameter is 8mm,lead is 12mm.The POM nut ensures exceptionally low friction,quiet operation,and long-term wear resistance,eliminating the need for frequent lubrication.
Diameter | 8mm |
Lead | 12mm |
Pitch | 2mm or 3mm |
| Number of starts | 6 or 4 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
T8x12 lead screw advantages:
30% Cost Savings
Optimized rolled thread manufacturing reduces production costs while maintaining high precision.
Fast Delivery (≤12 Days)
Streamlined production and logistics ensure rapid turnaround for custom orders.
Fully Customizable
Tailor screw length,screw shaft end,nut shape,nut material and thread profiles to your exact needs.
Smooth Motion
Ultra-smooth movement with minimal friction for consistent performance.
