Available Screw Materials:S45C,SS303,SS304,SS316,aluminum,40cr
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304,aluminum
Popular Surface Coating:Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating
Customized Service:Tr6x1 bidirectional screw and nut will be produced according to your requirements or drawings

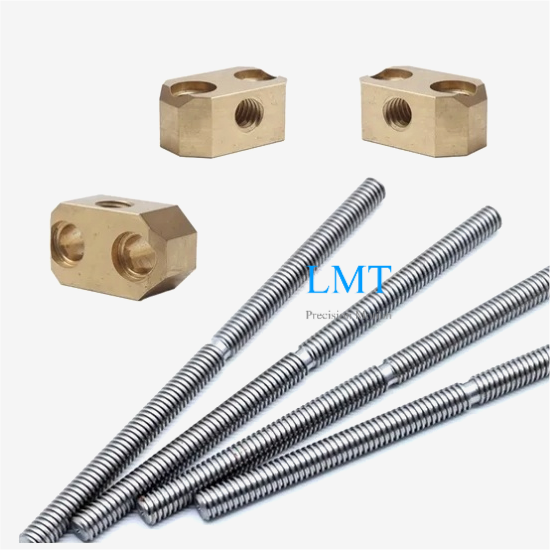

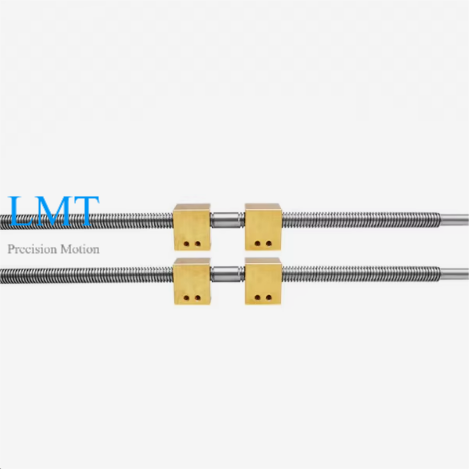

This stainless steel Tr6x1 bidirectional lead screw features an ultra-fine 1mm pitch with single-start thread,delivering exceptional positional accuracy and smooth operation.Paired with a custom-fitted nut,the complete lead screw assembly boasts superior corrosion resistance,minimal backlash,and extended service life.Both the screw and nut are available for full customization according to your drawings and specific requirements.
Tr6x1 Bidirectional Lead Screw Specification:
Diameter | 6mm |
Lead | 1mm |
Pitch | 1mm |
| Number of starts | 1 |
Available thread direction | RH/LH/RL |
Available screw materials | S45C/ SS303/SS304/SS316/aluminum/40Cr |
Available nut materials | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C/aluminum |
| Popular surface coating | Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating |
Tr6x1 Bidirectional Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:15% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The T6x1 twin-lead lead screw and nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in bidirectional lead screws,all products are 100% tested for quality before shipping.
T6x1 Twin Lead Screw Assembly Applications:
This compact 6mm diameter twin lead screw is engineered for applications demanding highly precise,synchronized bidirectional linear motion.It is ideally suited for delicate adjustment mechanisms in optical and photonic equipment,precise lens focusing systems,miniature stages in metrology instruments,and the fine regulation of probes or sensors.
LMT Lead Screw factory
This stainless steel Tr6x1 bidirectional lead screw features an ultra-fine 1mm pitch with single-start thread,delivering exceptional positional accuracy and smooth operation.Paired with a custom-fitted nut,the complete lead screw assembly boasts superior corrosion resistance,minimal backlash,and extended service life.Both the screw and nut are available for full customization according to your drawings and specific requirements.
Tr6x1 Bidirectional Lead Screw Specification:
Diameter | 6mm |
Lead | 1mm |
Pitch | 1mm |
| Number of starts | 1 |
Available thread direction | RH/LH/RL |
Available screw materials | S45C/ SS303/SS304/SS316/aluminum/40Cr |
Available nut materials | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C/aluminum |
| Popular surface coating | Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating |
Tr6x1 Bidirectional Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:15% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The T6x1 twin-lead lead screw and nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in bidirectional lead screws,all products are 100% tested for quality before shipping.
T6x1 Twin Lead Screw Assembly Applications:
This compact 6mm diameter twin lead screw is engineered for applications demanding highly precise,synchronized bidirectional linear motion.It is ideally suited for delicate adjustment mechanisms in optical and photonic equipment,precise lens focusing systems,miniature stages in metrology instruments,and the fine regulation of probes or sensors.
LMT Lead Screw factory
