Tr6x12 ROHS Compliant Rolled Lead Screw Rod with Flange Nut

  • Model Number: Diameter 6mm,lead 12mm,pitch 2mm
  • Lead Time and MOQ : lead time 12~14days,MOQ 1 pc
  • Available Screw Materials:S45C,SS303,SS304,SS316

  • Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304

  • Customized Service:6x12 trapezoidal screw and nut will be produced according to your requirements or drawings




Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

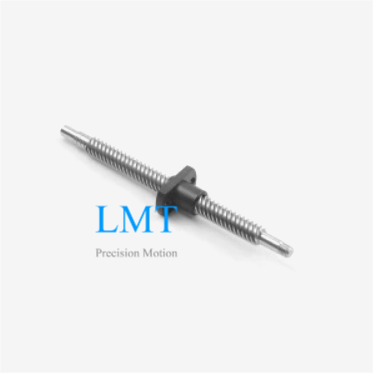

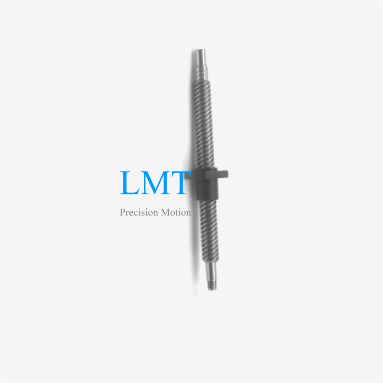

Tr6x12 ROHS Compliant Rolled Lead Screw Rod with Flange Nut:This trapezoidal(Tr)lead screw features a 6mm diameter and 12mm lead,manufactured from corrosion-resistant stainless steel.Utilizing a cold-rolling process,the leadscrew achieves an exceptionally smooth,precise surface finish.It comes paired with a compact flange nut for simplified mounting and space-efficient design.The complete screw and nut assembly complies with ROHS and CE standards.


Specification:


Diameter

6mm

Lead

12mm

Pitch

2mm

Number of starts 6

Thread direction

RH/LH/RL

Screw material

S45C/ SS303/SS304/SS316

Nut material

Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C


Tr6x12 Lead Screw Rod and Nut Advantages:


MOQ: 1 pc.

Fast Delivery:Within 12 days.

Cost-effective:15% ~40% cost savings.

All lead screws and nuts are ROHS and CE compliant.

Customized Service:The T6x12 lead screw and nut will be manufactured according to your requirements.

Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.


Lead Screw Nut


Tr6x12 ROHS Compliant Rolled Lead Screw Rod with Flange Nut


Lead Screw Nuts


Tr6x12 ROHS Compliant Rolled Lead Screw Rod with Flange Nuts
