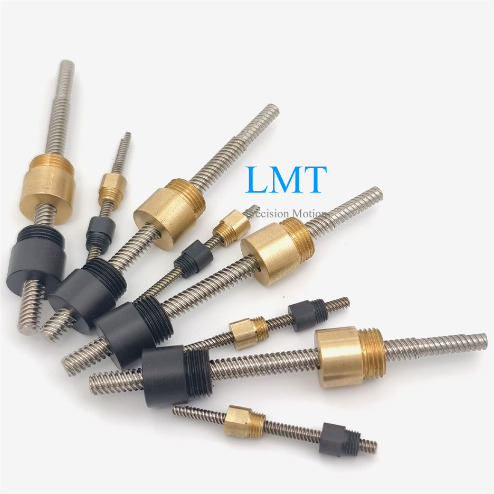

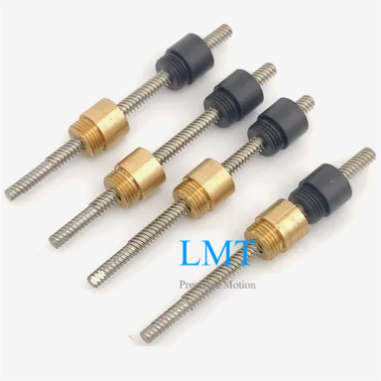

Tr5x5 ROHS Compliant Rolled Lead Screw with Round Nut

  • Model Number: Diameter 5mm,lead 5mm,pitch 1.25mm
  • Lead Time and MOQ : lead time 12~14days,MOQ 1 pc
  • Available Screw Materials:S45C,SS303,SS304,SS316

  • Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304

  • Customized Service:5x5 trapezoidal screw and nut will be produced according to your requirements or drawings




Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Tr5x5 ROHS Compliant Rolled Lead Screw with Round Nut:This Tr5x5 rolled trapezoidal lead screw features a 5mm diameter and 5mm lead,manufactured from corrosion-resistant stainless steel using a cold-rolled process for an exceptionally smooth surface finish.Paired with a compact round nut for easy installation,the entire lead screw and nut assembly is ROHS and CE certified.


Specification:


Diameter

5mm

Lead

5mm

Pitch

1.25mm

Number of starts 4

Thread direction

RH/LH/RL

Screw material

S45C/ SS303/SS304/SS316

Nut material

Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C


Tr5x5 Lead Screw and Nut Advantages:


MOQ: 1 pc.

Fast Delivery:Within 12 days.

Cost-effective:15% ~40% cost savings.

All screws and nuts are ROHS and CE compliant.

Customized Service:The T5x5 lead screw and nut will be manufactured according to your requirements.

Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.


Lead Screw Nut


Tr5x5 ROHS Compliant Rolled Lead Screw with Round Nut


Lead Screw Nuts


Tr5x5 ROHS Compliant Rolled Lead Screw with Round Nuts
