Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings

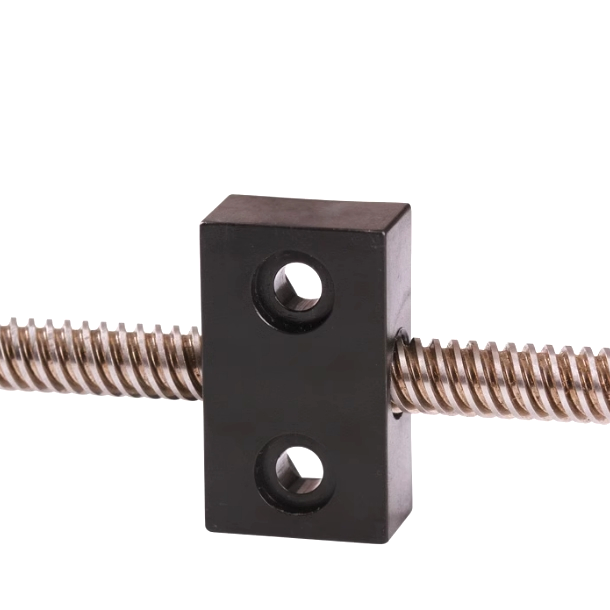

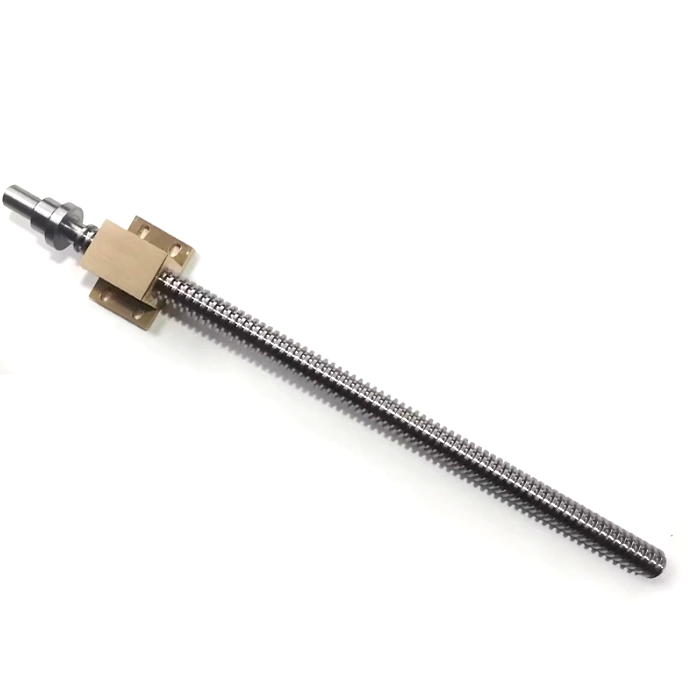

Tr6x2 Diameter 6mm Miniature Lead Screw Rod with Nut
This 6mm diameter stainless steel trapezoidal lead screw features a 2mm lead,delivering precise linear motion in compact systems.Rolled threads ensure high surface finish and smooth operation,while compatibility with customizable nuts allows tailored solutions for load,wear resistance,or noise reduction.
Diameter | 6mm |
Lead | 2mm |
Pitch | 1mm or 2mm |
| Number of starts | 2 or 1 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
T6x2 micro lead screw advantages:
Cost-Effective:30% cost savings.
Fast Delivery: Within 12 days.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
Compact & Lightweight:Minimalist design saves space and reduces system weight,perfect for portable or miniaturized equipment.
