Tool-free opening and closing:By turning the clamping lever.
Maintenance free:Up to 50,000 static clamping cycles.
Lead time:Large inventory in stock
Secure your 30mm linear guides with our manual clamp mechanism.This brake mechanism provides reliable position locking,preventing vibration and significantly increasing rail system rigidity during machining or critical positioning.Improve stability and safety affordably–we offer bulk quantities at competitive prices with ample stock ready for immediate shipment.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 30mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
30mm Linear Rail Manual Clamp Key Advantages:
The manual braking is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
Acts as a robust limited block,firmly locking components like slides or tooling plates at precise points on the guideway.
The manual clamp mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.

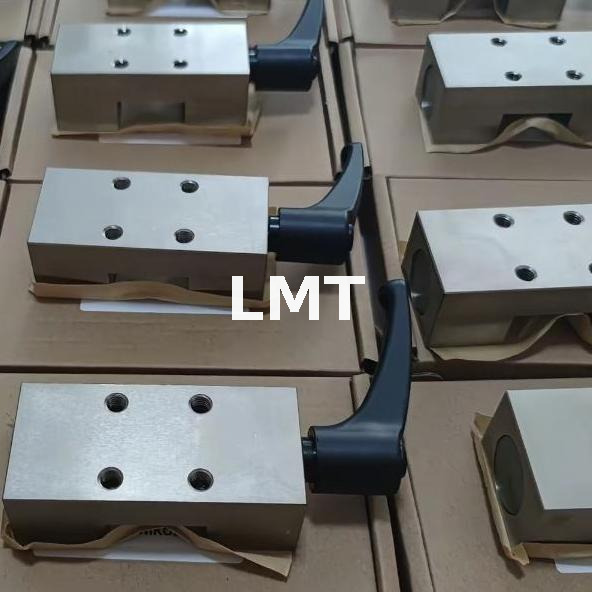

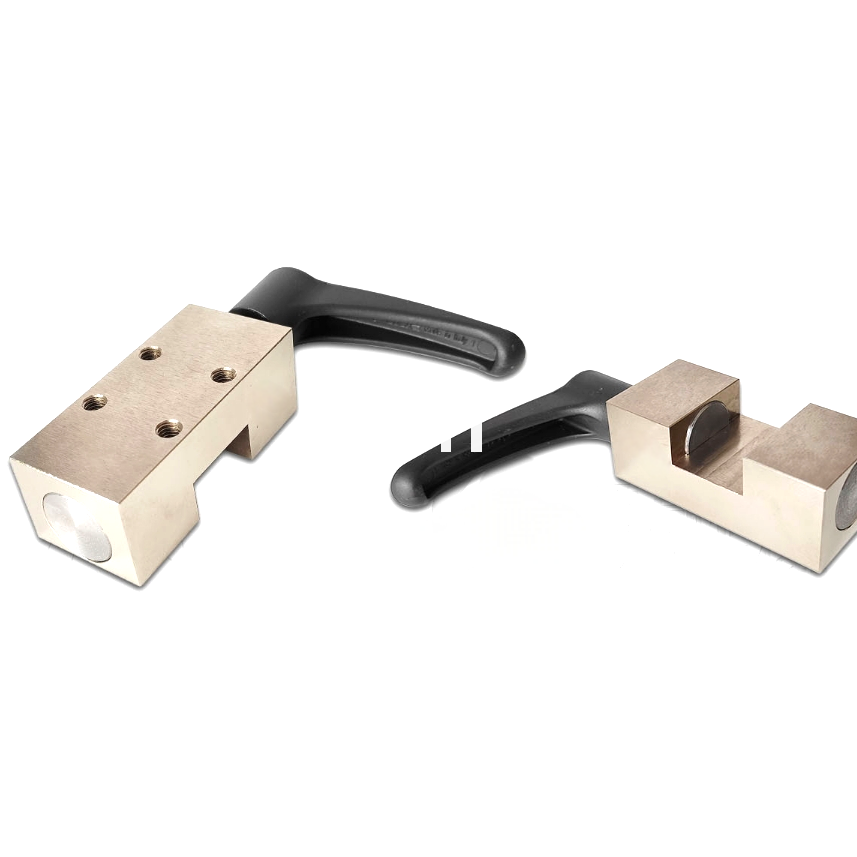

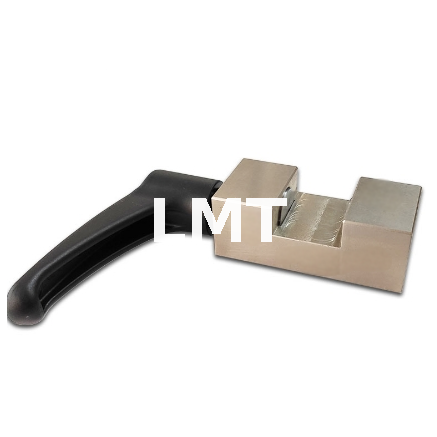

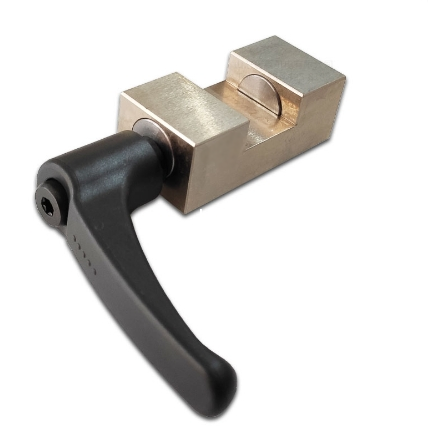

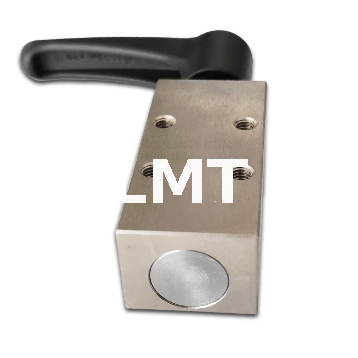

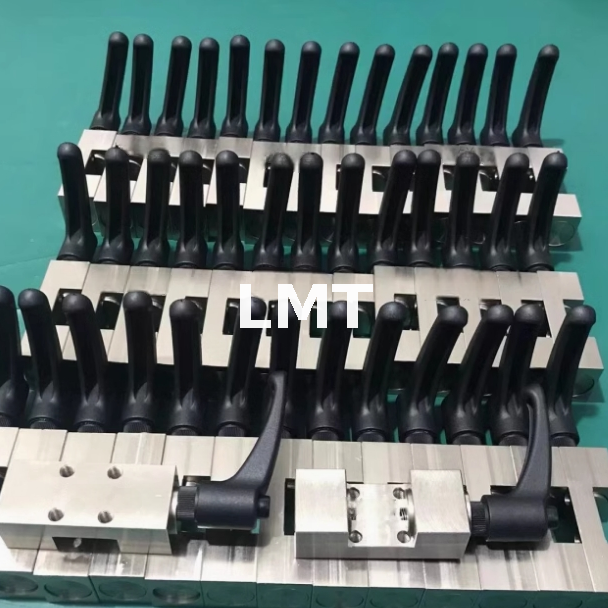

Linear Rail Manual Clamp Braking Pictures
