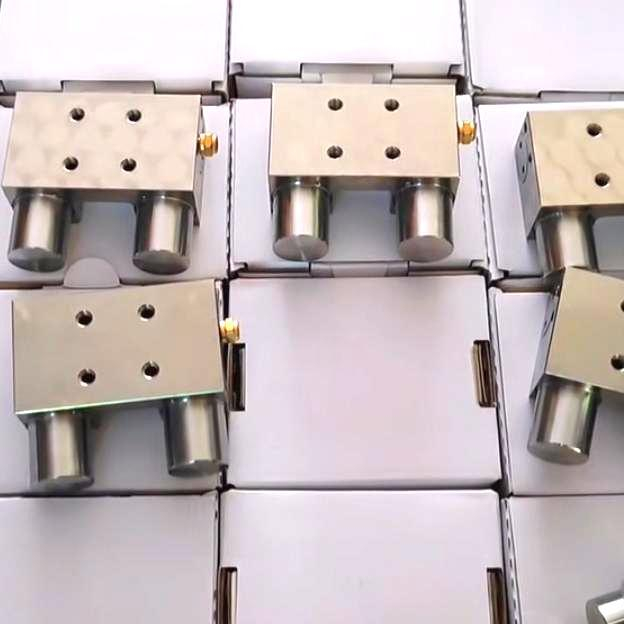

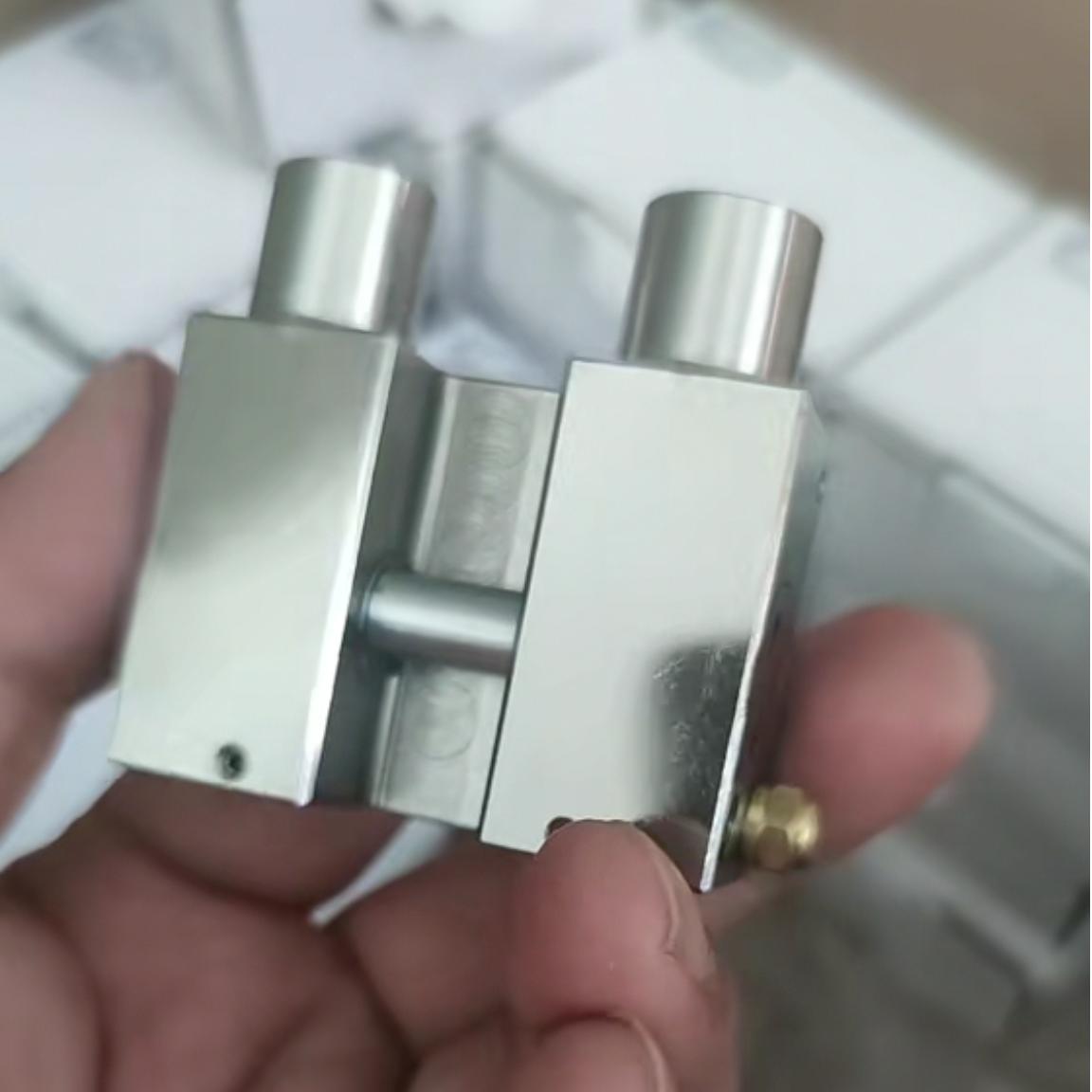

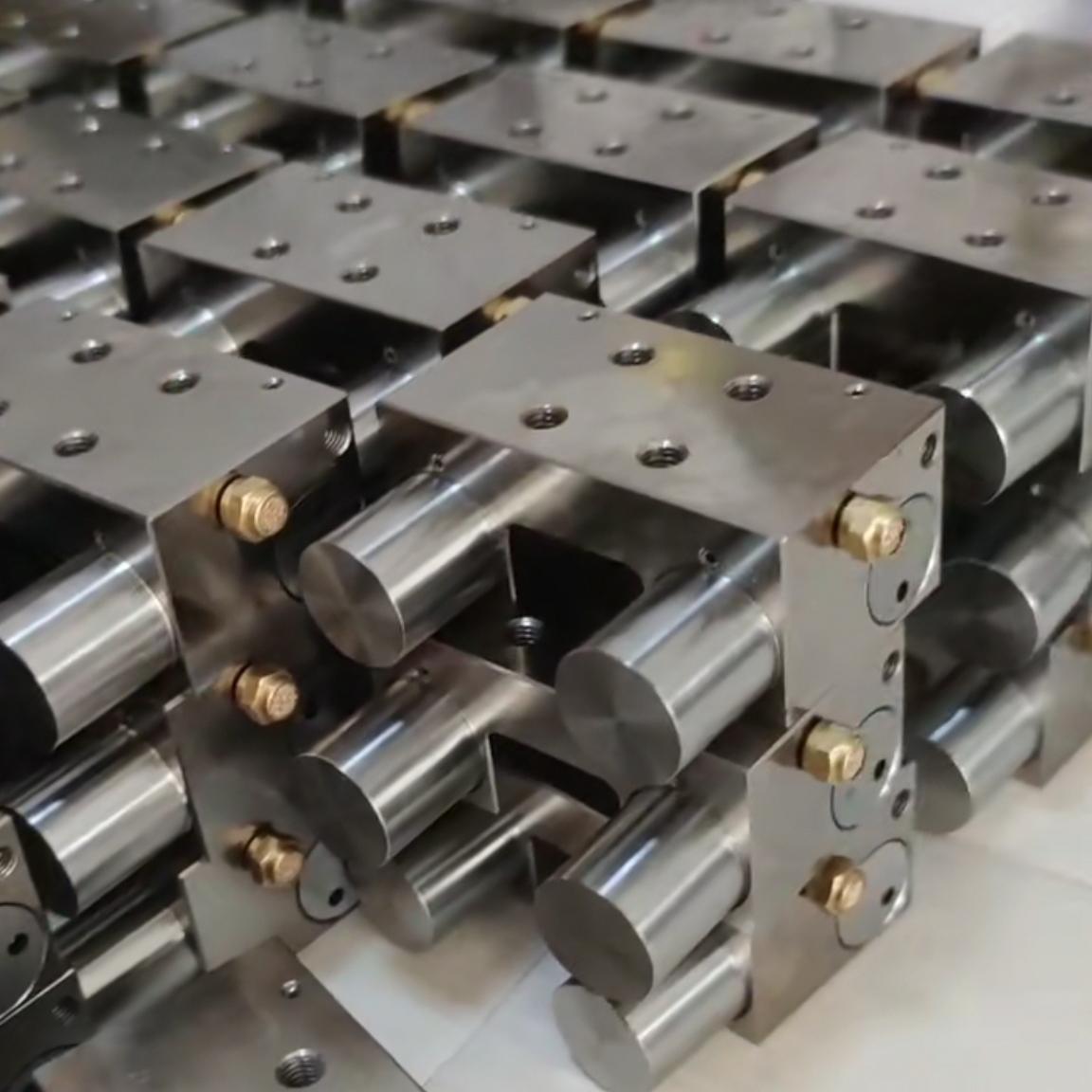

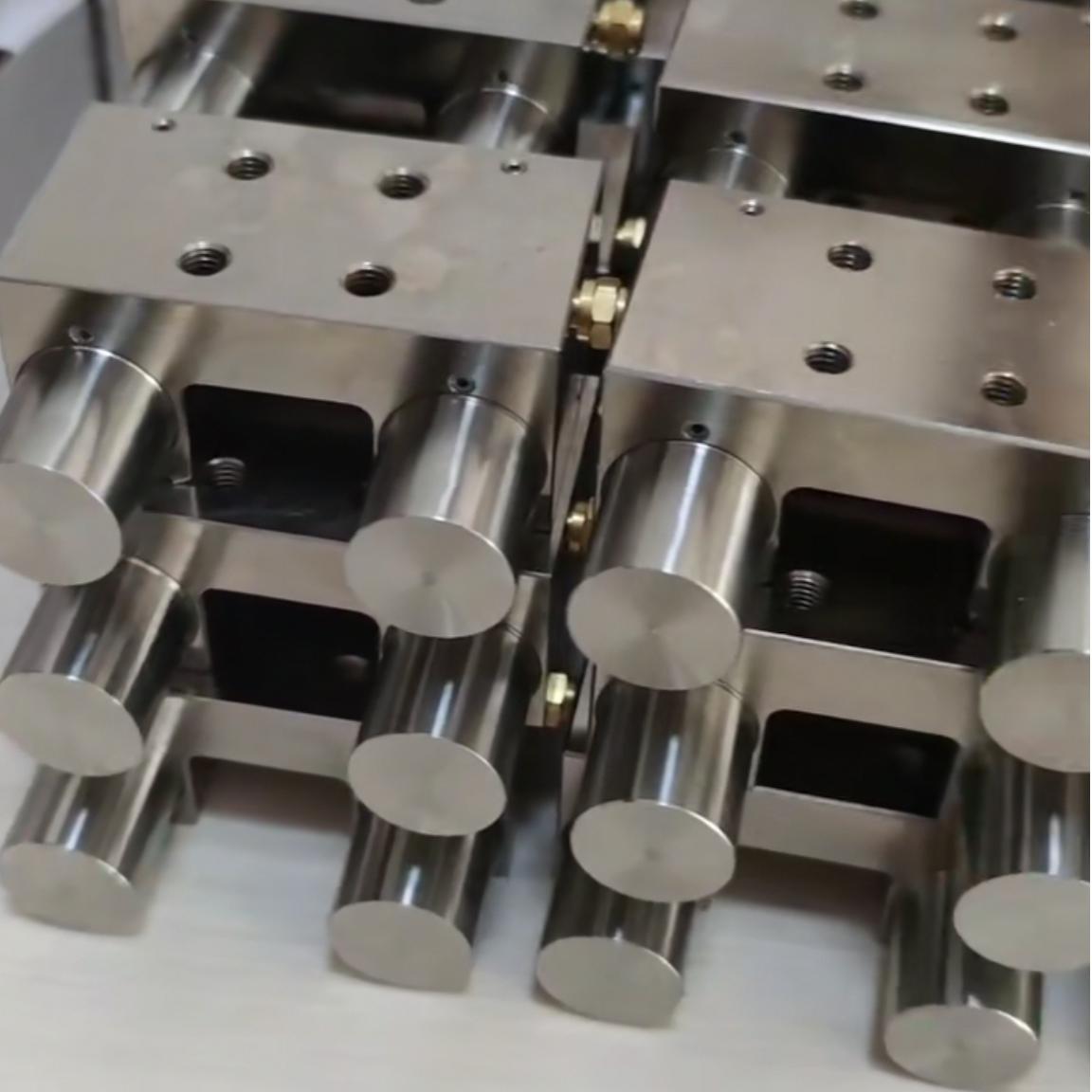

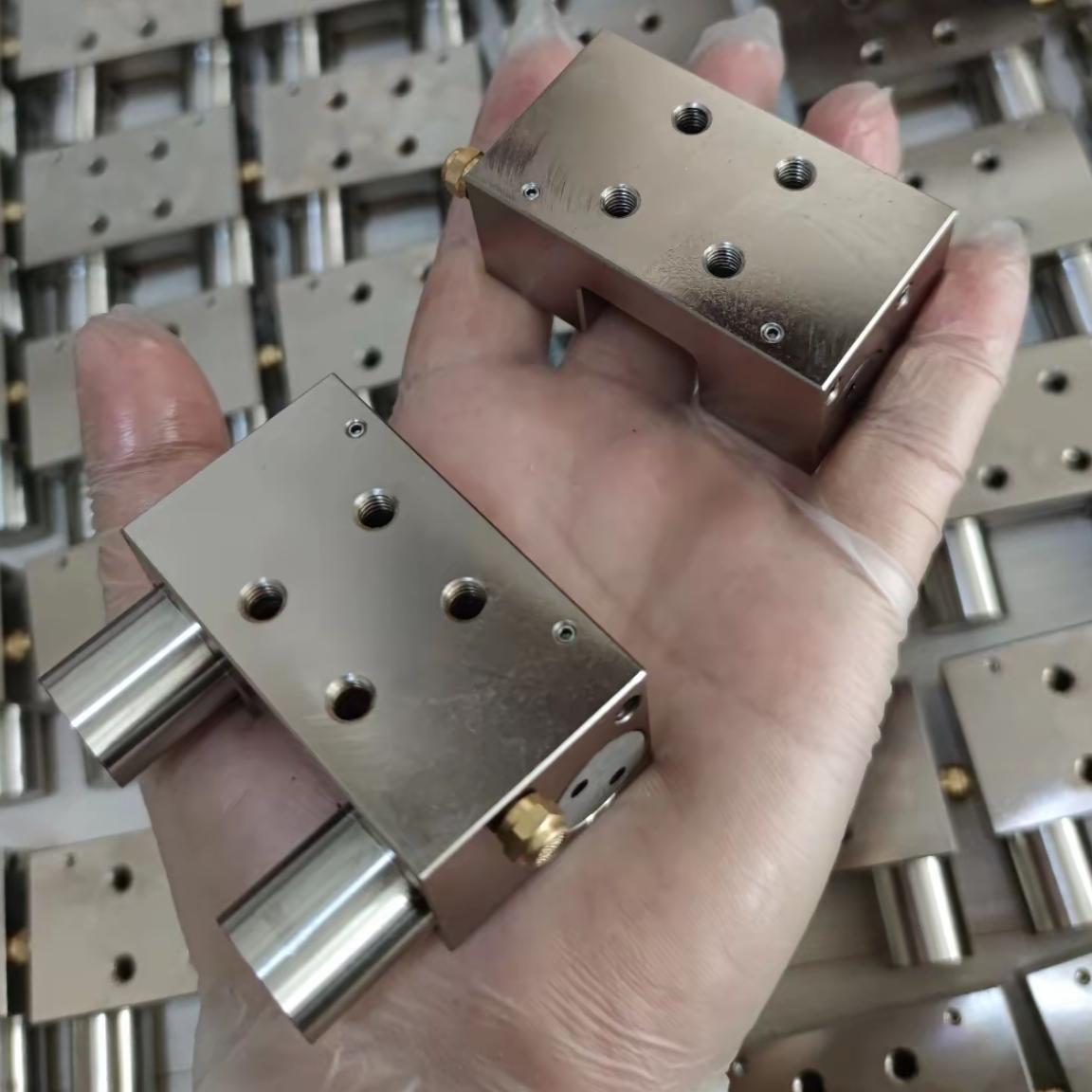

Pneumatic Normally Close Clamping Braking Element for 30mm Linear Rail
Engineered for 30mm linear rails to deliver unmatched stability and precision in automation systems.This robust pneumatic normally close clamping and braking element ensures secure position locking,eliminates vibration,and significantly enhances rail rigidity — critical for high-accuracy applications.
Specification:
| Clamp types | Pneumatic normally close |
| Applicable guideway sizes | 30mm |
| Standard type rated holding force(N) | Standard connection 1050N,pressurized connection 2600N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
30mm Linear Rail Clamping and Braking Element Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close Clamp Braking Video
