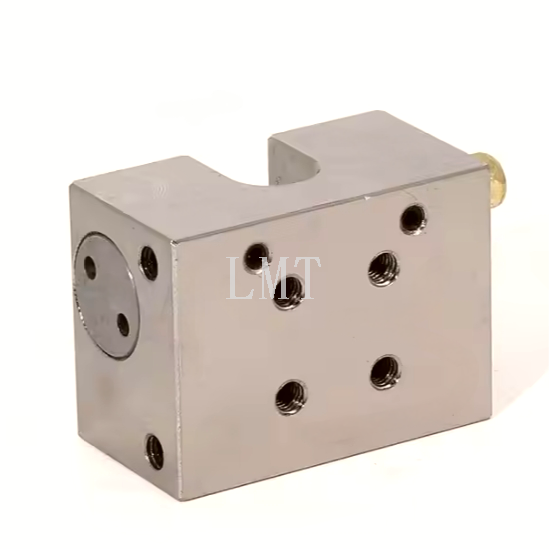

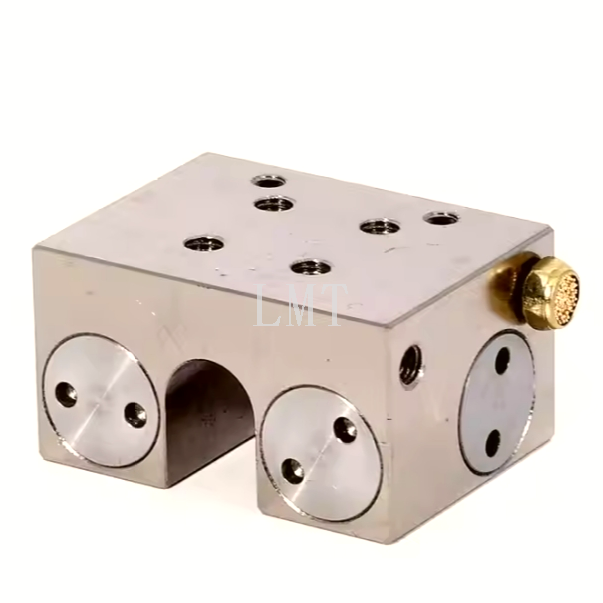

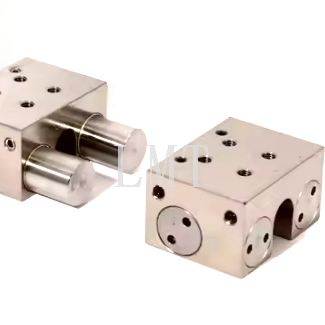

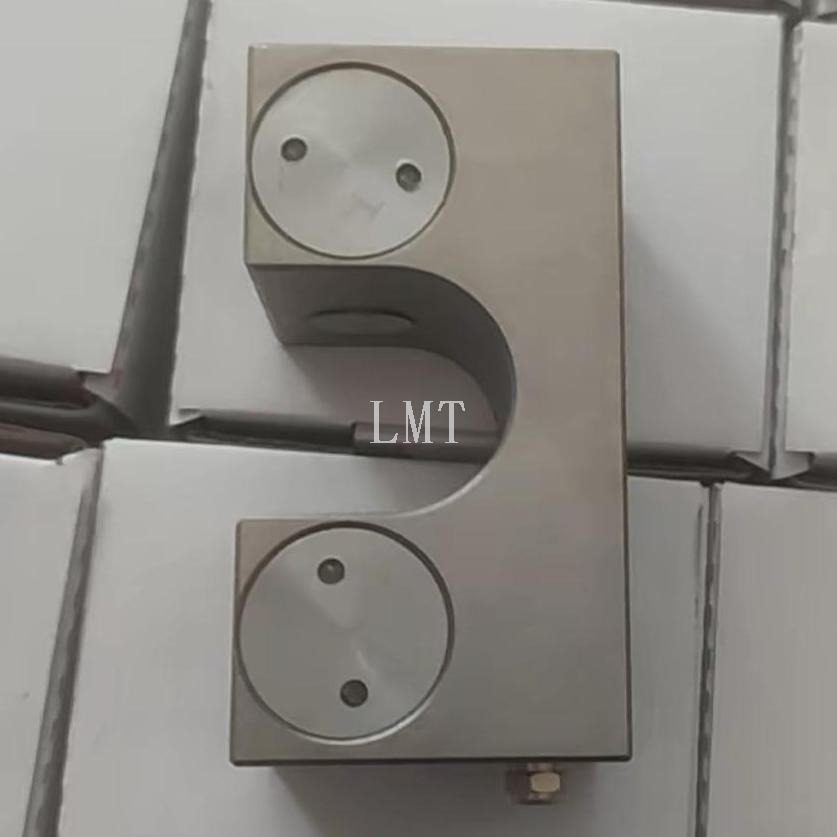

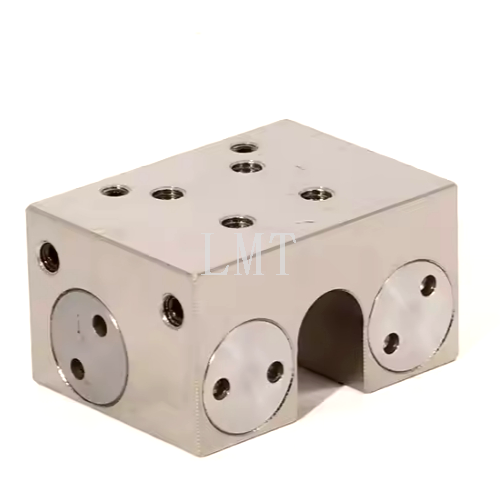

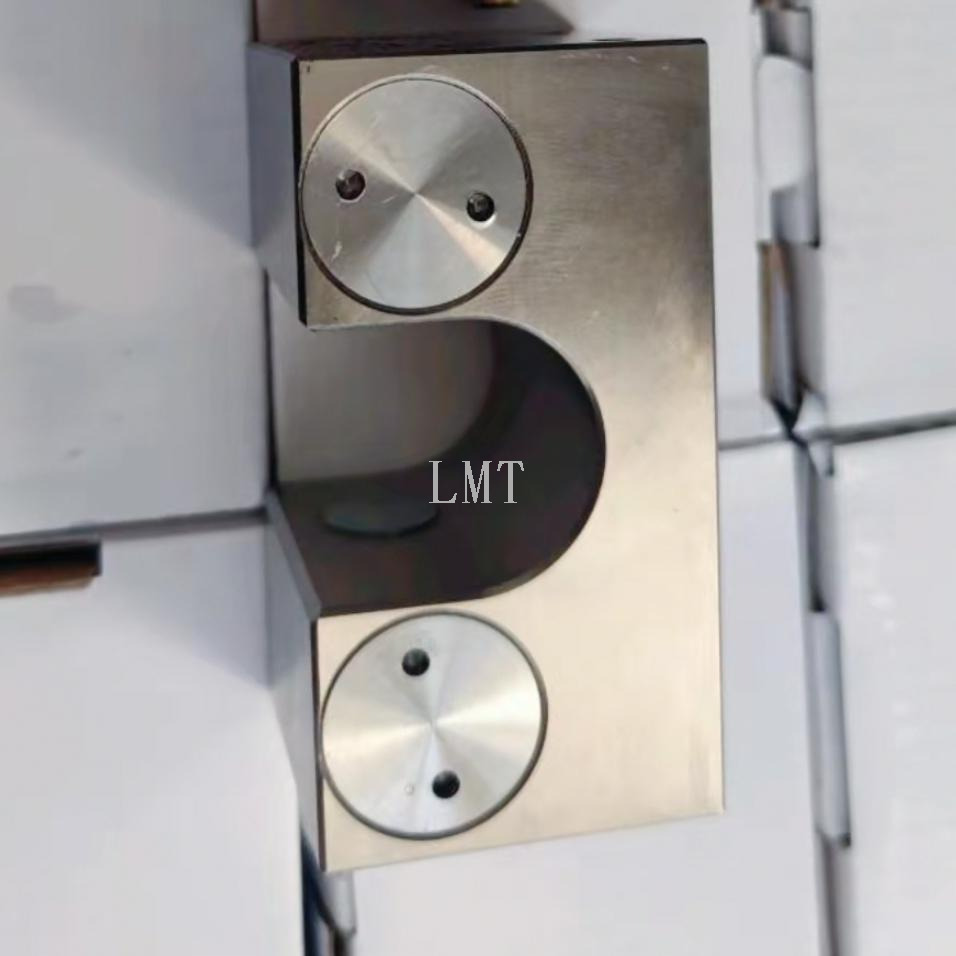

Pneumatic Normally Open Clamp Braking for 30mm Linear Round Shaft
Choose our high-performance pneumatic normally open clamp braking for unmatched holding power and operational efficiency on your 30mm round shafts.Securely immobilize round shafts in milliseconds,preventing drift and ensuring absolute positional accuracy during critical machine operations.
Specification:
| Clamp types | Pneumatic normally open |
| Shaft φ | 30mm |
| Rated holding force(N) | 1750N |
| Working pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| 2D and 3D drawing | Available |
Dia 30mm Linear Shaft Clamp Braking Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For circular guides and shaft guides.
Completely replace the Zimmer brand MKR series linear shaft clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp brake main body is nickel-plated and has good rust resistance.
