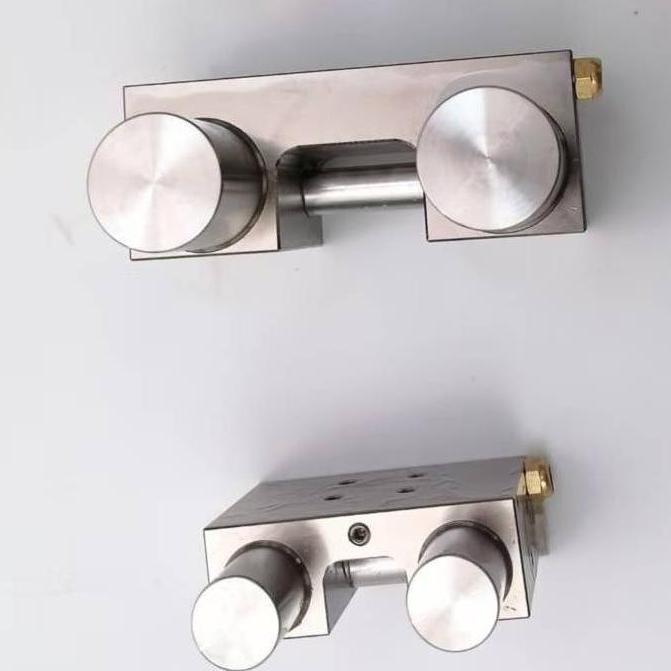

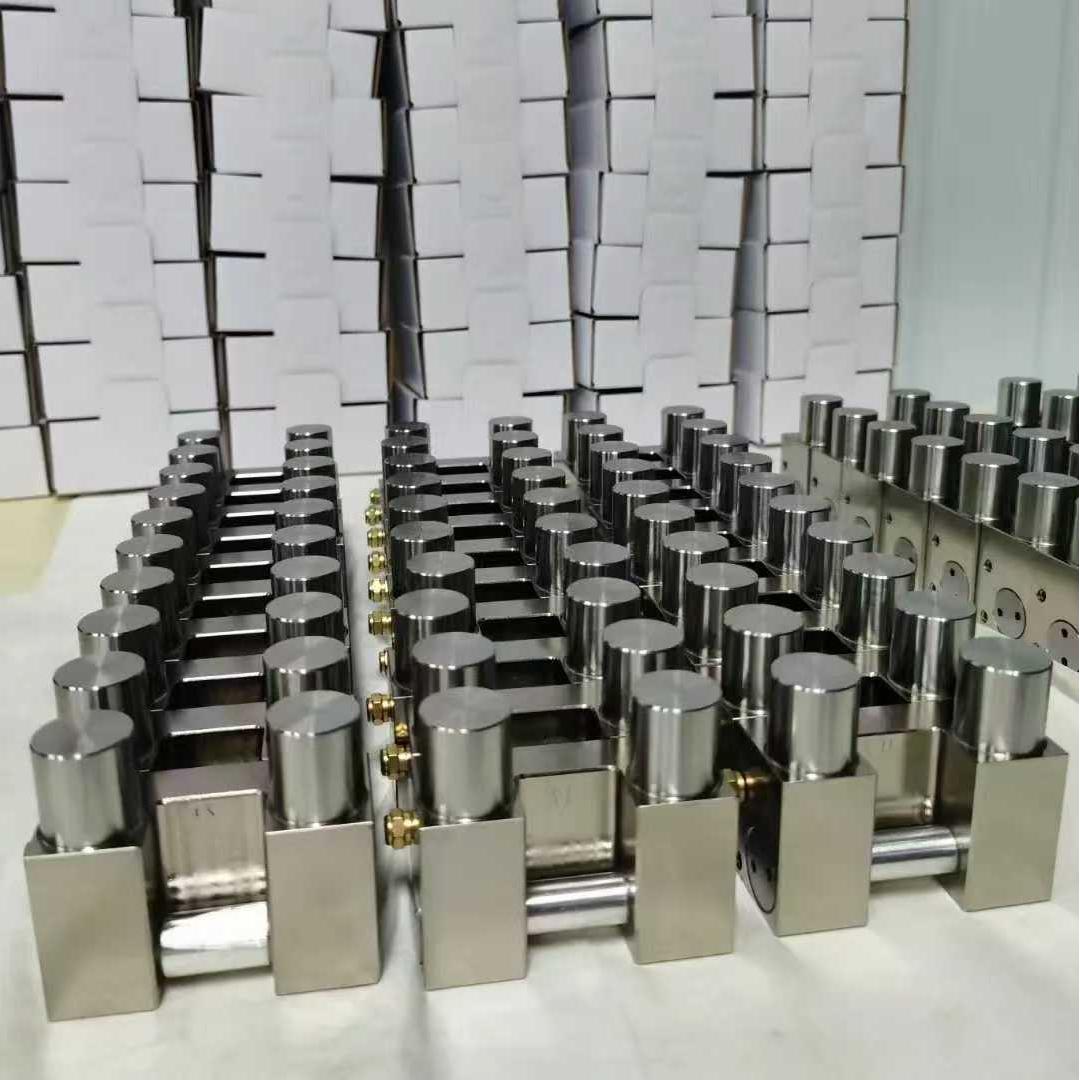

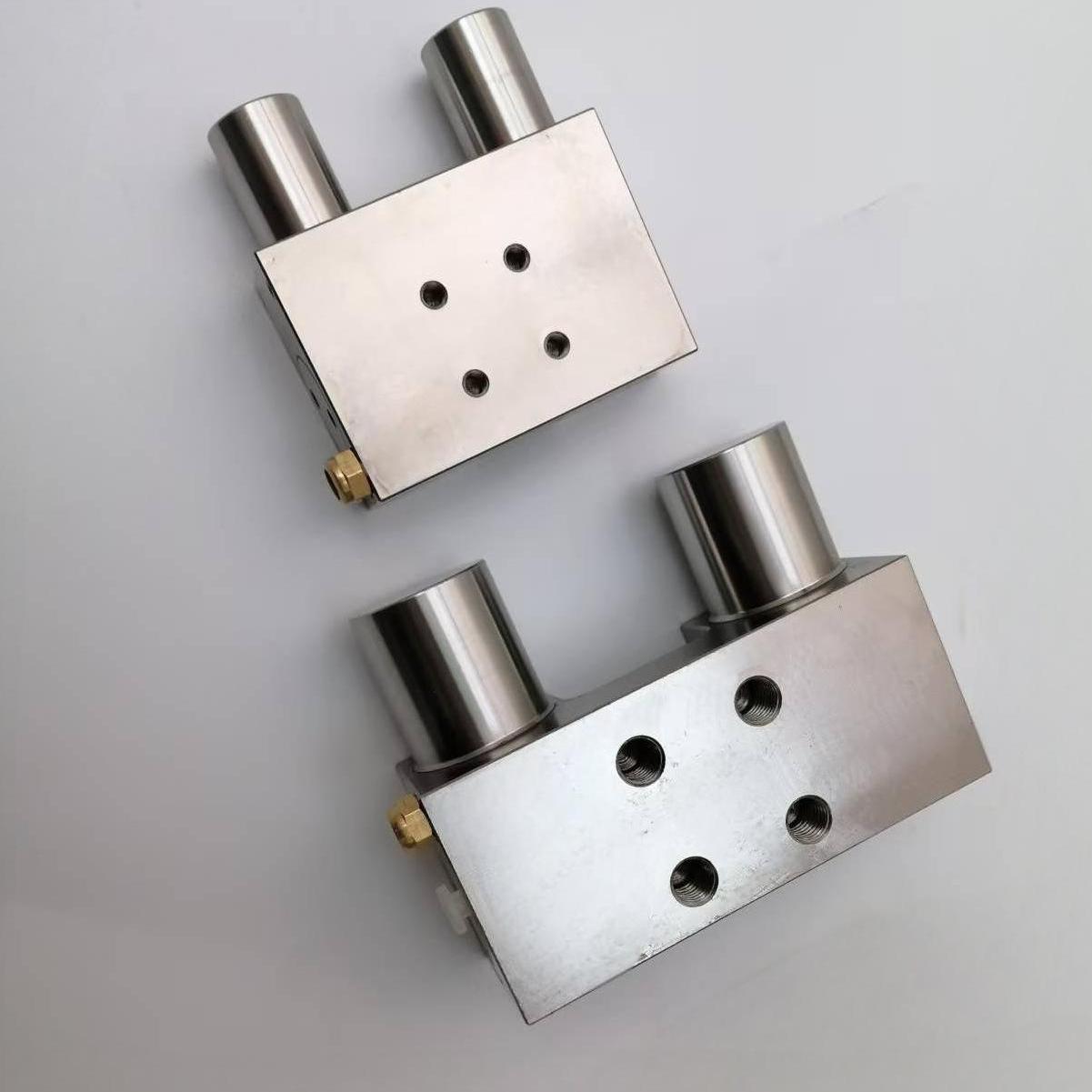

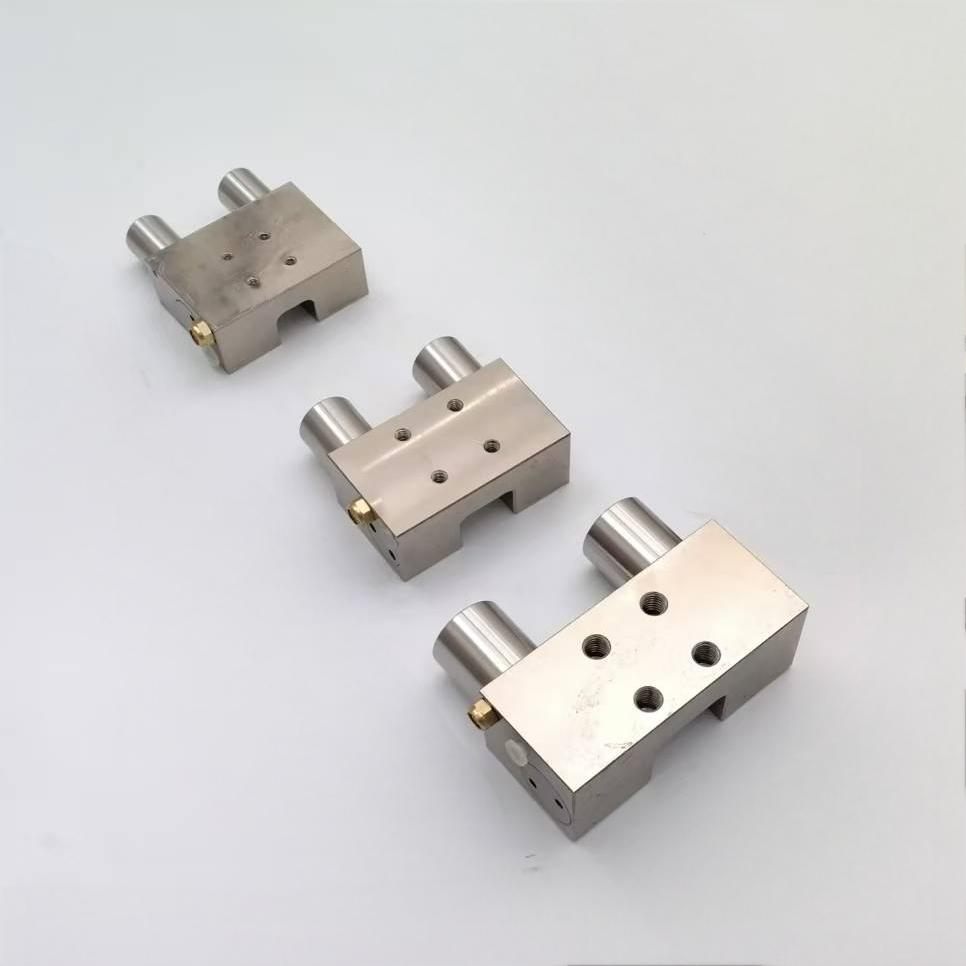

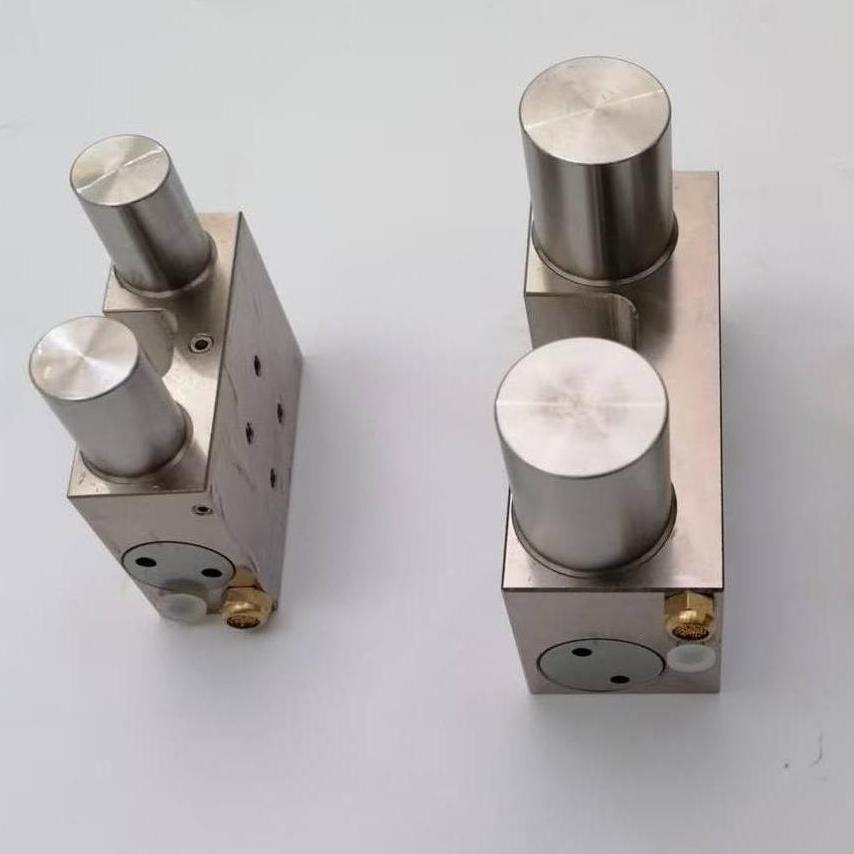

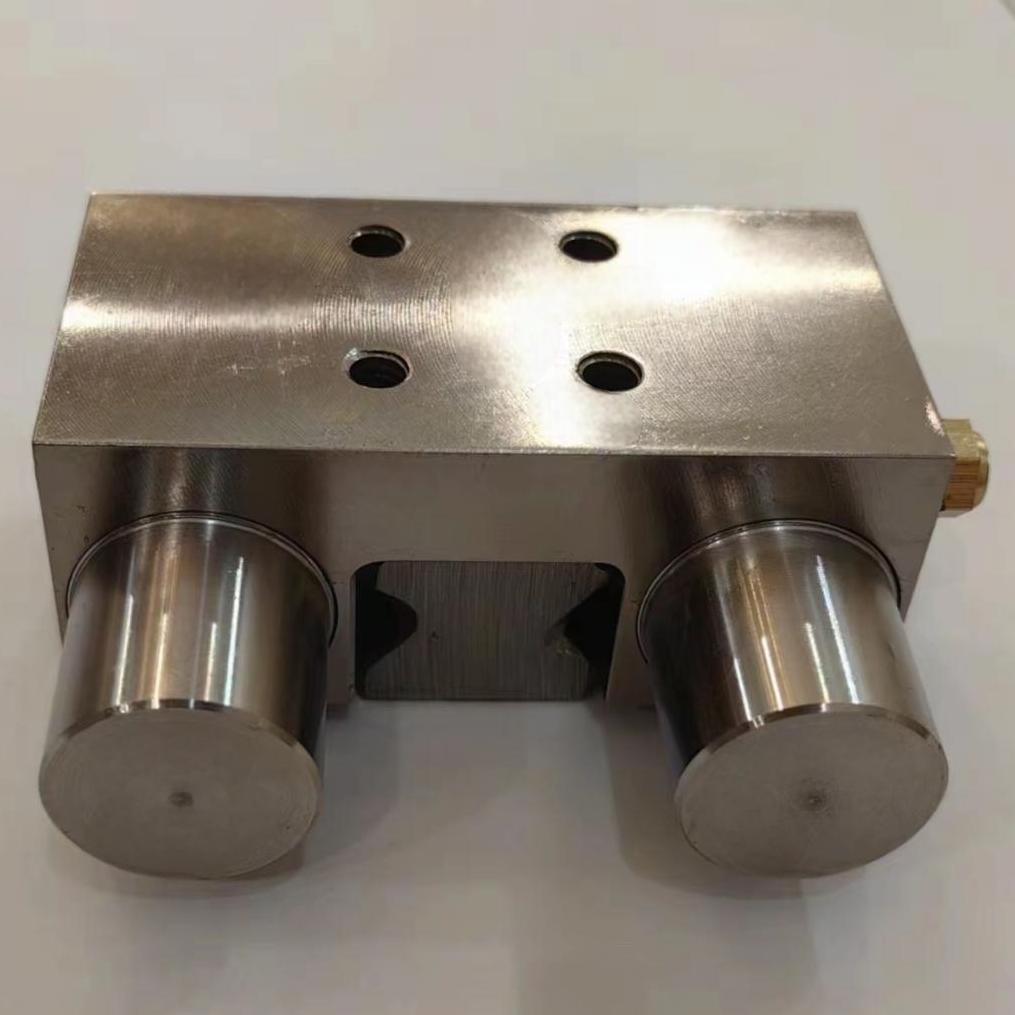

Pneumatic Normally Closed Braking Clamp for 30mm Linear Rail
Designed for 30mm linear guide rails,it significantly dampens operational vibration while reinforcing structural rigidity and operational safety.This clamp braking is in clamped state when not supplied with air and in unclamped state when supplied with air.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 30mm |
| Rated holding force(N) | 1050/2600N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Linear Guide Clamp Braking Key Advantages:
Lead time:Within 3 days.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides

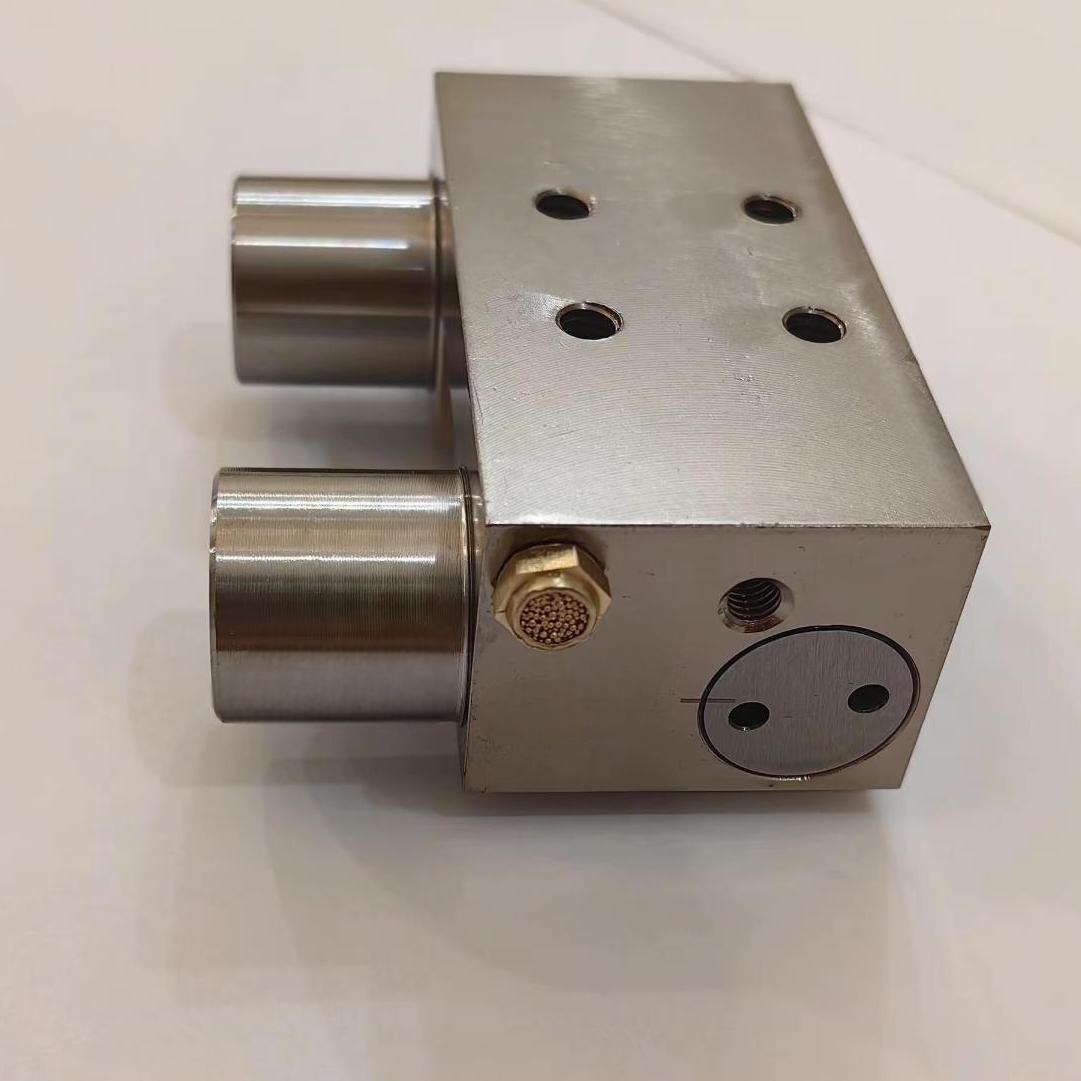

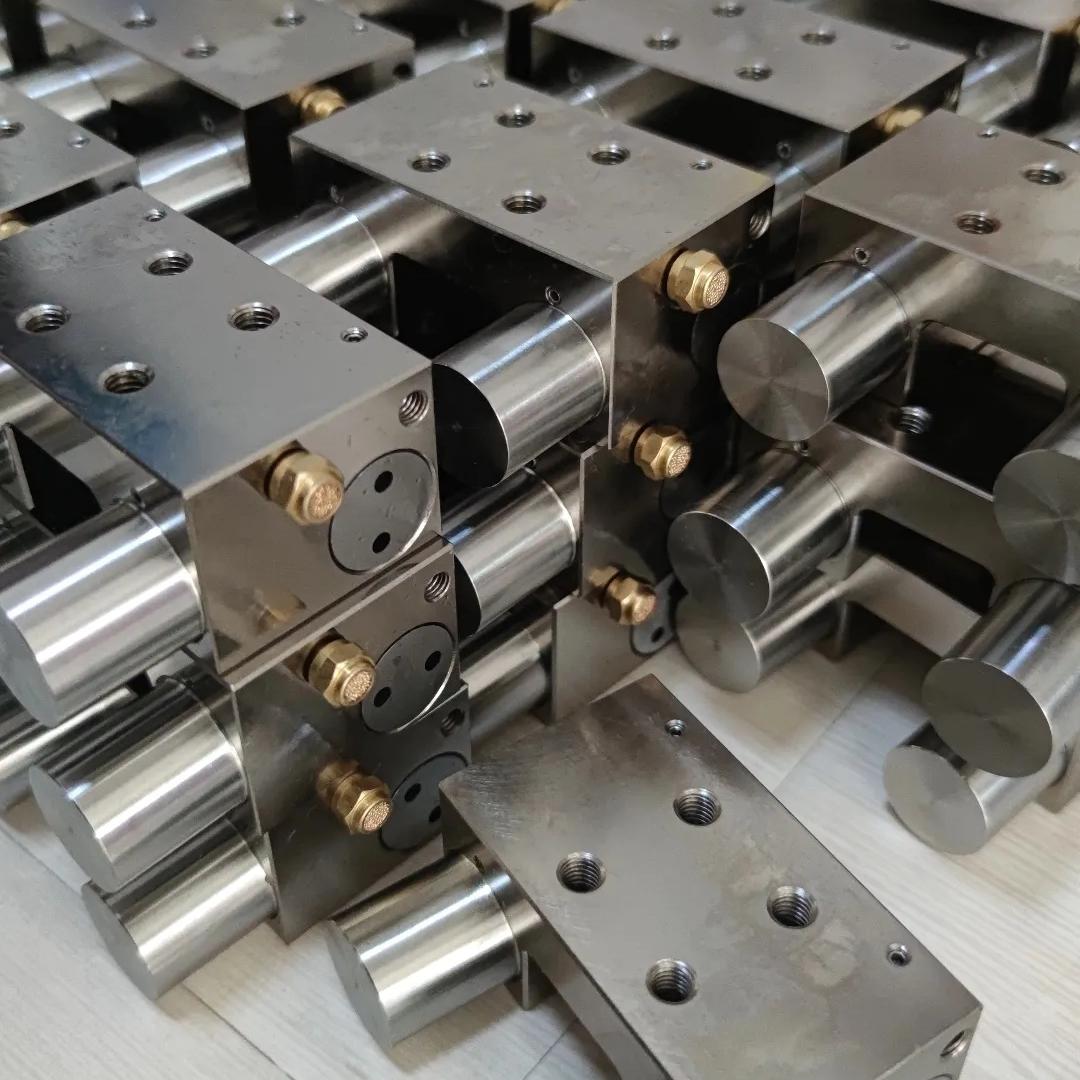

Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 30mm rail profiles.

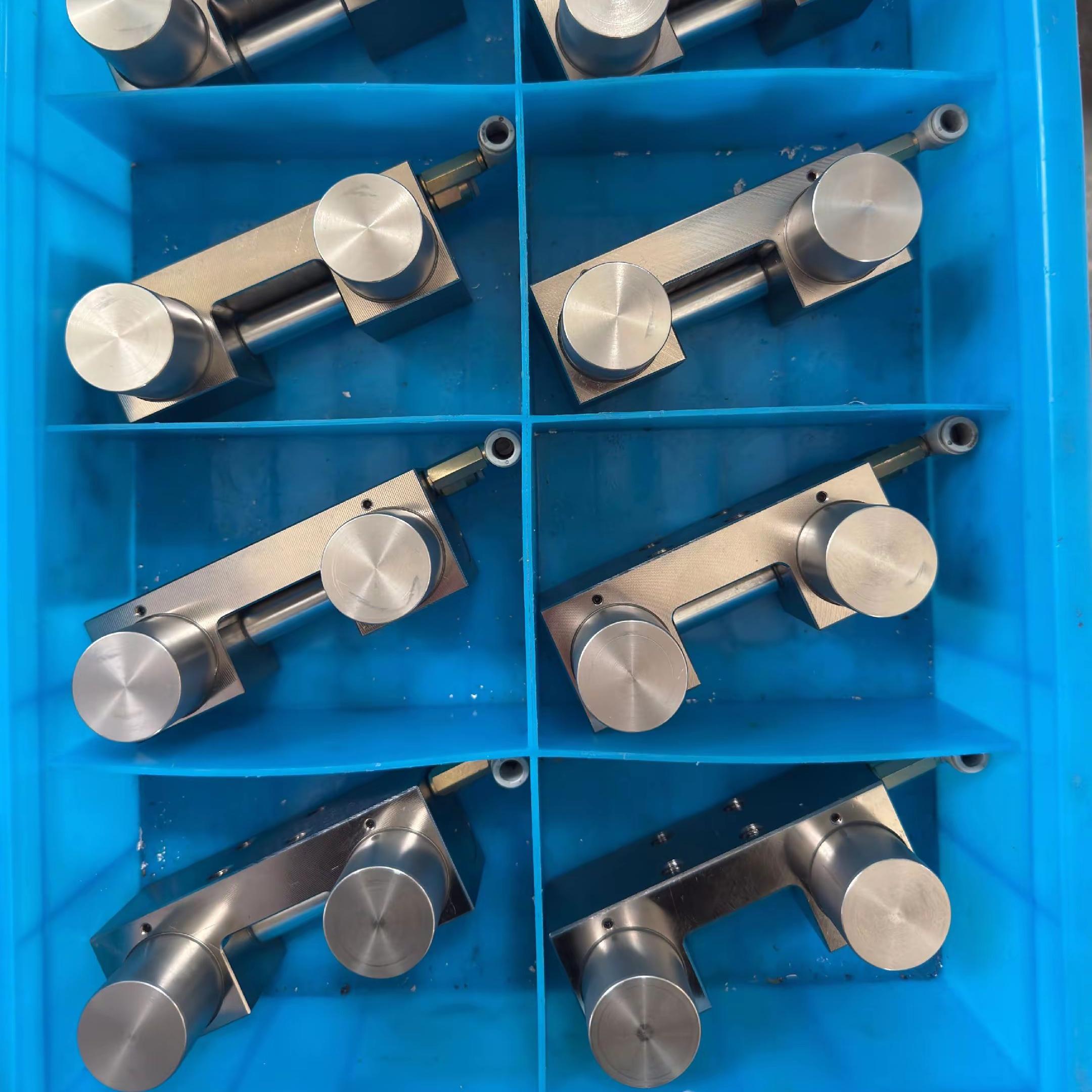

Pneumatic Normally Close Clamp Brake Video
