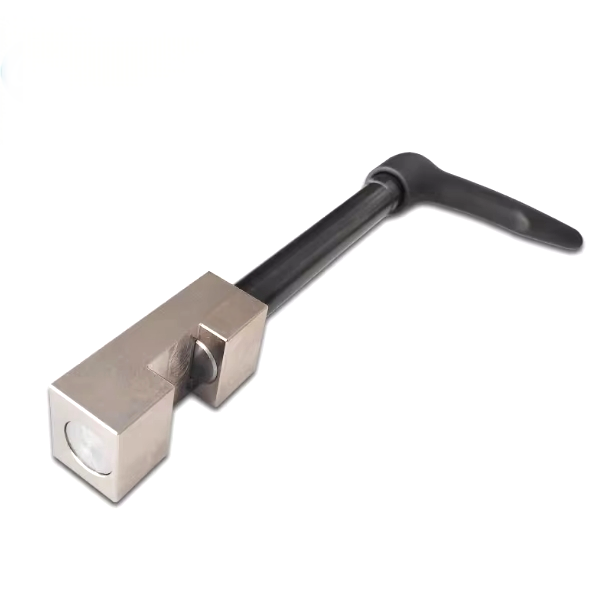

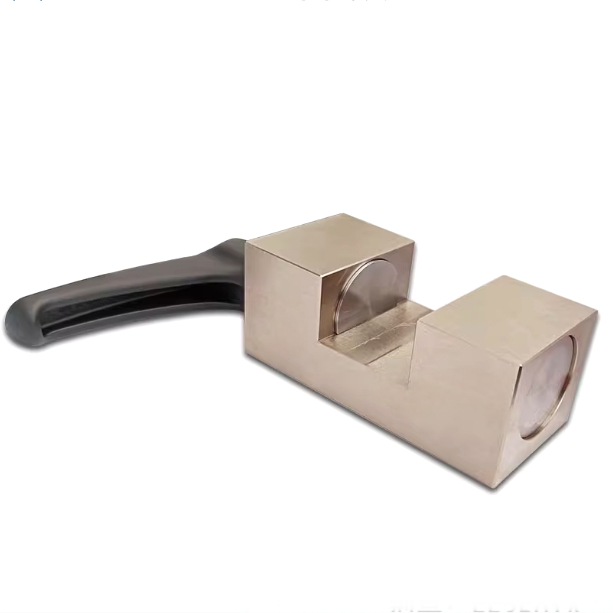

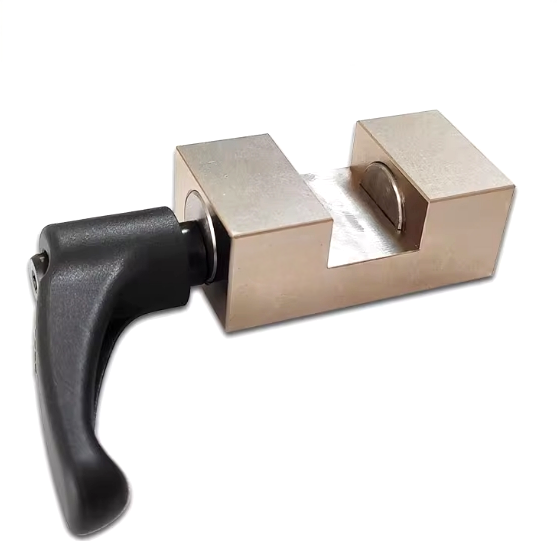

Manual Brake Clamp for HGH30CA HGW30CA Linear Rail
This clamp is suitable for HGH30CA and HGW30CA guide rails,and is clamped by manually rotating the handle.The linear guide clamp has the functions of fixing the slide,accurately positioning,and preventing vibration.
| Clamp Types | Manual |
| Applicable guideway sizes | 30mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |

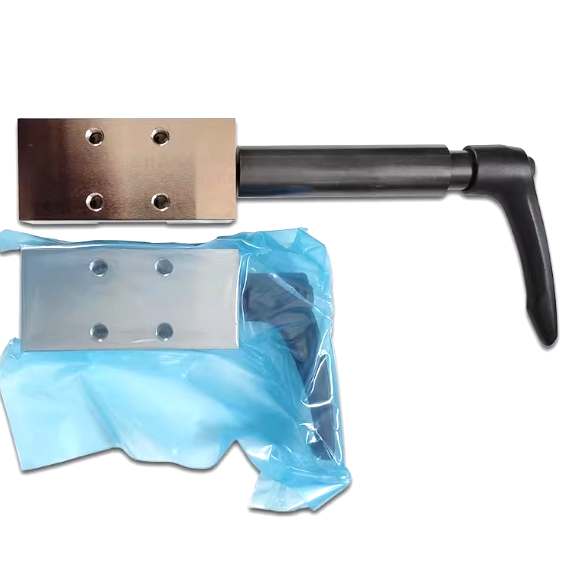

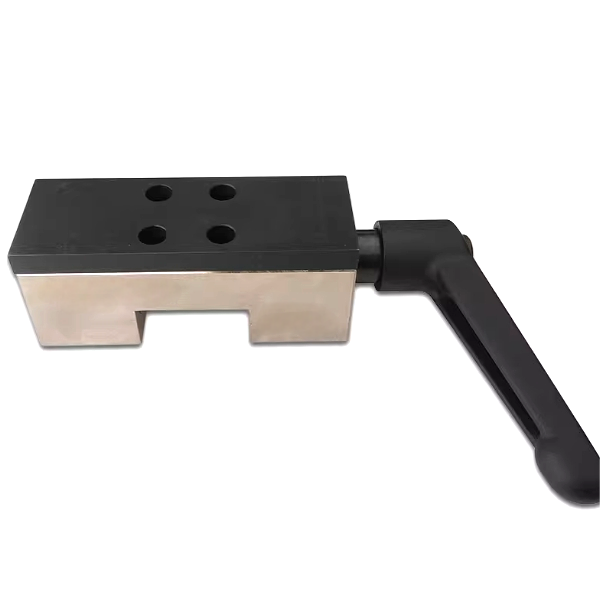

Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Advantages of Our Manual Clamp Brake：
35% cost savings.
Lead time within 5days.

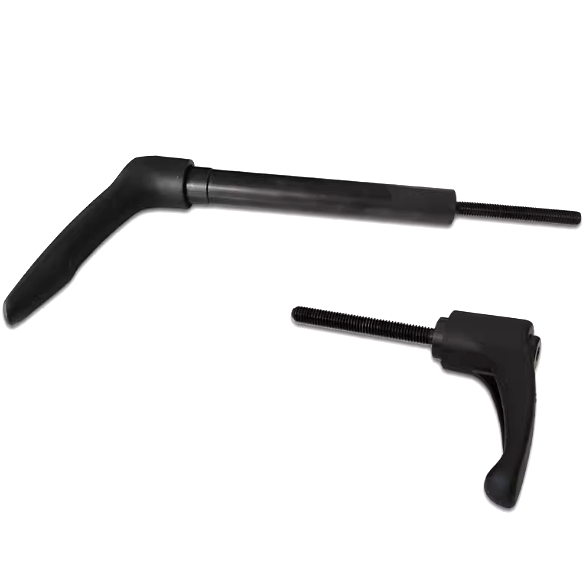

Standard or extended handles are available.
Fully compatible alternative to Zimmer HK-series linear clamps.
Customize linear guide clamp dimensions to match your specific setup.
Featuring a high-grade electroless nickel-plated finish,the clamp resists rust,ensuring extended service life in demanding conditions.
Download manual linear guide clamp size table.png
