Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:4.76x2.54 ACME screws and nuts will be custom-produced according to your requirements or drawings

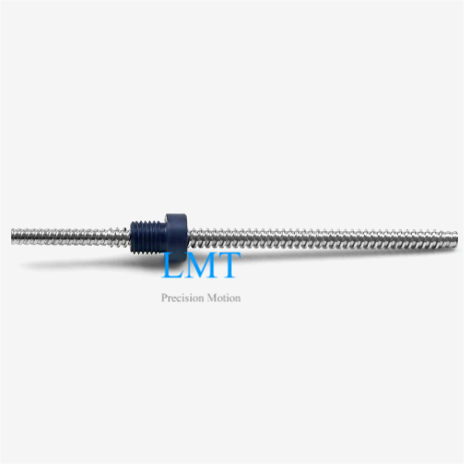

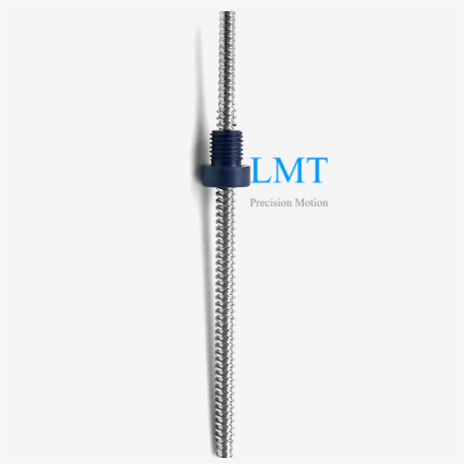

4.76x2.54 ROHS Compliant Cold Rolled ACME Screw with Nut:This precision ACME threaded rod features a 4.76mm diameter and 2.54mm lead,manufactured from corrosion-resistant stainless steel.Utilizing a cold-rolling process,it achieves an ultra-smooth surface finish ideal for low-friction,high-efficiency motion in confined spaces.Both screws and matching nuts are custom-produced to your requirements.
Diameter | 4.76mm |
Lead | 2.54mm |
| Pitch | 1.27mm |
| Number of starts | 2 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
4.76x2.54 ACME Screw and Nut Advantages:
MOQ: 1 pc.
Lead Time: Within 12 days.
Cost-Effective:15%~35% cost savings.
All lead screw and nut components comply with ROHS and CE standards.
Lightweight Design:Compact 4.76mm diameter structure for space-constrained equipment.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
4.76x2.54 ROHS Compliant Cold Rolled ACME Screw with Nut:This precision ACME threaded rod features a 4.76mm diameter and 2.54mm lead,manufactured from corrosion-resistant stainless steel.Utilizing a cold-rolling process,it achieves an ultra-smooth surface finish ideal for low-friction,high-efficiency motion in confined spaces.Both screws and matching nuts are custom-produced to your requirements.
Diameter | 4.76mm |
Lead | 2.54mm |
| Pitch | 1.27mm |
| Number of starts | 2 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
4.76x2.54 ACME Screw and Nut Advantages:
MOQ: 1 pc.
Lead Time: Within 12 days.
Cost-Effective:15%~35% cost savings.
All lead screw and nut components comply with ROHS and CE standards.
Lightweight Design:Compact 4.76mm diameter structure for space-constrained equipment.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
