Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:T10x12 trapezoidal screw and nut will be produced according to your requirements or drawings

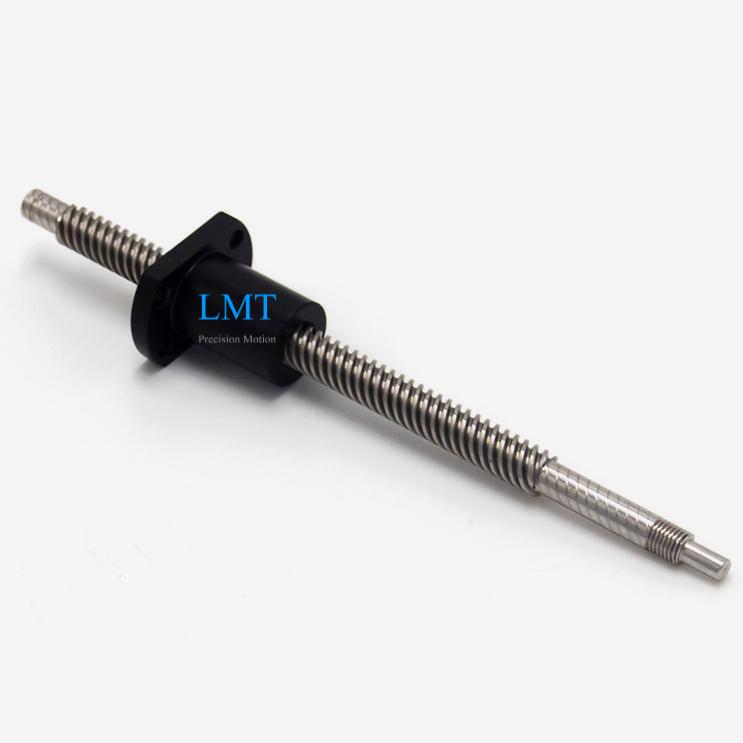

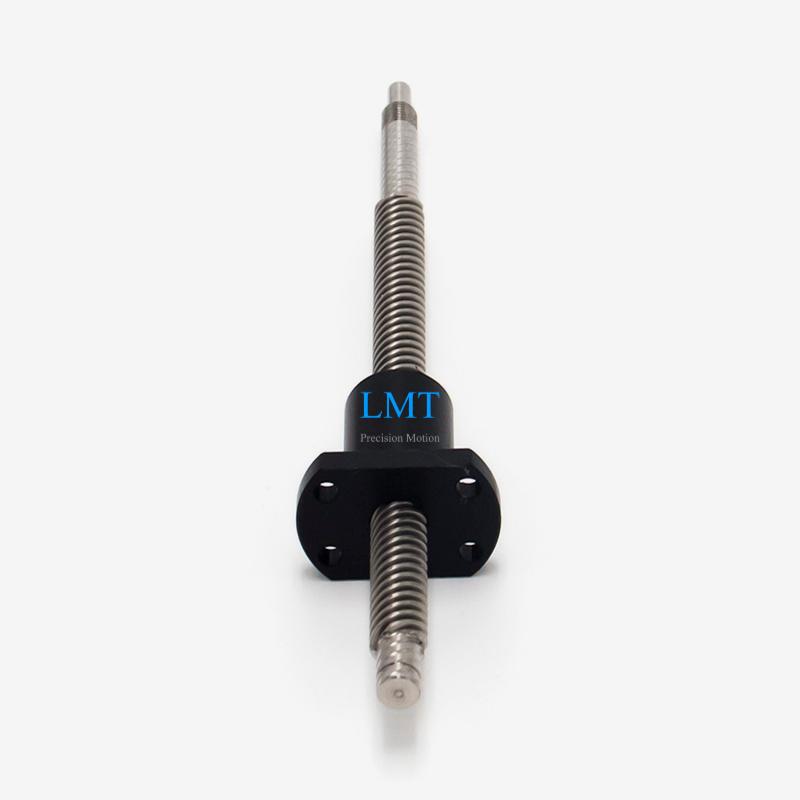

Tr10x12 ROHS Compliant Rolled Stainless Steel Lead Screw with Nut:This trapezoidal lead screw features a 10mm diameter and 12mm lead,manufactured from corrosion-resistant stainless steel.Utilizing cold-rolled processing,it achieves an ultra-smooth surface finish.Engineered for smooth,high-speed,low-noise operation,it delivers exceptional performance.Compatible with various nut designs,both T10x12 lead screw and matching nuts are customizable to meet specific application requirements.
Specification:
Diameter | 10mm |
Lead | 12mm |
Pitch | 2mm or 1.5mm |
| Number of starts | 6 or 8 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Tr10x12 Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:15% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Customized Service:The T10x12 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
