T5x4

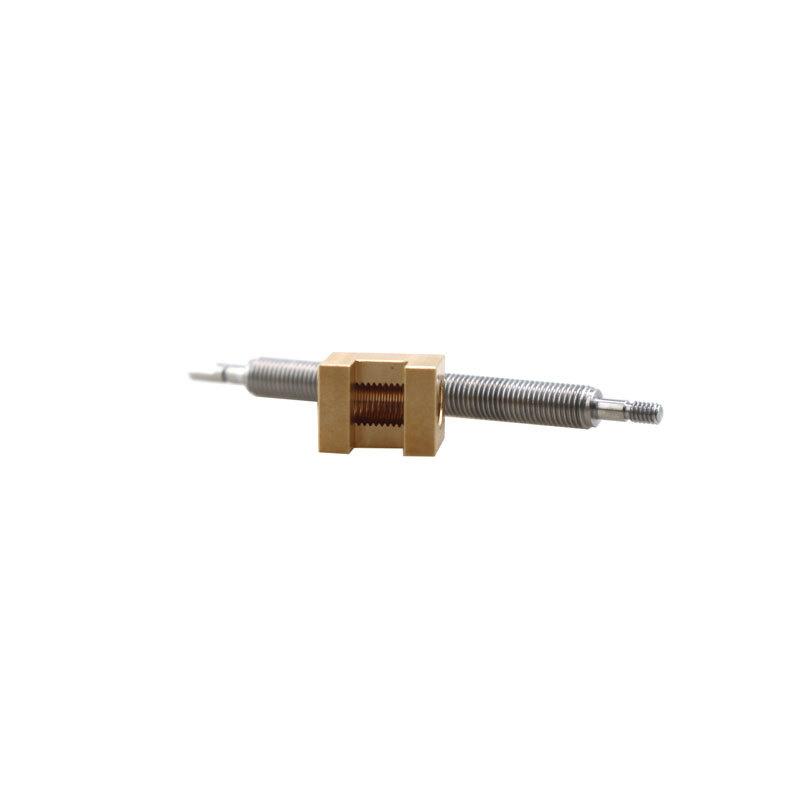

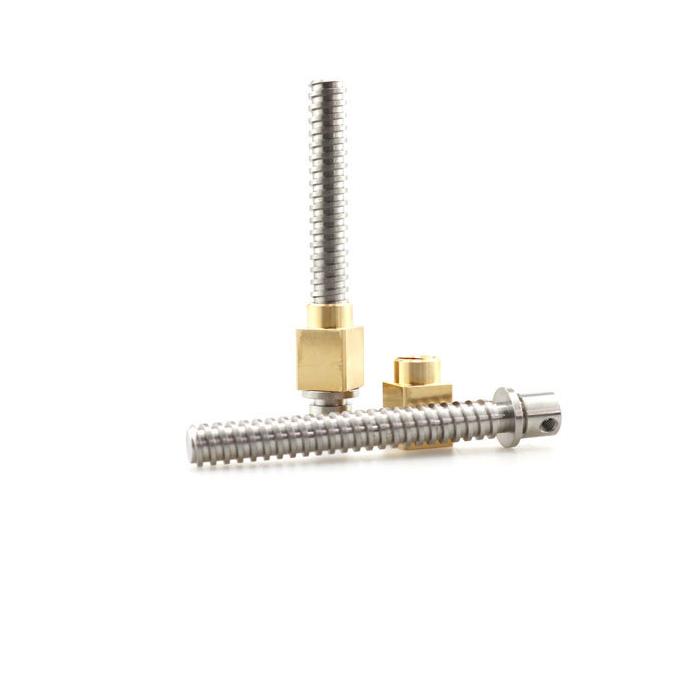

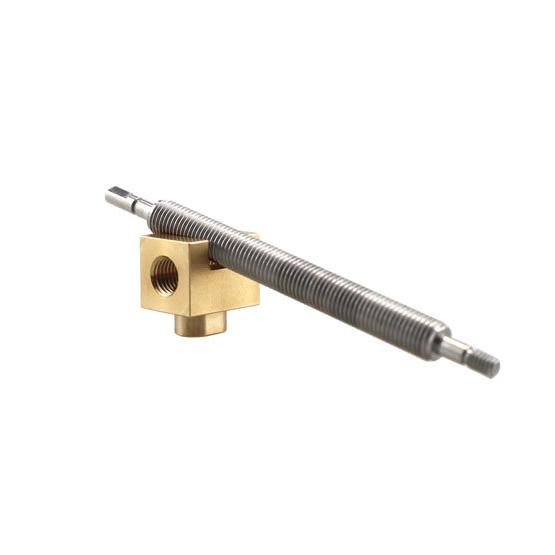

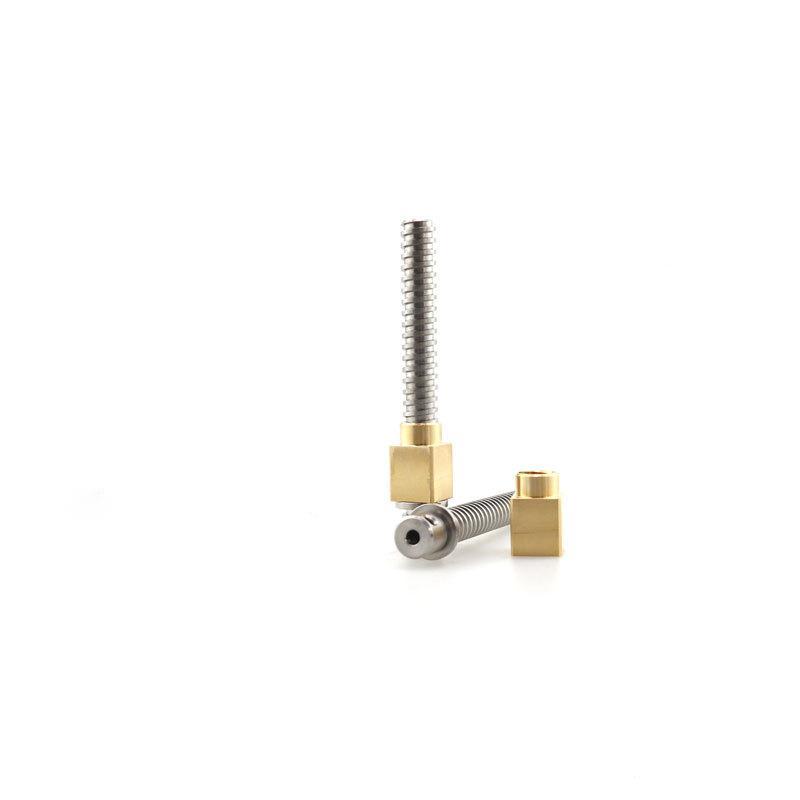

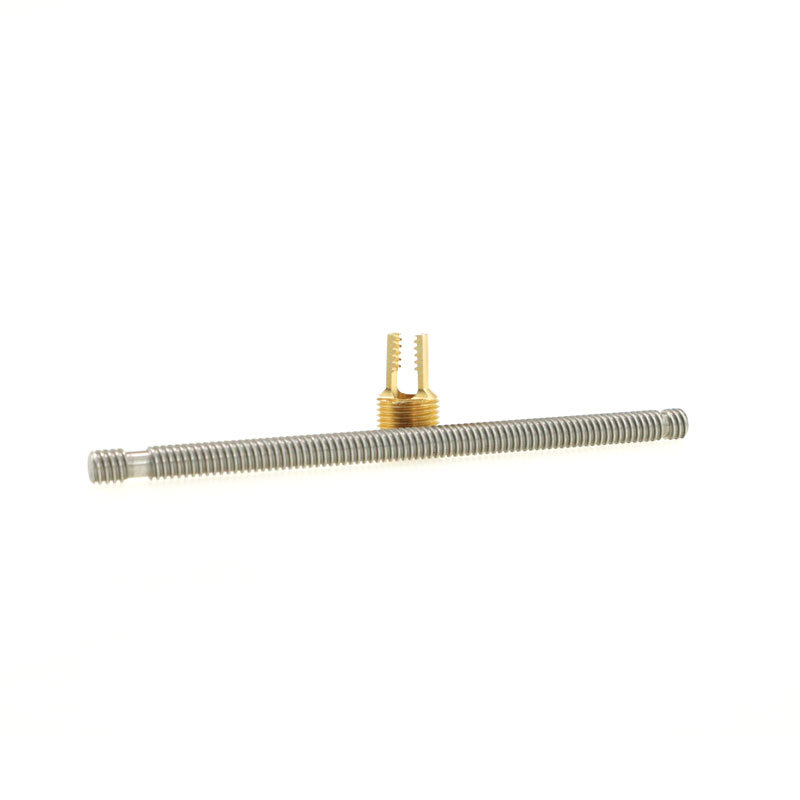

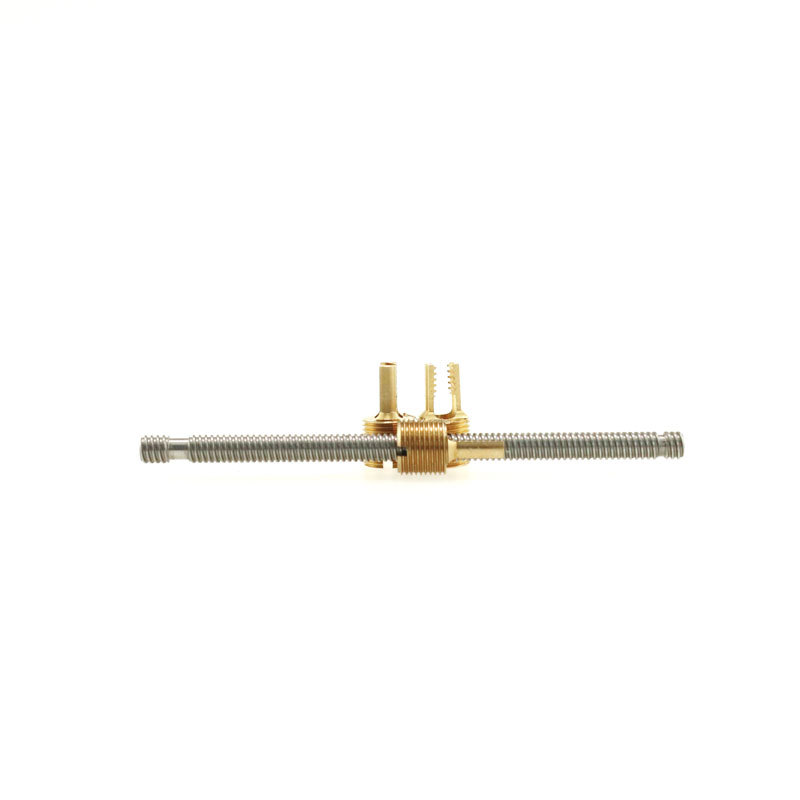

Diameter 5mm Lead 4mm T5x4 Trapezoidal Screw
T5x4 lead screw diameter is 5mm,lead is 4mm.Lead screw shaft end machining and nut will be produced according to your requirements.
Diamter | 5mm |
Lead | 4mm |
Pitch | 1mm |
| Number of starts | 4 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Contact our sales to customize your trapezoid screw and nut!
