Diameter 5mm Lead 1mm Tr5x1 Trapezoidal Screw

This product shows the models we can produce.

Lead screw material,screw length,screw shaft end machining,screw surface coating,nut shape,nut dimension,nut material will be customized according to your requirements or drawing.

Customized product MOQ: 1pc

Customized product lead time: 10~15days

Model:
T5x1


Availability:



Inquire Add to Basket

Product Description

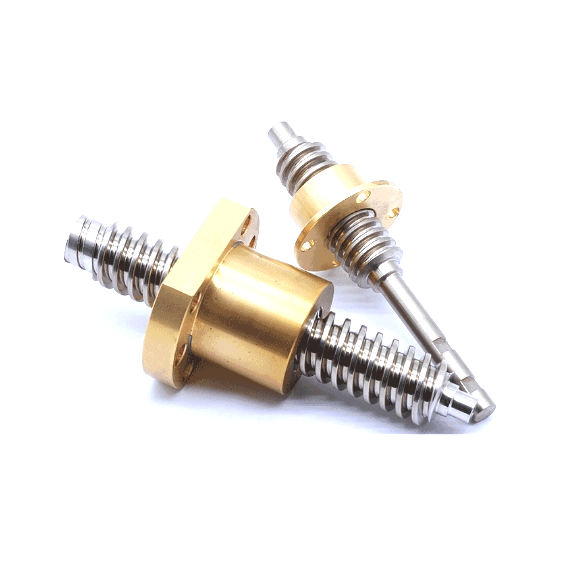

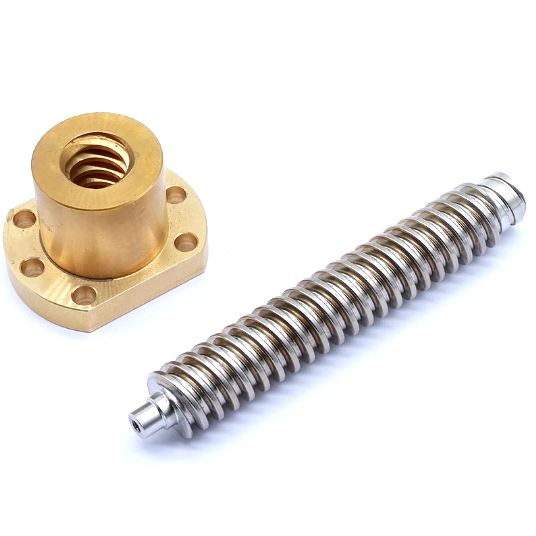

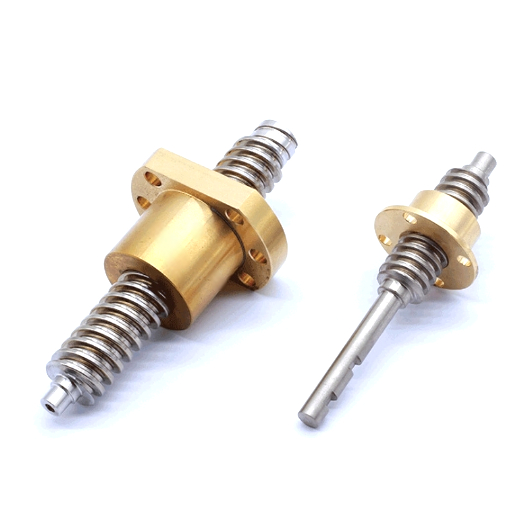

Diameter 5mm Lead 1mm Tr5x1 Trapezoidal Screw

Featuring a 5mm nominal diameter and a 1mm lead,this lead screw utilizes a trapezoidal thread profile(30° flank angle),which ensures smooth motion,minimal backlash,and enhanced durability under repetitive use.

Diamter	5mm
Lead	1mm
Pitch	1mm
Number of starts	1

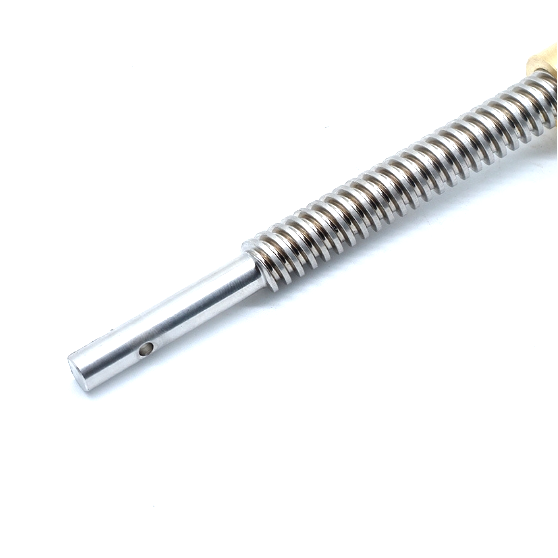

Screw shaft end machining and length	According to your requirement or drawing
Nut shape and dimension	Be customized according to your needs
Thread Direction	Right hand thread/left hand thread/right and left hand thread

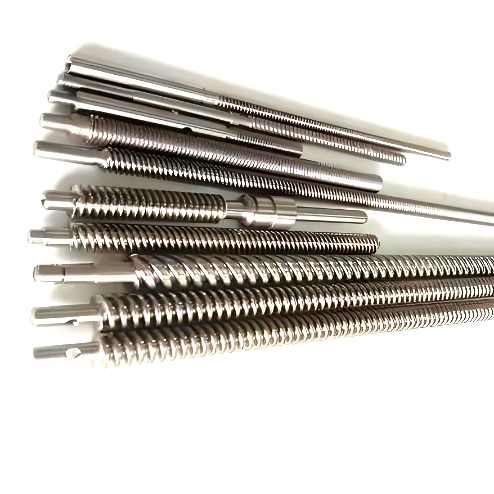

Screw material	S45C/ SS303/SS304/SS316

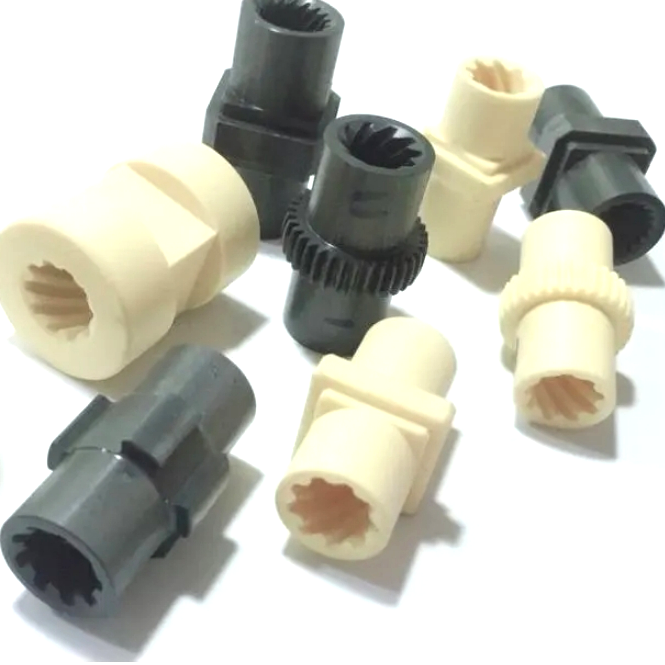

Nut material	Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C
Popular surface coatings	Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.
