Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:6.35×3.175 ACME screw and nut will be produced according to your requirements or drawings

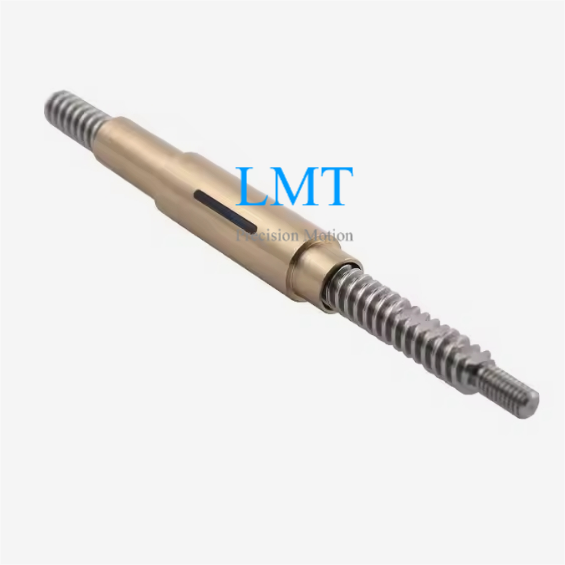

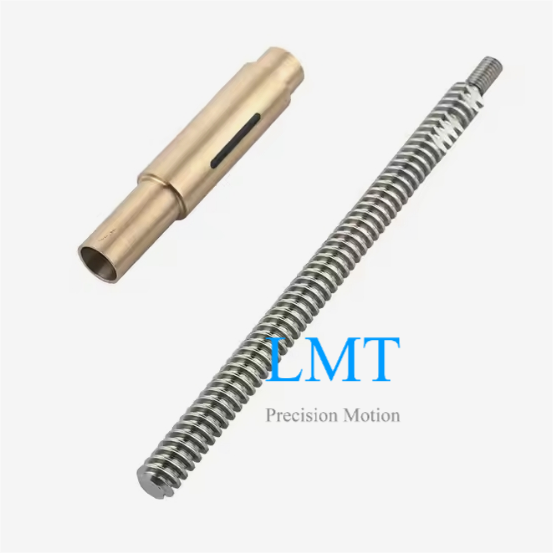

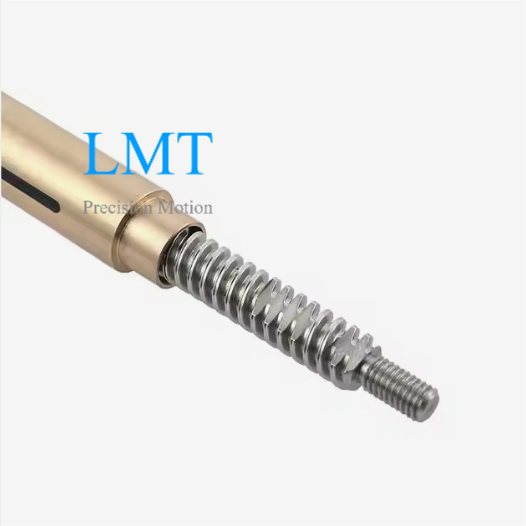

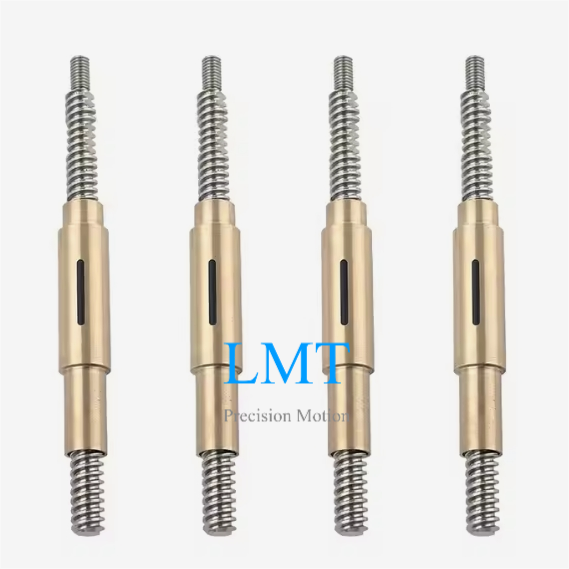

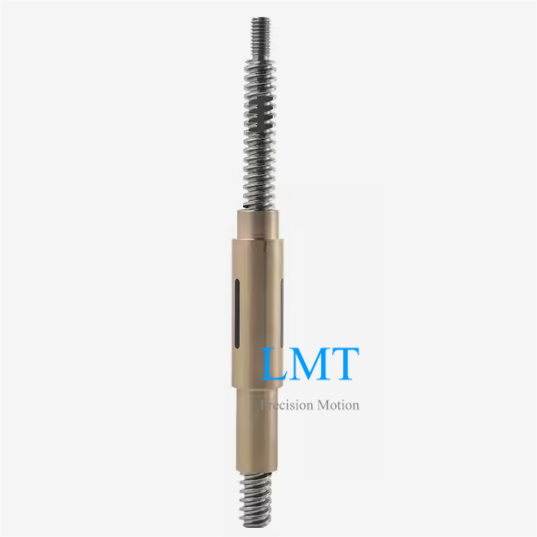

6.35×3.175 Diameter 6.35mm Lead 3.175mm ACME Screw with Round Nut
Ideal for space-constrained automation,this 6.35mm diameter ACME screw delivers a 3.175mm lead with cold-rolled precision and mirror-grade surface finish.Paired with a low-profile round nut,it minimizes assembly footprint while ensuring smooth,vibration-free travel.Optimized for high-volume production,every component maintains rigorous dimensional consistency and repeatable performance
Specification：
Diameter | 6.35mm |
Lead | 3.175mm |
Pitch | 1.5875mm |
| Number of starts | 2 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
6.35x3.175 ACME Screw and Nut Advantages:
15%~40% Cost savings
Fast Delivery ≤12 days
Fully Customizable:Tailor screw length,screw shaft end,nut shape,nut material and thread profiles to your exact needs.
Smooth & Quiet Operation:Minimizes friction and eliminates noise,crucial for sensitive environments.
Consistent Accuracy:Provides reliable,repeatable motion over extended periods.
6.35×3.175 Diameter 6.35mm Lead 3.175mm ACME Screw with Round Nut
Ideal for space-constrained automation,this 6.35mm diameter ACME screw delivers a 3.175mm lead with cold-rolled precision and mirror-grade surface finish.Paired with a low-profile round nut,it minimizes assembly footprint while ensuring smooth,vibration-free travel.Optimized for high-volume production,every component maintains rigorous dimensional consistency and repeatable performance
Specification：
Diameter | 6.35mm |
Lead | 3.175mm |
Pitch | 1.5875mm |
| Number of starts | 2 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
6.35x3.175 ACME Screw and Nut Advantages:
15%~40% Cost savings
Fast Delivery ≤12 days
Fully Customizable:Tailor screw length,screw shaft end,nut shape,nut material and thread profiles to your exact needs.
Smooth & Quiet Operation:Minimizes friction and eliminates noise,crucial for sensitive environments.
Consistent Accuracy:Provides reliable,repeatable motion over extended periods.
