Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304

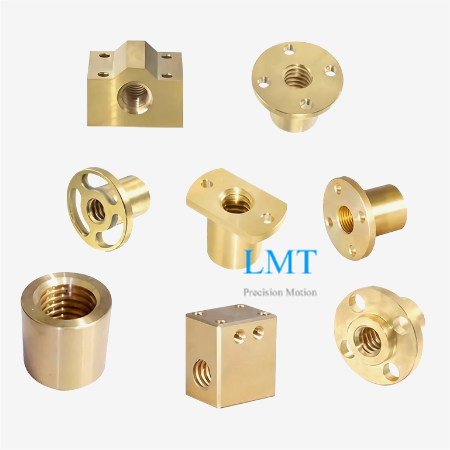

Customized Service:6.35×0.609 ACME screw and nut will be produced according to your requirements or drawings

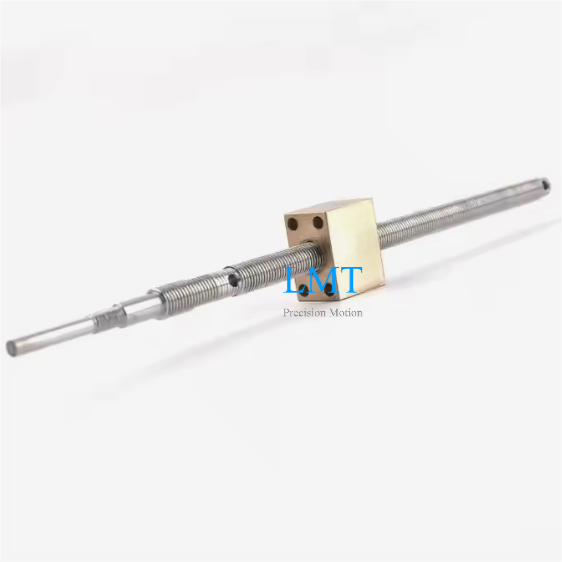

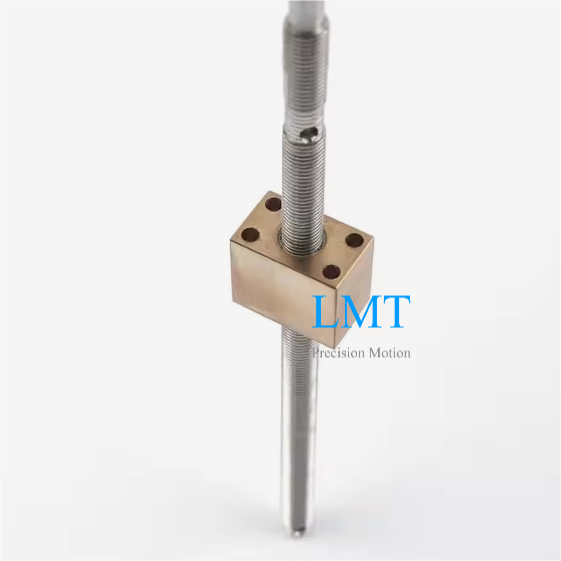

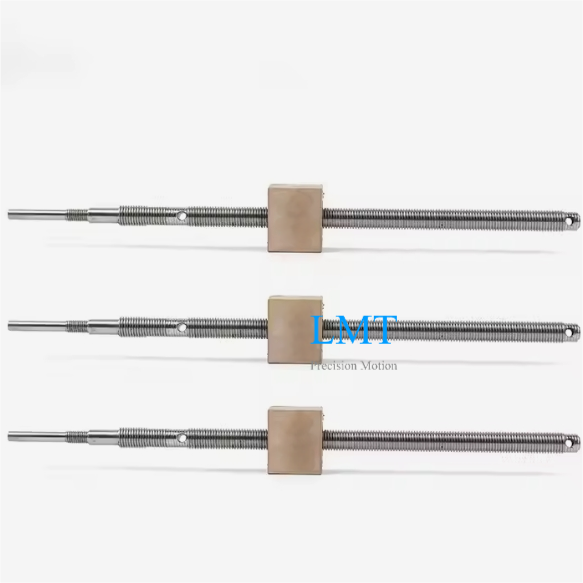

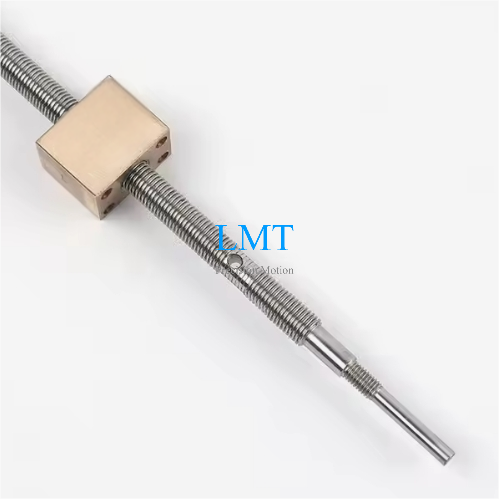

6.35×0.6096 Precision ACME Lead Screw Rod with Square Nut
Precision-engineered for smooth operation in tight spaces,this 6.35×0.6096 ACME Lead Screw Rod features a cold-rolled process delivering exceptional dimensional accuracy,superior strength,and a flawless surface finish.It comes perfectly matched with a square nut,ensuring easy installation,immediate functionality,and reliably low-friction motion ideal for demanding compact installations..
Specification：
Diameter | 6.35mm |
Lead | 0.6096mm |
Pitch | 0.6096mm |
| Number of starts | 1 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
6.35x0.6096 ACME Screw and Nut Advantages:
30% Cost Savings
Optimized rolled thread manufacturing reduces production costs while maintaining high precision.
Fast Delivery (≤12 Days)
Streamlined production and logistics ensure rapid turnaround for custom orders.
Fully Customizable
Tailor screw length,screw shaft end,nut shape,nut material and thread profiles to your exact needs.
Smooth & Quiet Operation
Minimizes friction and eliminates noise,crucial for sensitive environments.
Enhanced Durability
Rolled threads increase surface hardness and fatigue strength,significantly extending service life compared to cut threads.
Consistent Accuracy
Provides reliable,repeatable motion over extended periods.
