Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings

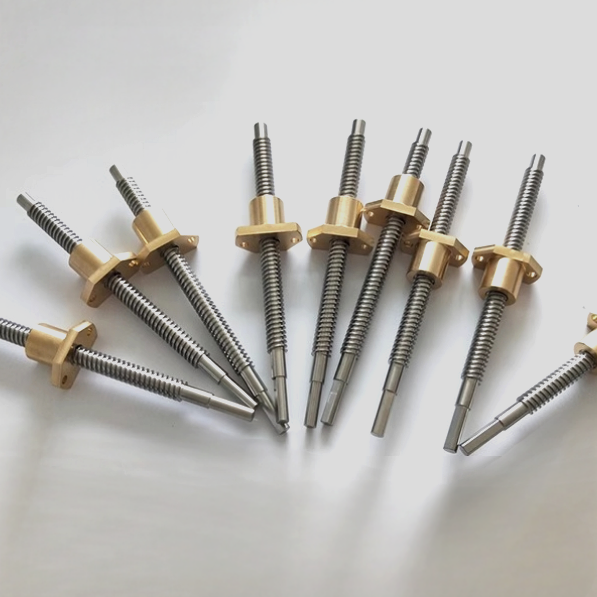

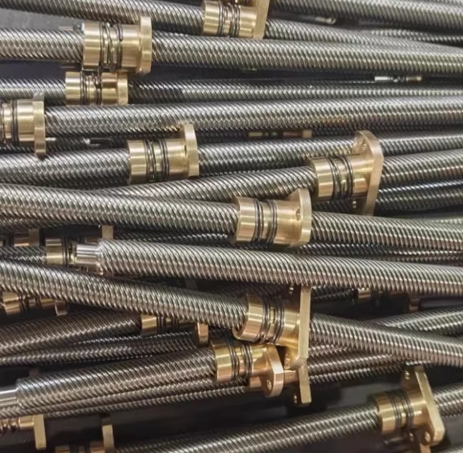

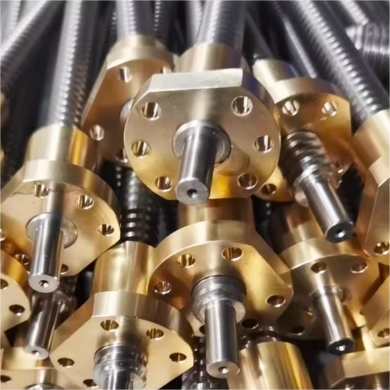

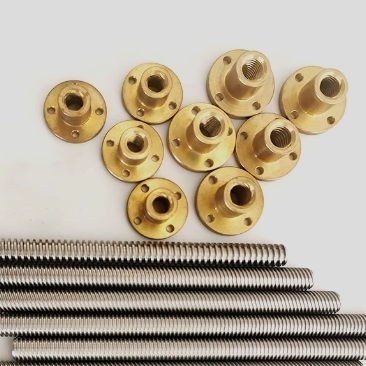

6.35x2.54 Dia 6.35mm Lead 2.54mm ACME Screw with Nut
Upgrade your machinery with our precision 6.35mm diameter,2.54mm lead ACME screw and nut.Crafted using advanced cold-rolling technology,this system delivers exceptional surface finish,near-silent operation,and industry-leading longevity—ideal for demanding applications where reliability and smooth motion are non-negotiable.
Specification：
Diameter | 6.35mm |
Lead | 2.54mm |
Pitch | 1.27mm |
| Number of starts | 2 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |

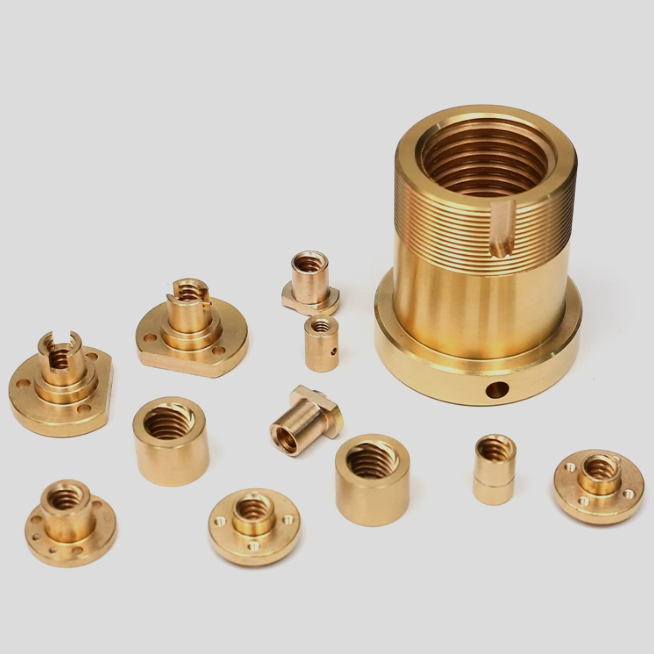

Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
6.35x2.54 ACME Lead Screw and Nut Advantages:
30% Cost Savings
Optimized rolled thread manufacturing reduces production costs while maintaining high precision.
Fast Delivery (≤12 Days)
Streamlined production and logistics ensure rapid turnaround for custom orders.
Fully Customizable
Tailor screw length,screw shaft end,nut shape,nut material and thread profiles to your exact needs.
Smooth Motion
Ultra-smooth movement with minimal friction for consistent performance.
6.35x2.54 Dia 6.35mm Lead 2.54mm ACME Screw with Nut
Upgrade your machinery with our precision 6.35mm diameter,2.54mm lead ACME screw and nut.Crafted using advanced cold-rolling technology,this system delivers exceptional surface finish,near-silent operation,and industry-leading longevity—ideal for demanding applications where reliability and smooth motion are non-negotiable.
Specification：
Diameter | 6.35mm |
Lead | 2.54mm |
Pitch | 1.27mm |
| Number of starts | 2 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
6.35x2.54 ACME Lead Screw and Nut Advantages:
30% Cost Savings
Optimized rolled thread manufacturing reduces production costs while maintaining high precision.
Fast Delivery (≤12 Days)
Streamlined production and logistics ensure rapid turnaround for custom orders.
Fully Customizable
Tailor screw length,screw shaft end,nut shape,nut material and thread profiles to your exact needs.
Smooth Motion
Ultra-smooth movement with minimal friction for consistent performance.
