Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings

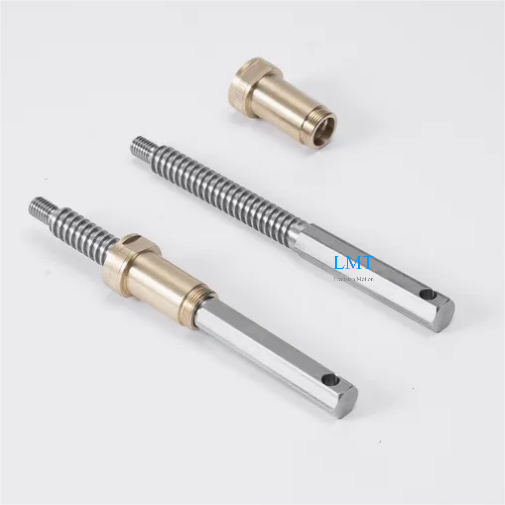

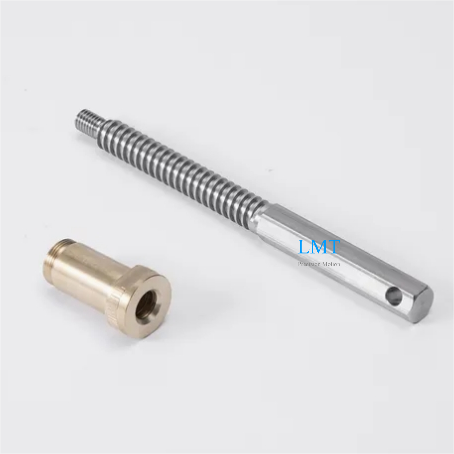

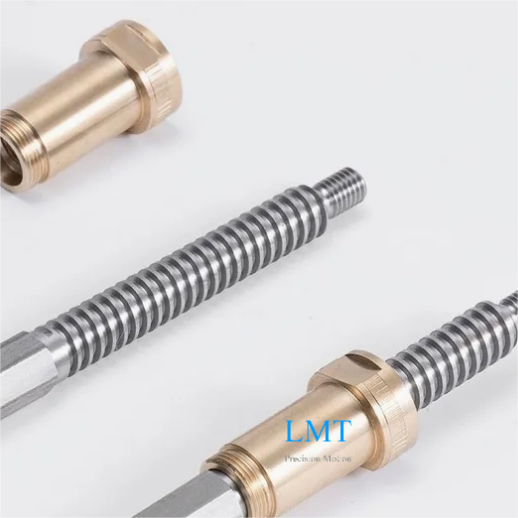

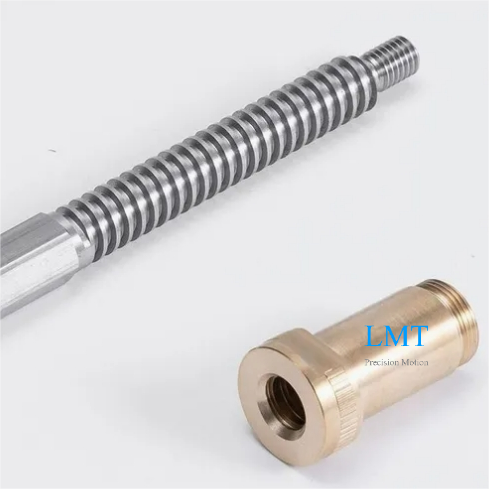

6.35x5 Diameter 6.35mm Lead 5mm ACME Screw Rod with Nut
Engineer superior motion control in tight spaces with our 6.35x5 ACME Screw and Nut Set.Featuring a compact 6.35mm diameter and 5mm lead,this miniature ACME screw delivers exceptional precision,smooth operation,and reliable power transmission for applications where space is critical.
Specification：
Diameter | 6.35mm |
Lead | 5mm |
Pitch | 1.667mm |
| Number of starts | 3 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
6.35x5 ACME Screw Rod and Nut Advantages:
30% Cost Savings
Optimized rolled thread manufacturing reduces production costs while maintaining high precision.
Fast Delivery (≤12 Days)
Streamlined production and logistics ensure rapid turnaround for custom orders.
Fully Customizable
Tailor screw length,screw shaft end,nut shape,nut material and thread profiles to your exact needs.
Smooth Motion
Ultra-smooth movement with minimal friction for consistent performance.
Optimized for Compact Designs
Ideal for robotics,medical devices,optics,and small machinery requiring high force in confined areas.
