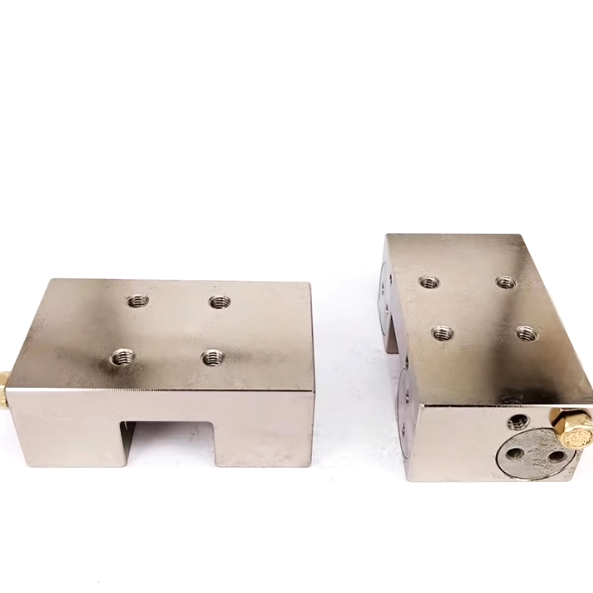

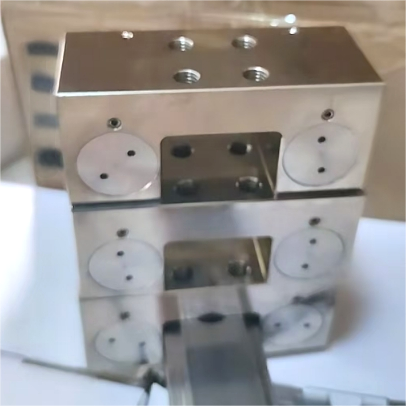

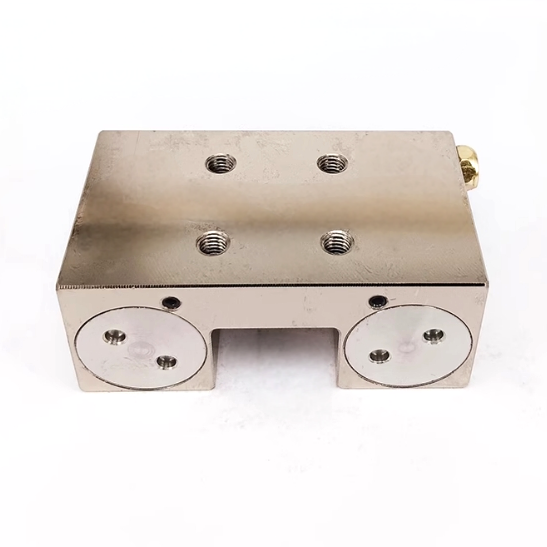

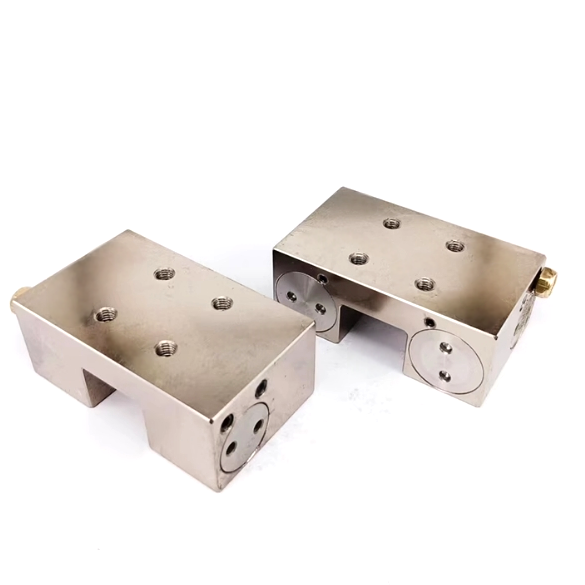

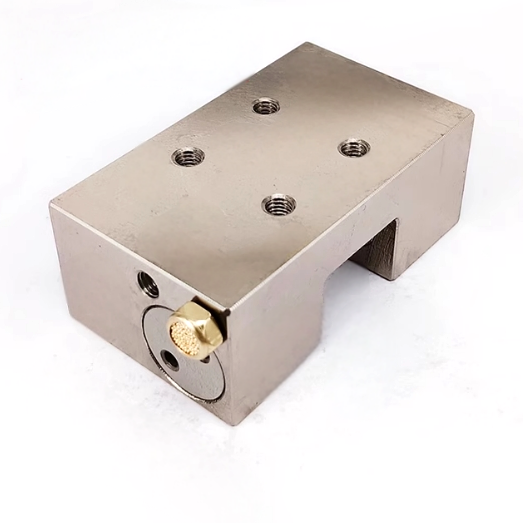

Alternative To MK1501A Pneumatic Normally Open 15mm Rail Clamp Fixture
This is a pneumatic normally open guide clamp fixture,which is in the loosening state when no air is supplied and in the clamping state when air is supplied.It is suitable for most brands of 15mm linear guides on the market. It can replace the popular MK series MK1501A guideway clamp in the market.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 15mm |
| Rated holding force(N) | 650N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Brake?
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK1501A Clamping Element.
High Durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Product Video
Alternative To MK1501A Pneumatic Normally Open 15mm Rail Clamp Fixture
This is a pneumatic normally open guide clamp fixture,which is in the loosening state when no air is supplied and in the clamping state when air is supplied.It is suitable for most brands of 15mm linear guides on the market. It can replace the popular MK series MK1501A guideway clamp in the market.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 15mm |
| Rated holding force(N) | 650N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Brake?
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK1501A Clamping Element.
High Durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
