LMKS15B

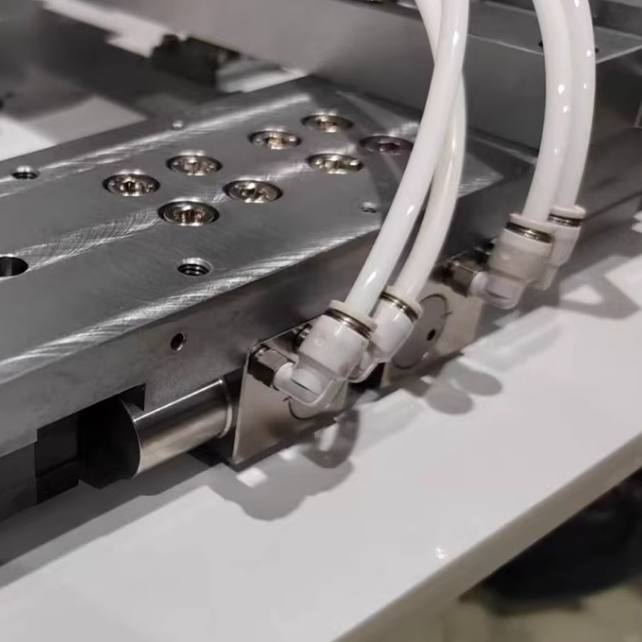

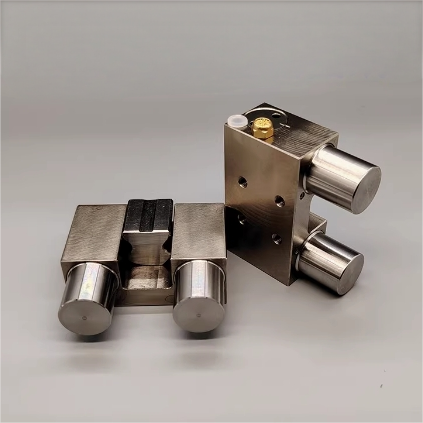

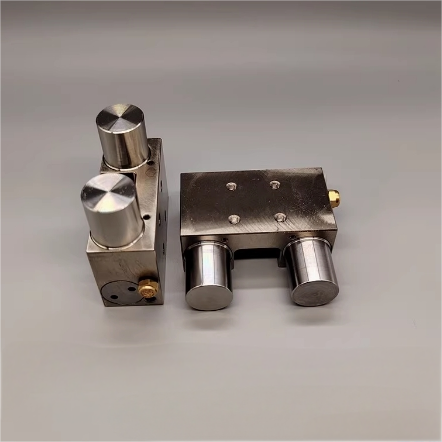

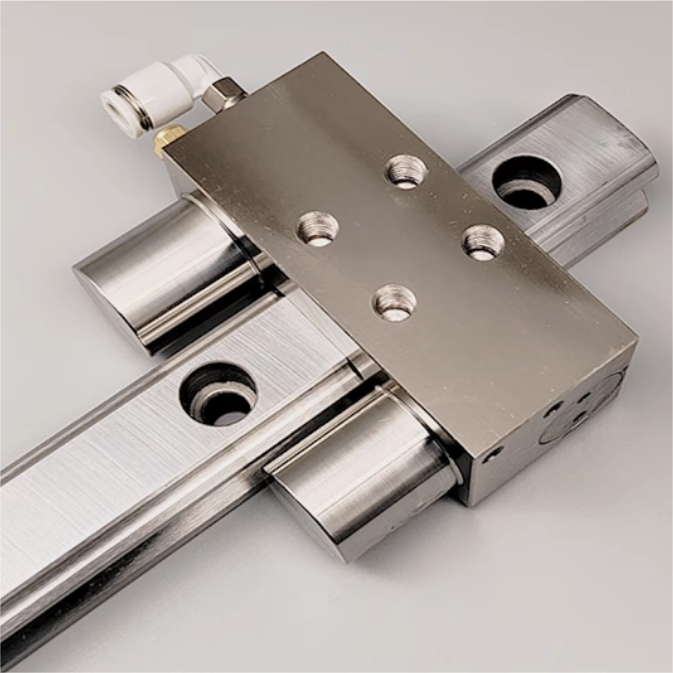

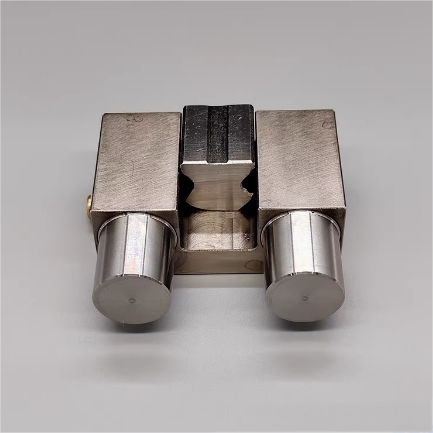

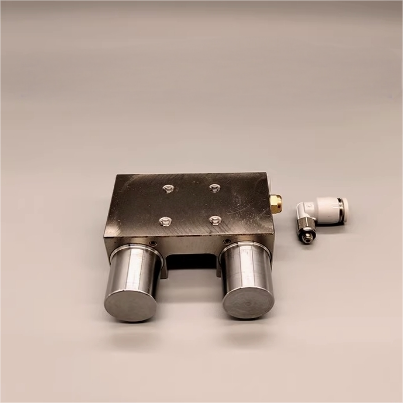

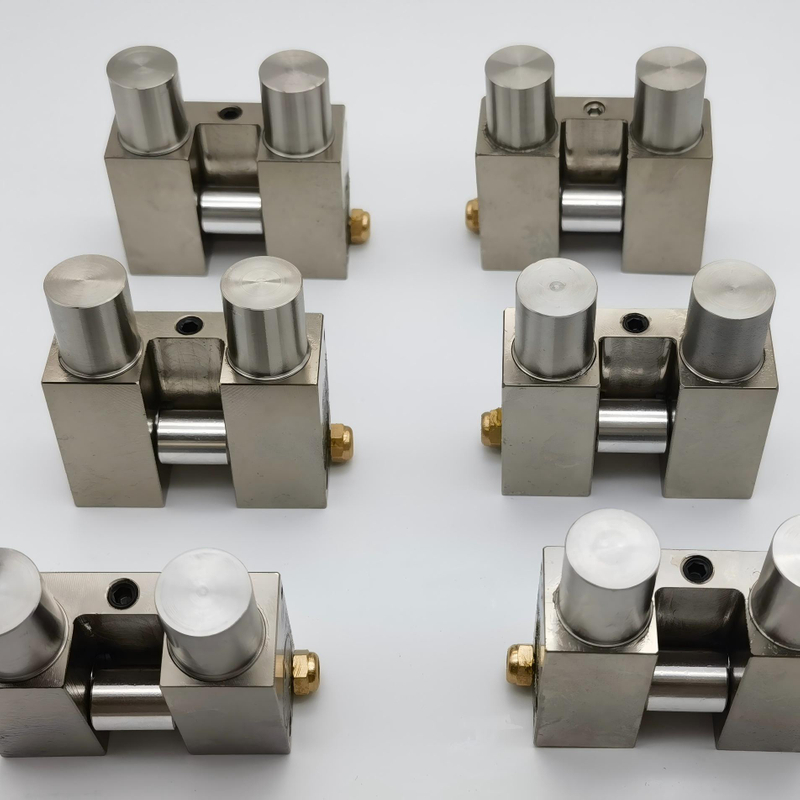

This normally closed pneumatic clamping device remains in a locked state when no air supply is provided,ensuring immediate braking action during power outages or emergency stops.Specifically engineered for compatibility with 15mm linear guide rails,such as HIWIN linear guides and other equivalent systems (e.g.,THK,TBI,or NSK),this clamp brake delivers reliable holding force to secure the motion platform firmly in place.Its robust construction and fail-safe design make it ideal for CNC machinery,robotic arms,automated assembly lines,and other equipment requiring precise positional control and safety compliance.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 15mm |
| Rated holding force(N) | 400/1050N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Key Advantages:
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 15mm rail profiles.
Enhanced Rigidity & Stability:Improves structural rigidity of linear guide systems,minimizing vibration and deflection during high-speed operations or heavy-load conditions.
Instant Locking Function:Provides rapid braking to prevent unintended movement,safeguarding both equipment and operators.
Cost-Effective & Durable:Manufactured with high-grade materials and precision engineering,our linear guide clamp brakes offer extended service life at a competitive price point.
Fast Delivery: Ready-to-ship stock ensures delivery within 3–7 days.
Contact us to get a quote and drawing!
Download Pneumatic Normally Closed Rail Clamp Size Chart.png
