LMKS35B

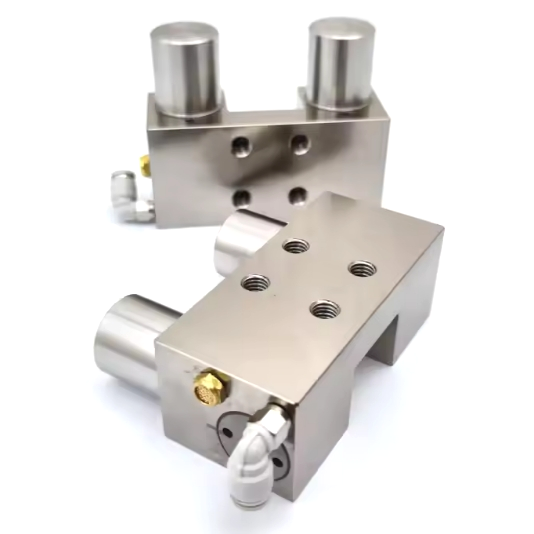

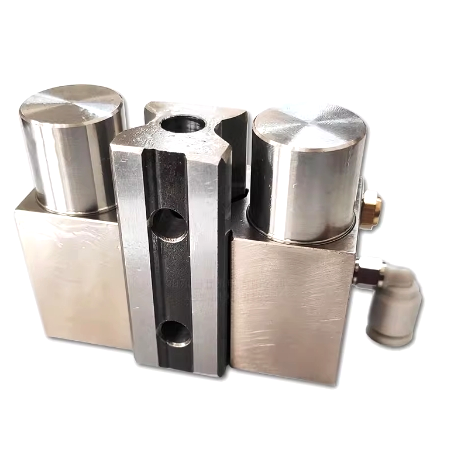

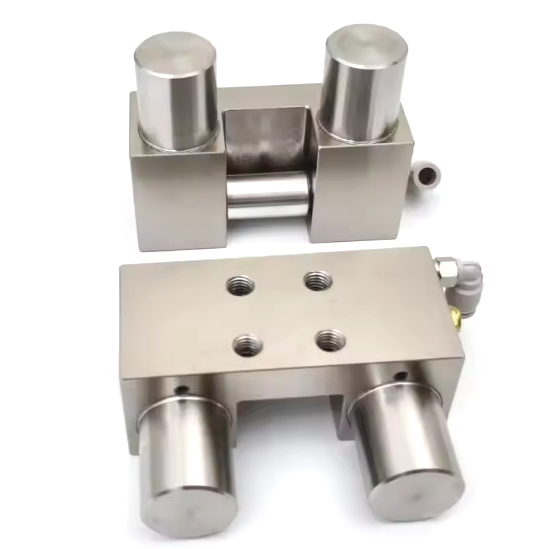

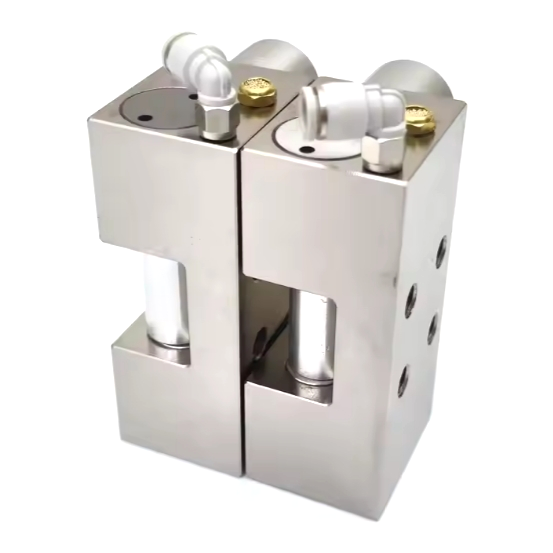

High Rigidity Clamp Braking for HGH35CA HGW35CA Linear Block Guide Rail

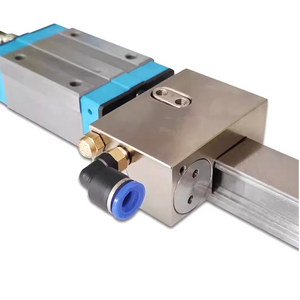

The linear guide rail clamp brake is a pneumatically operated,normally closed clamping device designed for 35mm linear guide systems,specifically compatible with HIWIN's HGH35CA and HGW35CA carriages and matching rails.
| Clamp Types | Pneumatic normally closed |
| Applicable guideway sizes | 35mm |
| Rated holding force(N) | 1250/3250N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |

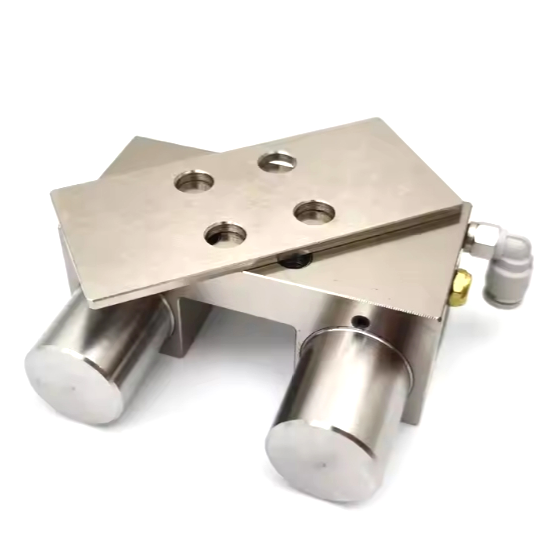

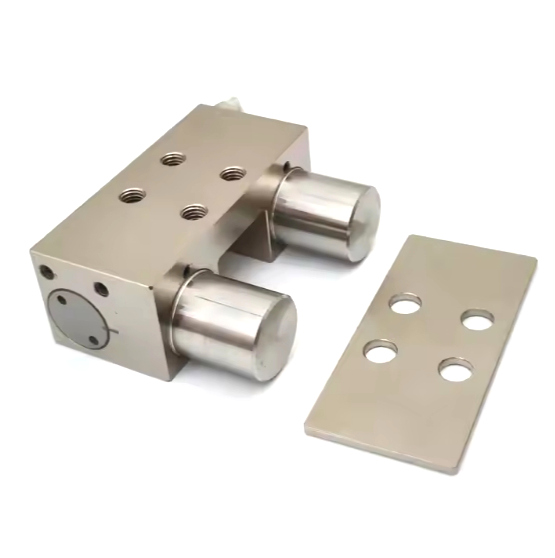

Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Advantages of our linear guide clamp braking:
• Small size with incredible holding force
• No relative movement for the workpiece
• No active clamping of forces on the guide carriage
• Controllable and adjustable
• High positioning accuracy
• High rigidity and long cycle-life achieved
• Easy to install
• Custom models are available upon request
•Fast delivery within 3 days
•40% cost saving
Download Pneumatic Normally Closed Rail Clamp Size Chart.png
