LMKS25B

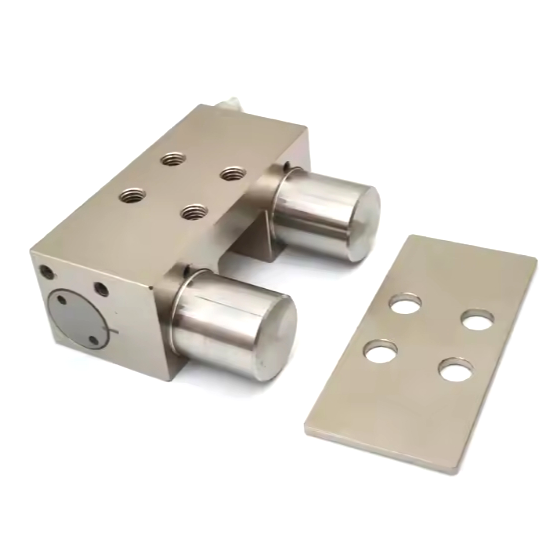

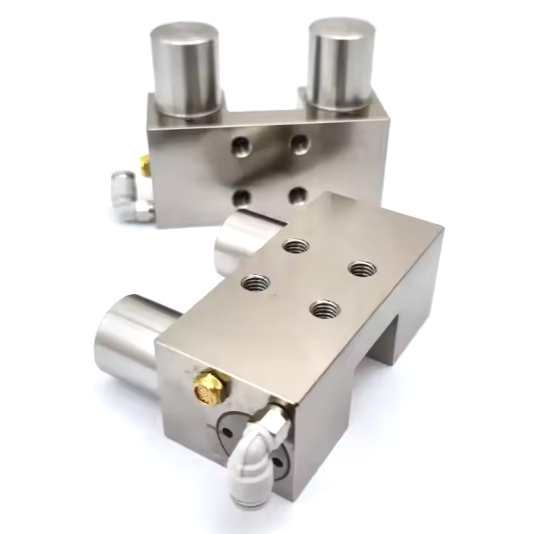

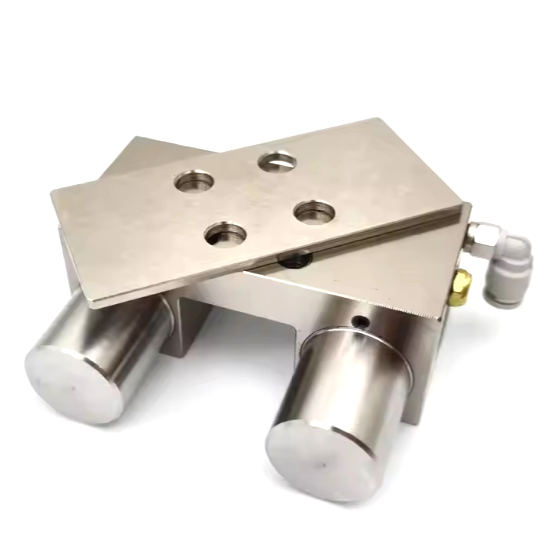

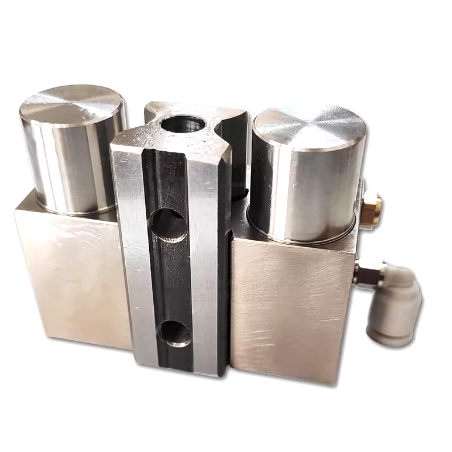

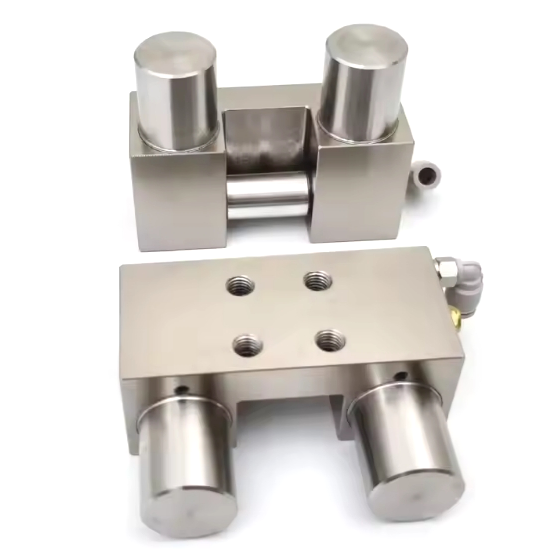

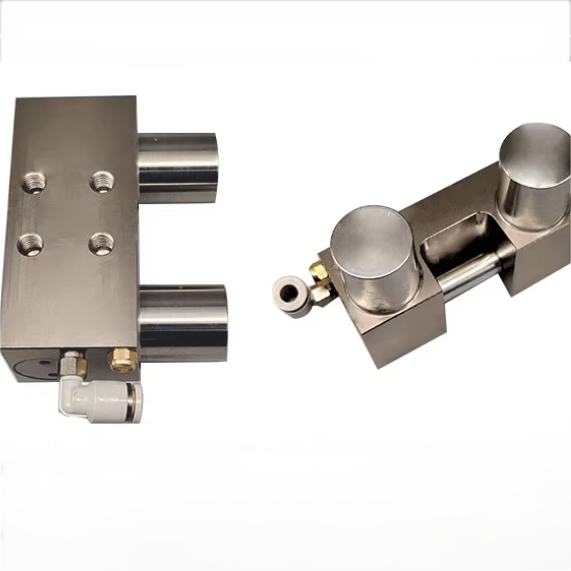

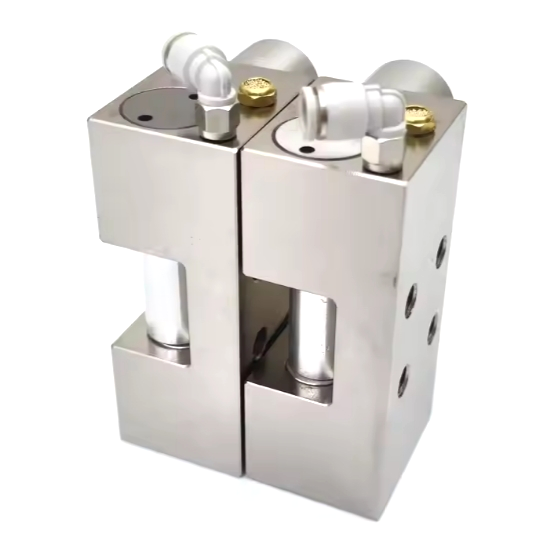

Pneumatic 25mm Rail Sizes Linear Guide Fixture Lock Clamp
The Linear Guide Clamp is normally closed pneumatic clamping device designed for 25mm linear guides.When air pressure is applied,the clamp releases to allow free movement,when there is no air pressure,the linear guide is clamped by spring force.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 750/1400N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
25mm Linear Guide Fixture Clamp Key Advantages:
Fast Delivery: Lead time within 3 days.
Cost-effective:40% cost savings.
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 25mm rail profiles.
Enhanced Rigidity & Stability:Improves structural rigidity of linear guide systems,minimizing vibration and deflection during high-speed operations or heavy-load conditions.
Download Pneumatic Normally Closed Rail Clamp Size Chart.png
