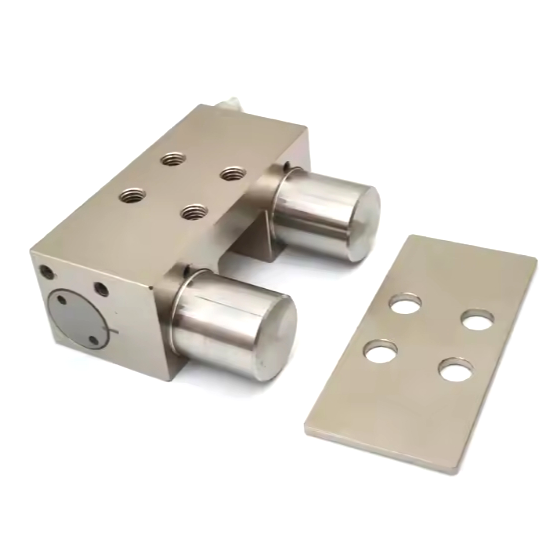

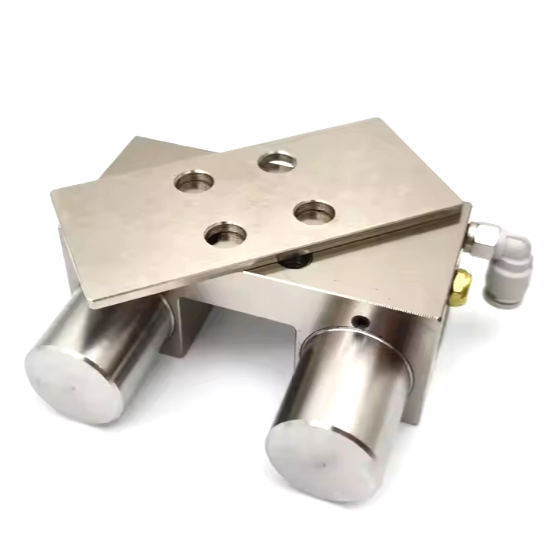

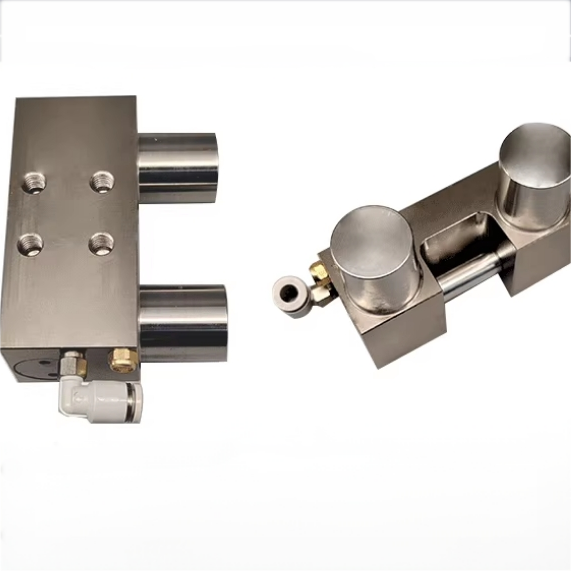

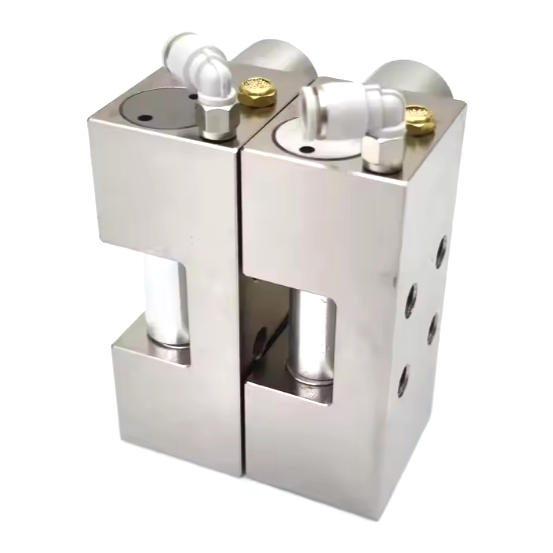

HGH20CA HGW20CA Linear Slide Block Pneumatic Clamp Braking
This pneumatic normally closed linear guide clamp brake is in the clamping state when not supplied with air and is suitable for 20mm ball linear guides.Combining robust clamping force with rapid pneumatic actuation,this linear rail clamp brake is ideal for industrial automation,CNC machinery,and applications requiring reliable positioning under dynamic loads.
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 600/1300N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Pneumatic Clamp Braking ?
Fast Delivery: Lead time within 3days.
Competitive Pricing: 50% cost savings without compromising quality.
Trusted Performance:100% inspection before shipment.
Durability:High-grade hardened steel components and anti-corrosion treatments extend service life in demanding environments.
Custom Solutions:Modify clamping force,air intake orientation,or dimensions to match unique rail setups or operational needs.
Contact us to get a quote and Drawing!
Download Pneumatic Normally Closed Rail Clamp Size Chart.png
