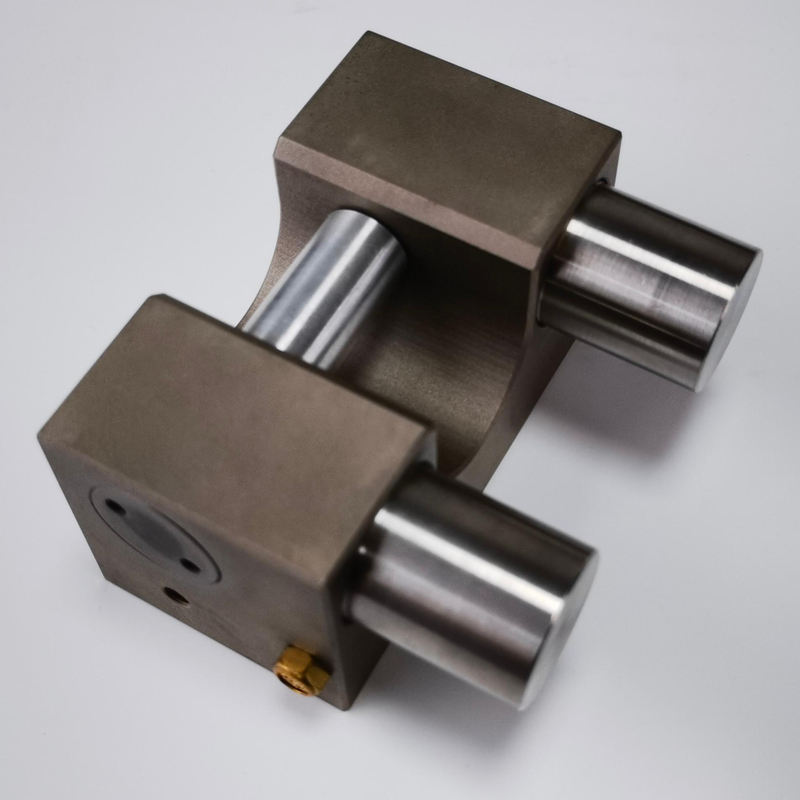

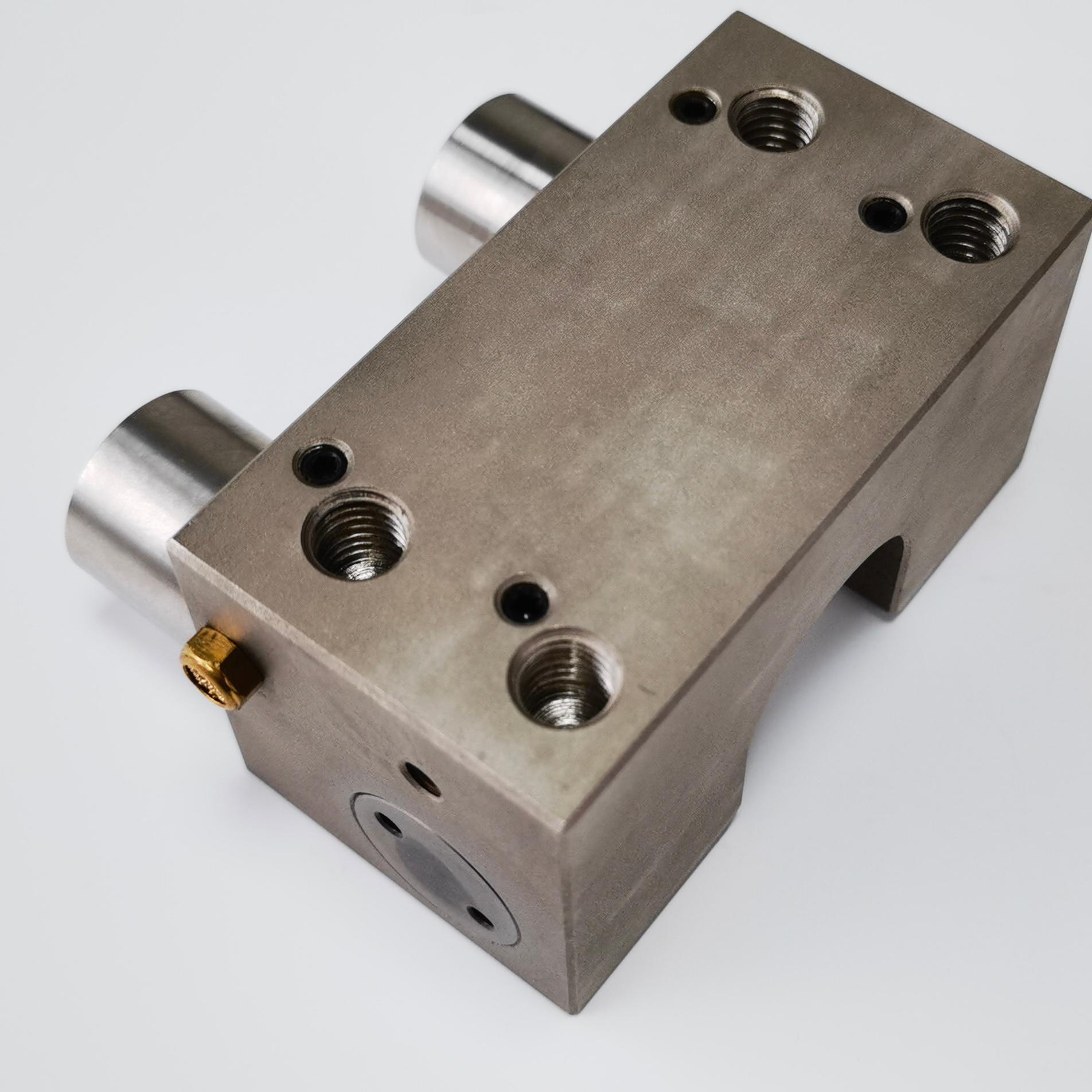

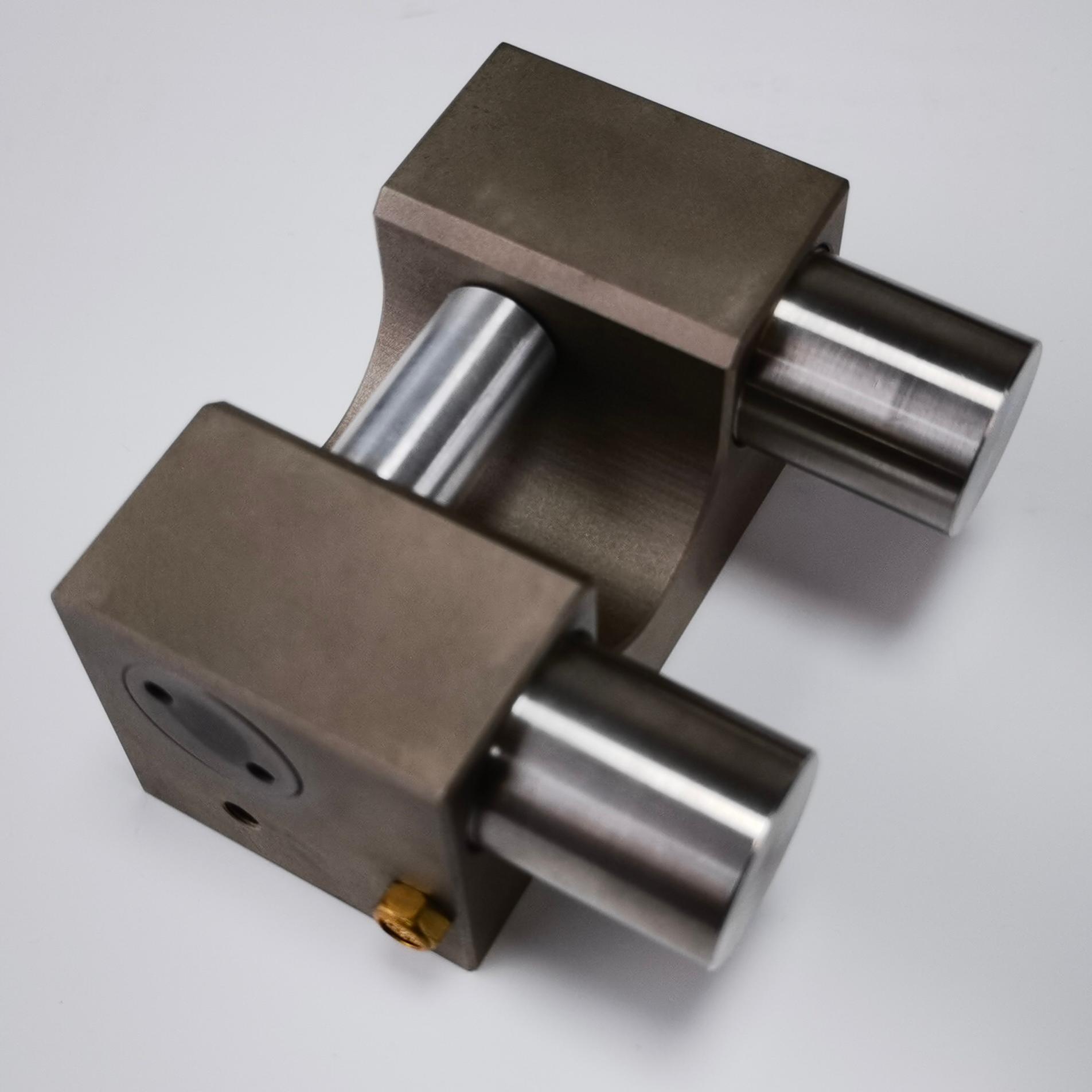

LMRKS30
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||
Drop-In replacement for MKRS3000A normally closed pneumatic clamp,spring clamping when air exhausted,used for fixing,positioning and vibration prevention,fits linear shaft and cylindrical guide.
| Clamp types | Pneumatic normally closed |
| Shaft diameter | 30mm |
| Holding force(N) | 1050N |
| Working air pressure | 0.55~0.65Mpa |
| Air consumption (ℓ/cycle （ANR）） | 0.03/0.12 |
| Clamping service life | 5 million times |
| Main body material | 42CrMo, sandblasted electroless nickel coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | -10 °C~70 °C |
| 2D and 3D drawing | Available |
-Main body:42CrMo,electroless sandblasting nickel plating
-Air filter: Brass
-Contact surface:Equivalent to SKD11,electroless nickel plating
-Adjusting bolt:Equivalent to SKD11,electroless nickel plating
-Designed for slide table fixation,positioning and vibration suppression.
-Normally closed operation.
When air pressure is supplied: Clamp opens
When air pressure is cut off: Clamp closes (clamped by spring force)
-Compatible with both linear shafts and round shafts.
-Lead Time:Large stock inventory.
-Cost-Effective: 50%~70% cost savings.
-High Durability:Up to 5 million static clamping cycles.
-Customizable Design:Tailored to meet specific application requirements.
-Superior Material:All linear rail clamping elements are made from premium raw materials with material test certificates.
-Machining Precision:Instead of ordinary milling,we adopt precision grinding to ensure much higher accuracy.
-Quality Control:Every clamp will go through full performance testing and inspection before shipment to ensure 100% qualified products.
