Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
Industrial manual brake clamp for 35mm linear guides.Provides immediate position locking and emergency stops.Manual lever operation requires no power.Prevents sliding during system failures.Suitable for CNC brakes,automated assembly lines,and safety-critical applications.Custom solutions available.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 35mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
35mm Manual Locking Mechanism Key Advantages:
The manual clamp is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual locking mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.

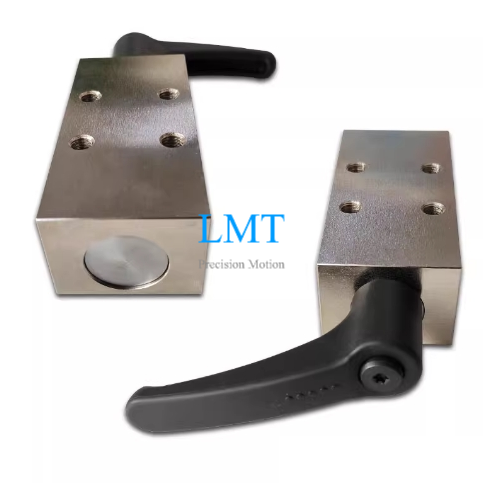

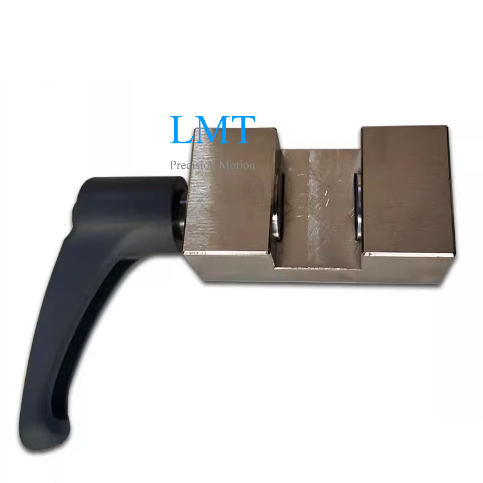

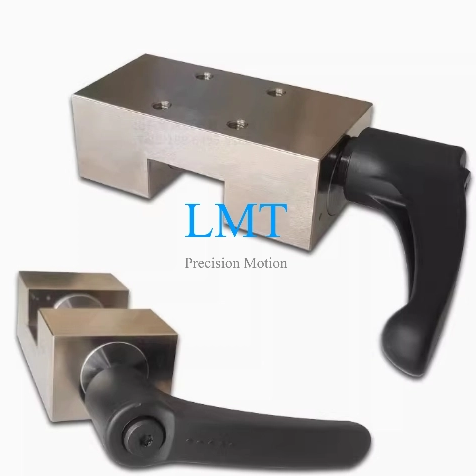

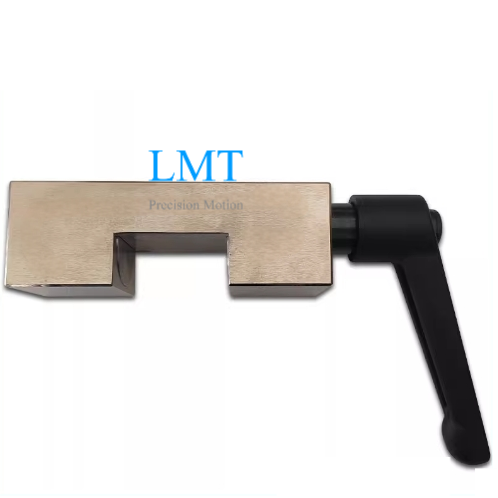

Linear Rail Manual Clamp Brake Pictures
