Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
This Manual Rail Clamp delivers instant braking force and secure locking for HIWIN/THK linear guides.Engineered as a fail-safe brake system,it prevents sliding movement during power loss.Key applications include:
Vertical axis safety locking
Precision machinery end stops
Vibration-sensitive position holding
Slide table immobilization
Technical Data:
| Clamp types | Manual |
| Linear guide size | 45mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Manual Rail Clamp 45mm Brake System Key Advantages:
The manual braking is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual locking device ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.

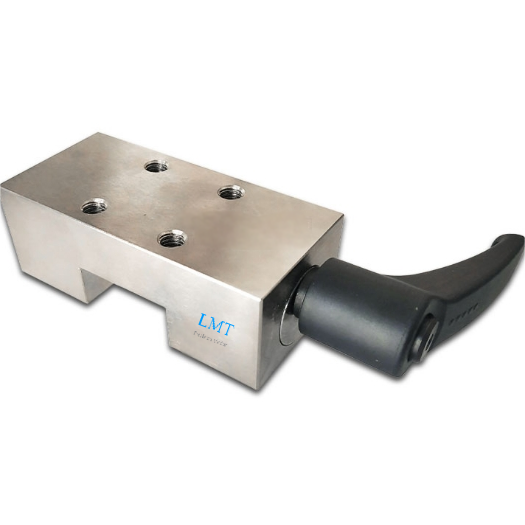

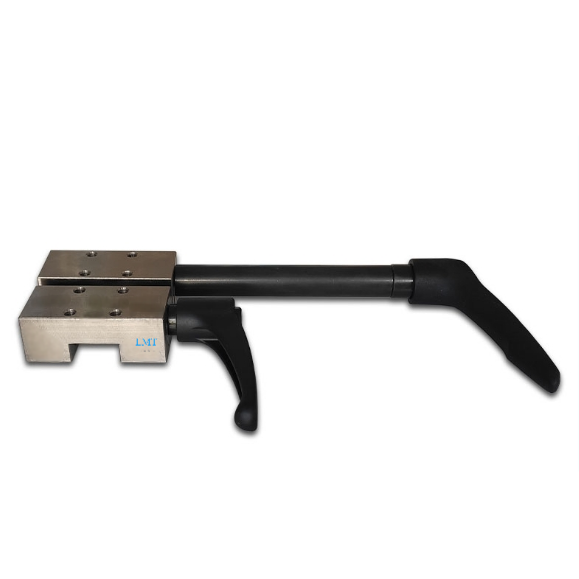

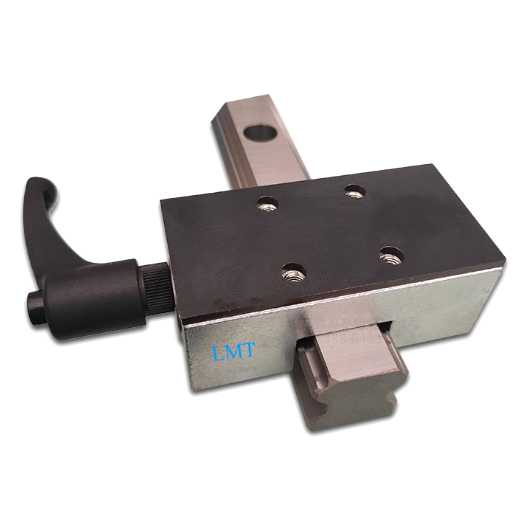

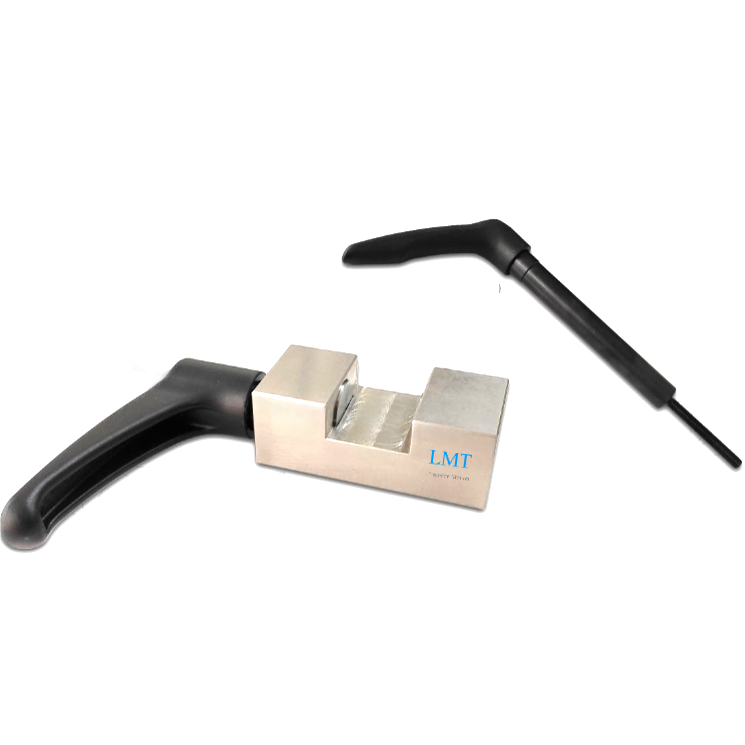

Linear Guide Rail Manual Clamp Locking Device Pictures
