Replaces Zimmer HK4501A Affordable Guide Clamp Brake

  • Clamp Types: Manual
  • Applicable guideway sizes: 45mm
  • Rated holding force(N):2000N(standard)
  • Applicable guideway brand:HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on
  • 2D and 3D drawing:Contact our sales team to obtain the drawings

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

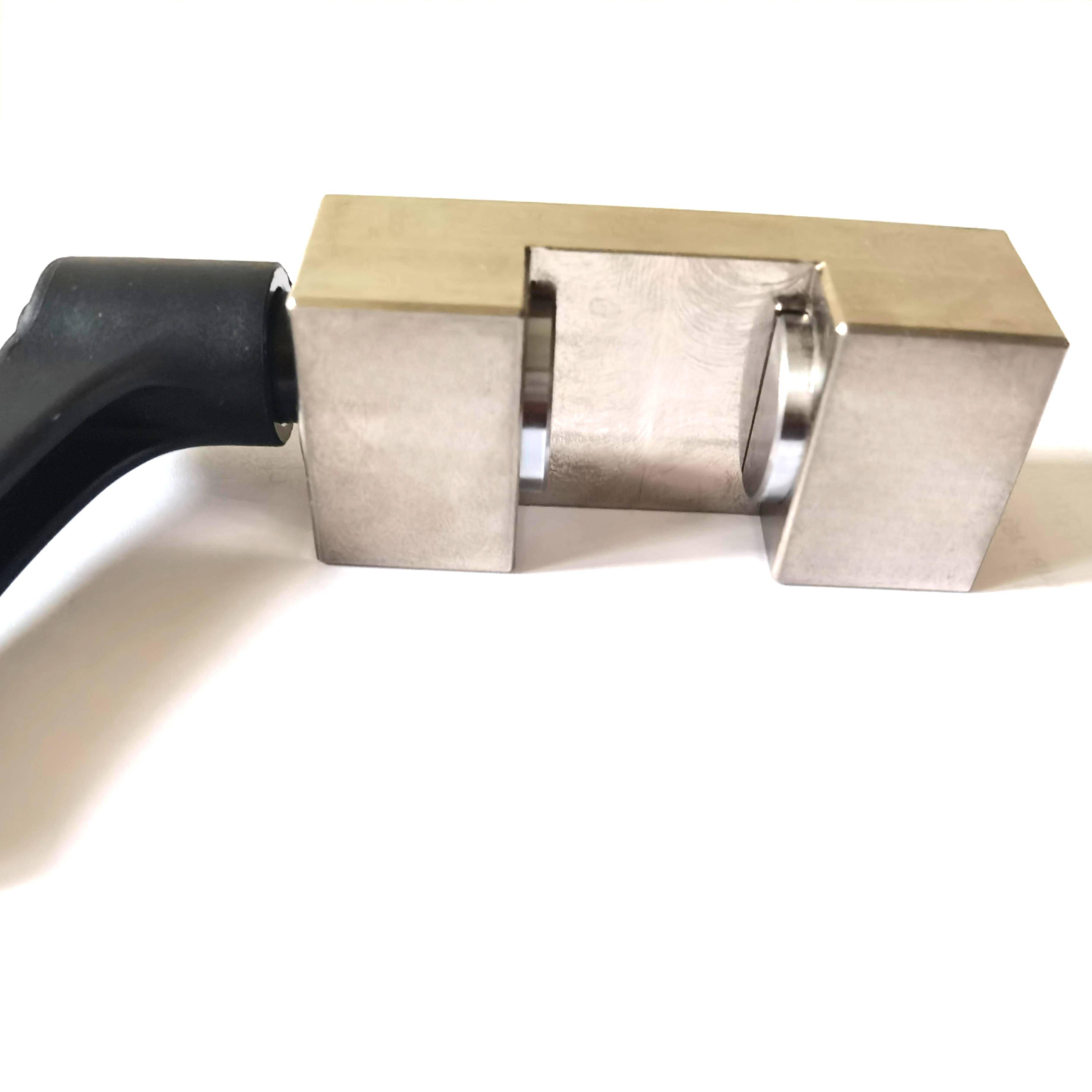

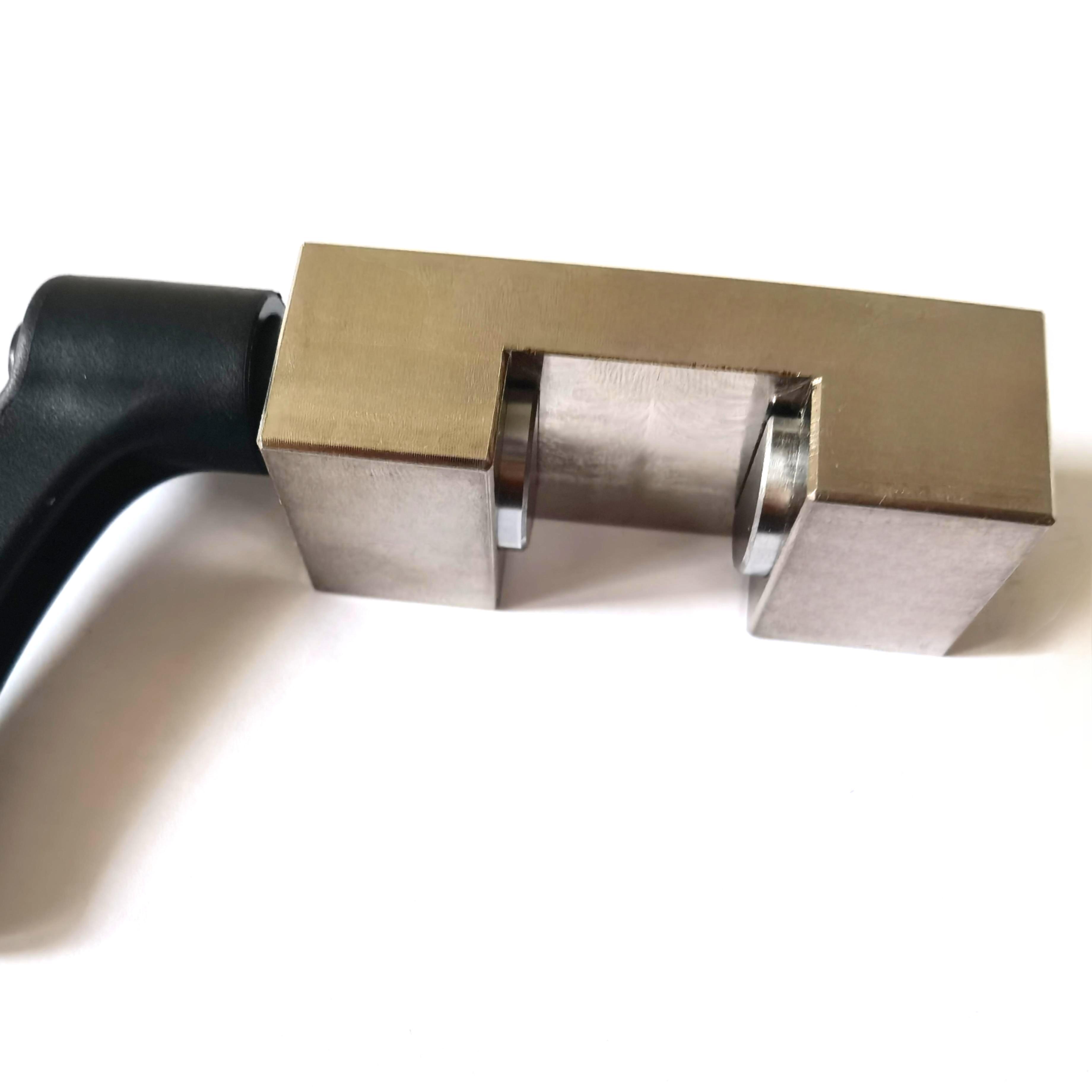

Replaces Zimmer HK4501A Affordable Guide Clamp Brake


This is a replacement rail clamp for the Zimmer HK4501A,cost-effective and compatible with most 45mm linear rails.Designed for manual operation,it enhances linear guide system rigidity,minimizes vibration,and ensures stability.


Standard or extended handles are available.


Clamp Types Manual
Applicable guideway sizes 45mm
Rated holding force(N)
2000N
Material
Bearing steel with nickel-plated surface coating

Spacer plate

Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage)

Operating temperature 0 °~70 °C
Applicable guideway brand HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on
2D and 3D drawing
Available


Why Choose Our Linear Guide Clamp Brake?

  • Fast Delivery :Within 3~5 days.

  • Cost-Effective:35% cost savings.

  • Customizable Dimensions:Tailor linear guide clamp to your exact requirements with custom sizing options.

  • Handle Options:Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.

  • Direct Replacement for Zimmer clamp: Designed to fully replace Zimmer HK-series linear rail clamps,our product matches performance while offering superior cost efficiency.

  • Durable Nickel-Plated Finish:The clamp brake's nickel-plated surface enhances corrosion resistance,ensuring longevity even in harsh industrial environments.


Download manual linear guide clamp size table.png

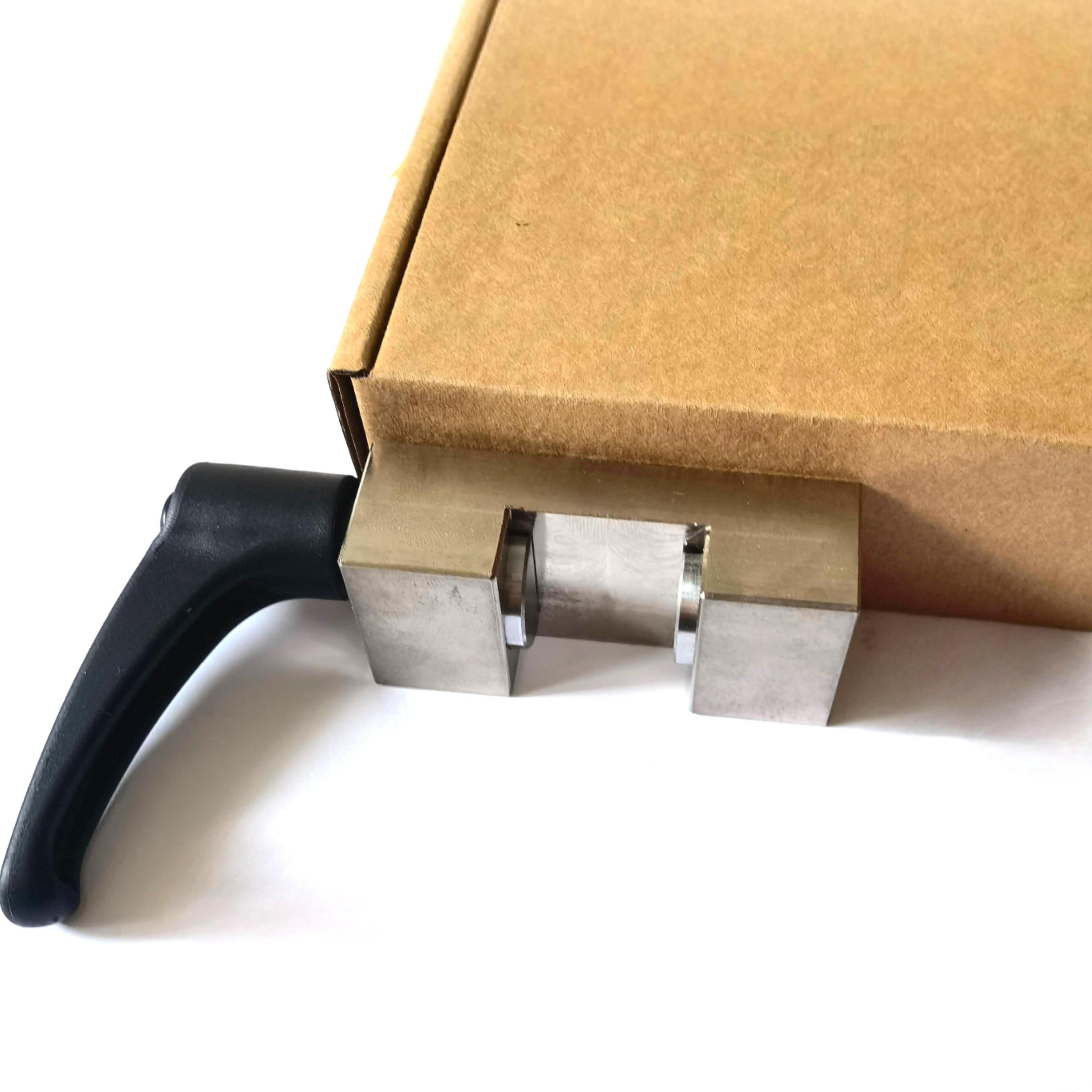

Replaces Zimmer HK4501A Affordable Guide Clamping Brake

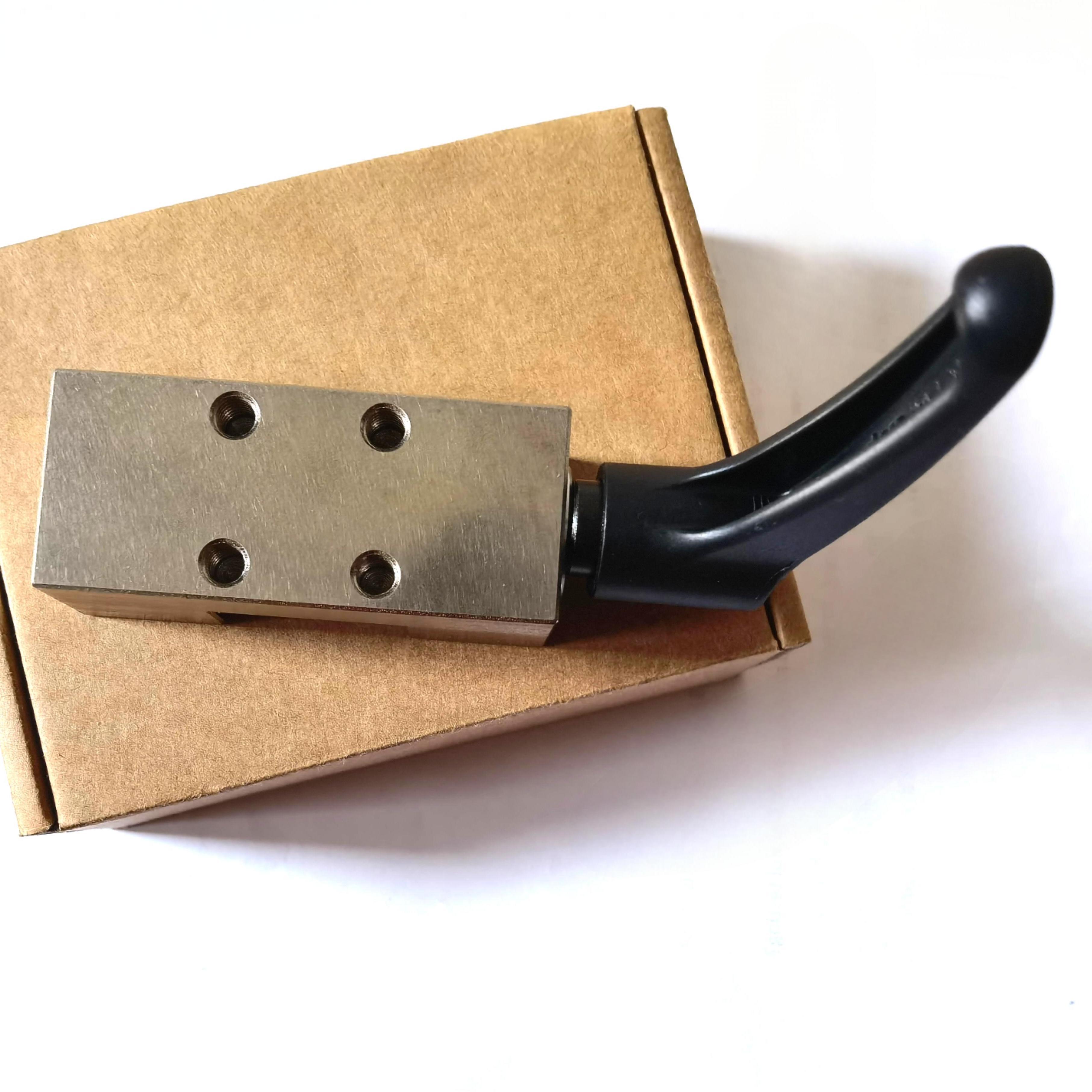

Replaces Zimmer HK4501A Affordable Linear Guide Clamp Brake


Replaces Zimmer HK4501A Affordable Guide Clamp Brakes

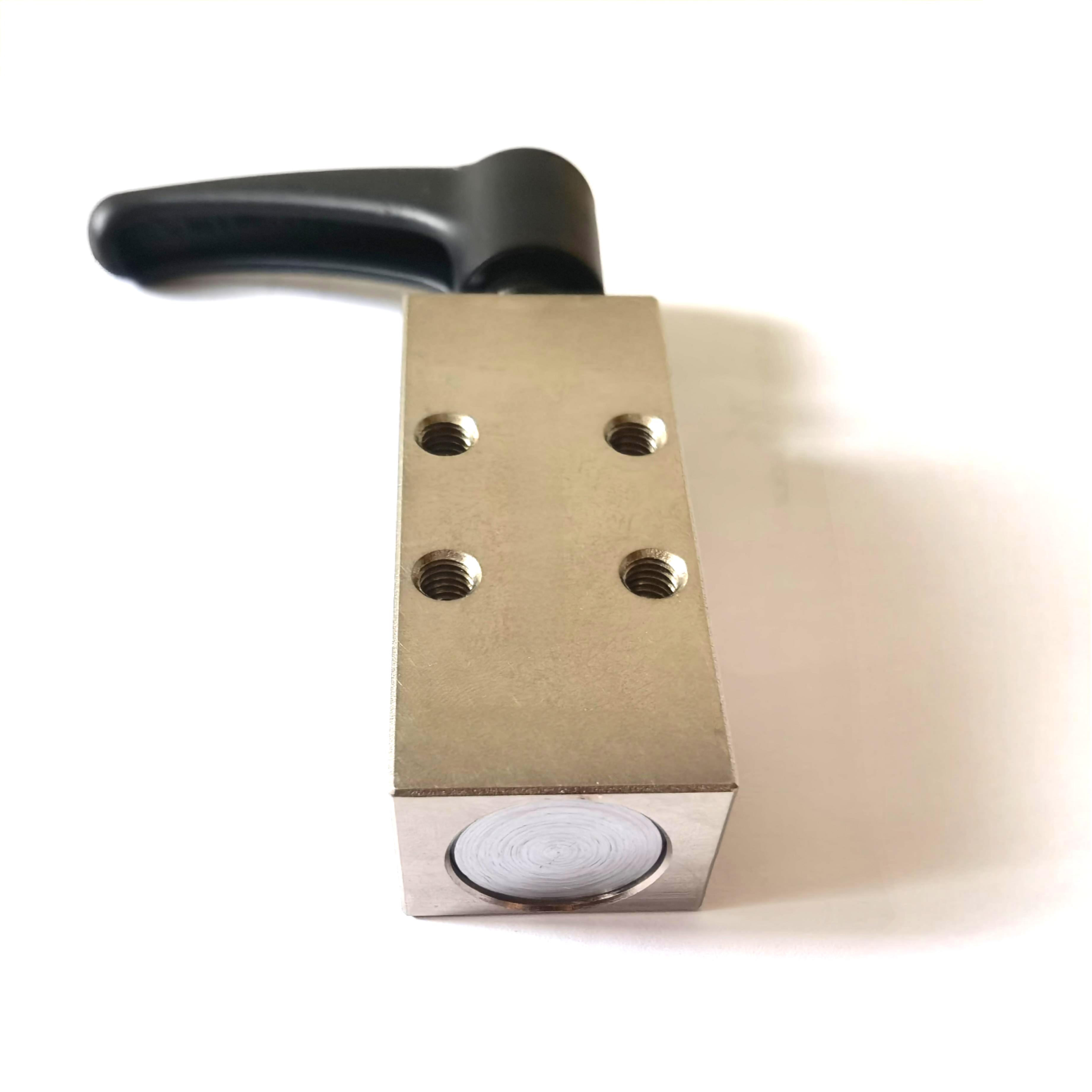

Replaces Zimmer HK4501A Affordable Guide Clamp Braking
