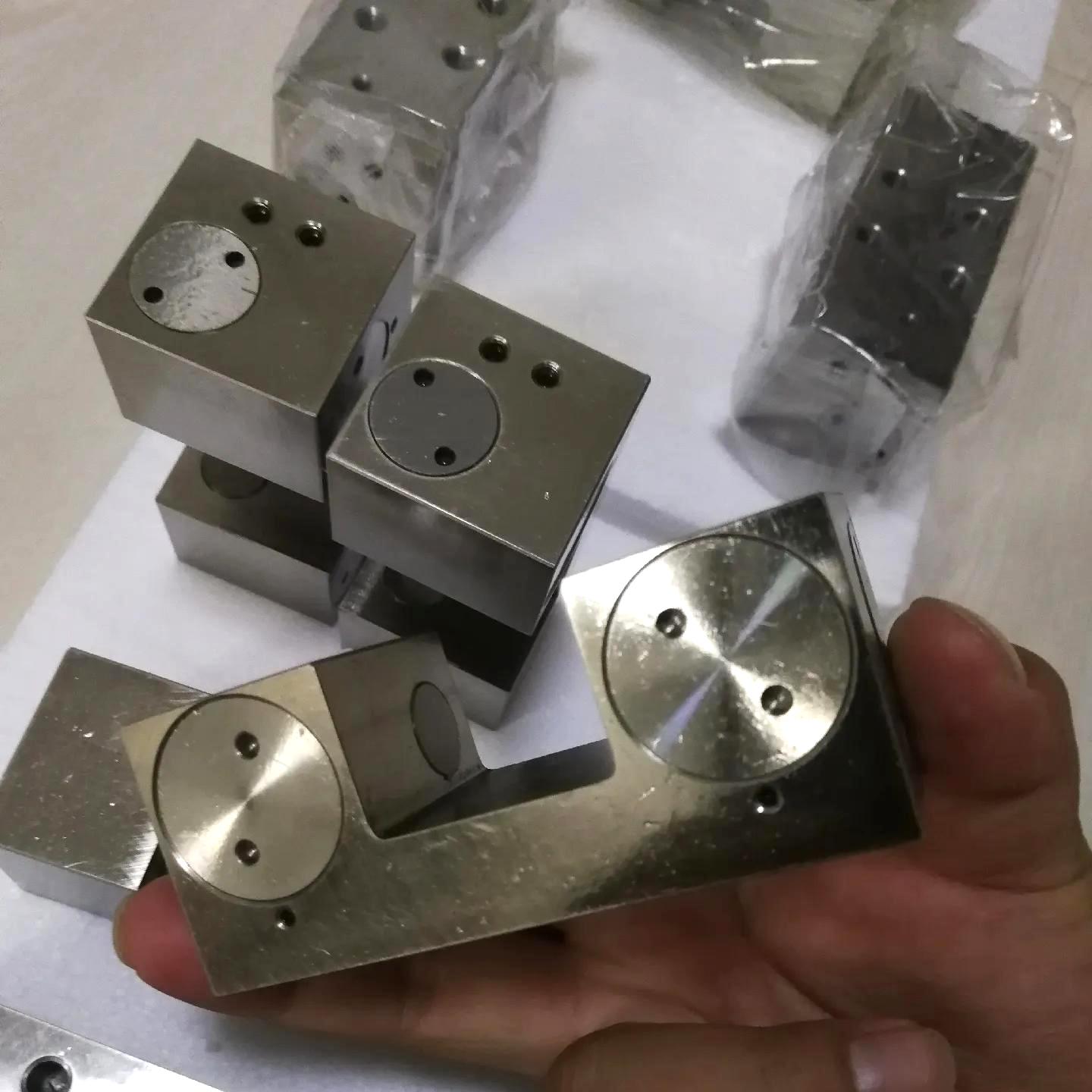

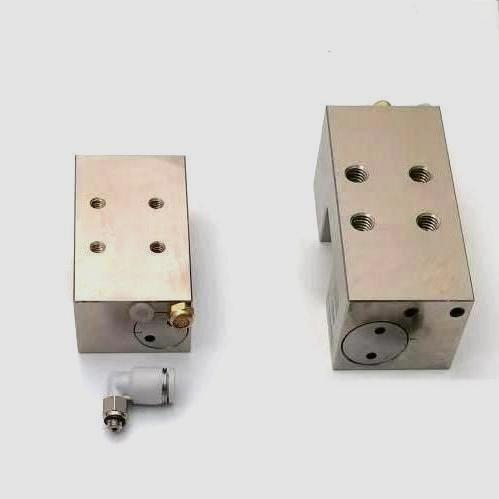

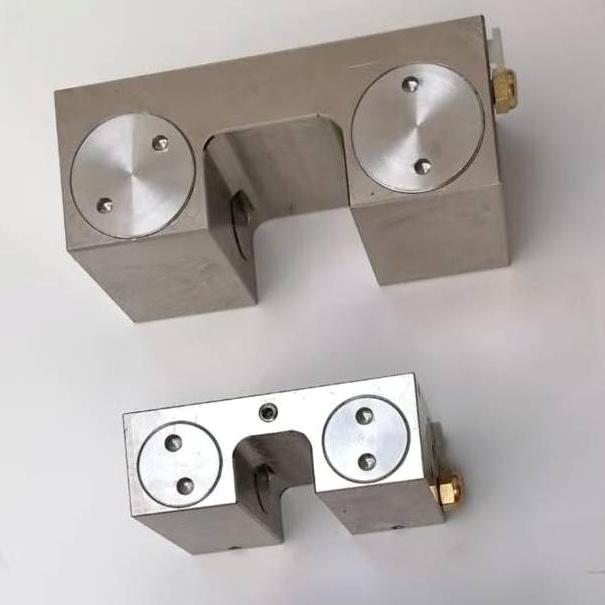

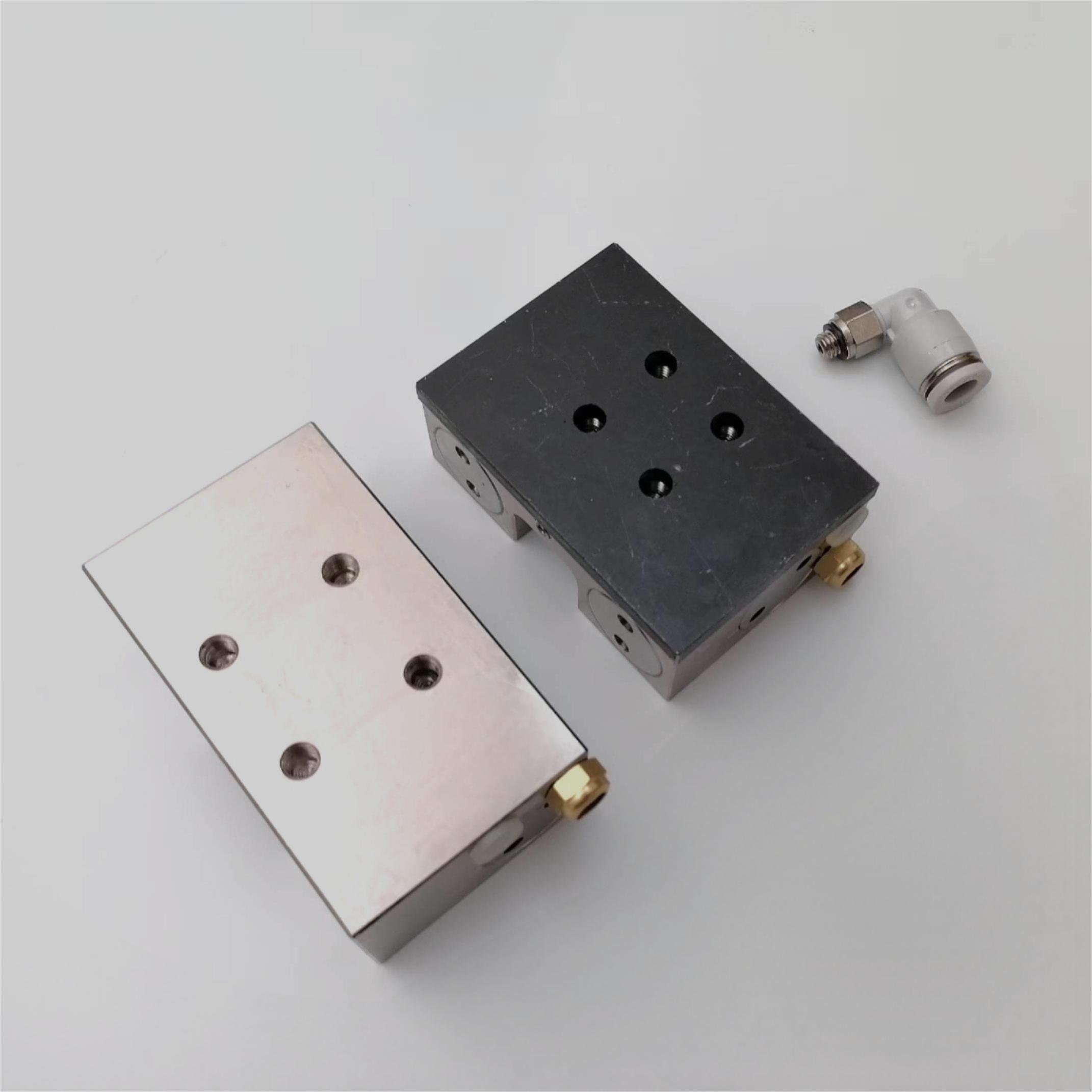

Alternative To MK4501A Pneumatic Normally Open 45mm Rail Clamp Braking
Directly replace Zimmer MK series 45mm linear guide clamp braking cost-effectively.This pneumatic normally open clamp brake delivers identical functionality and precision while enhancing linear guide system rigidity and safety – all at a significantly lower price.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 45mm |
| Rated holding force(N) | 2250N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Brake?
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK4501A Clamping Element.
High durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Product Video
