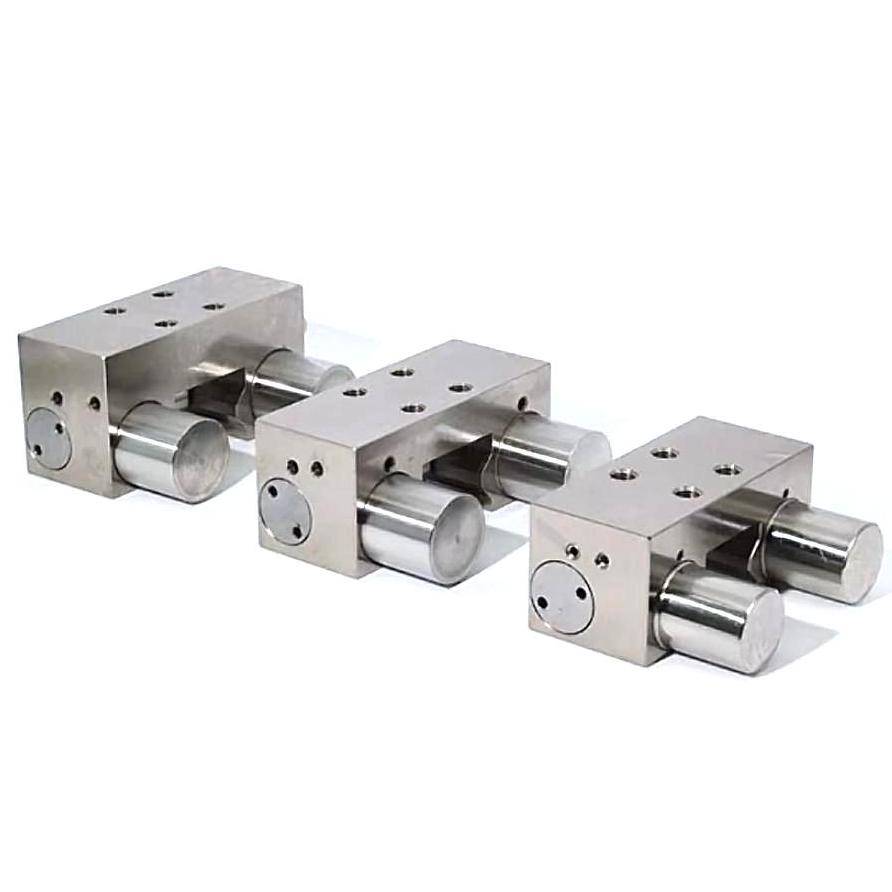

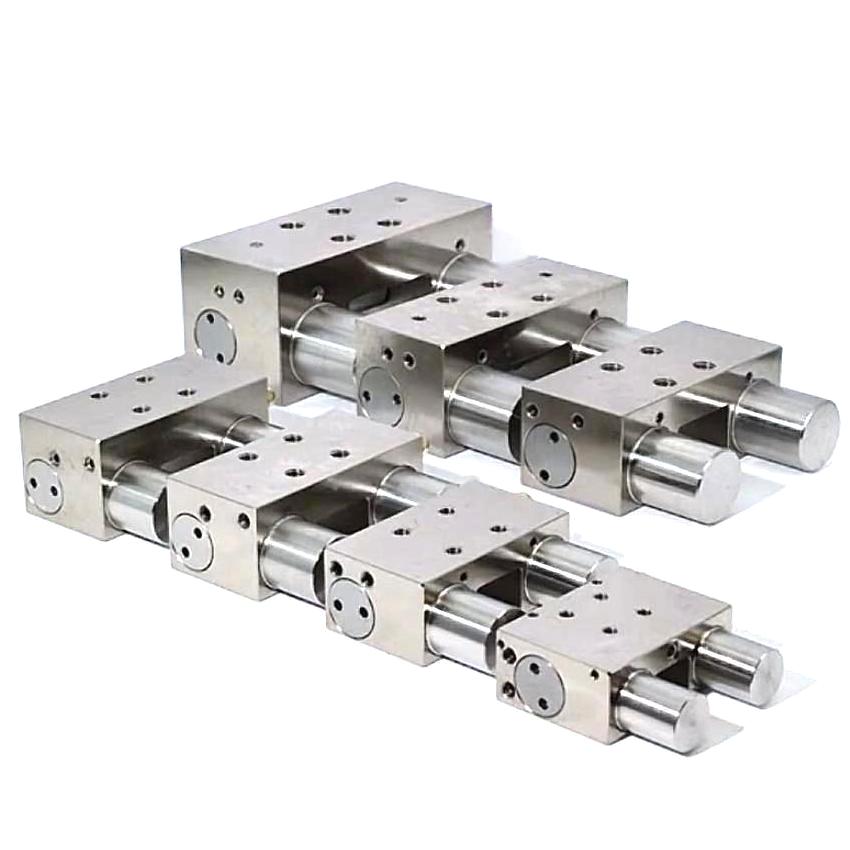

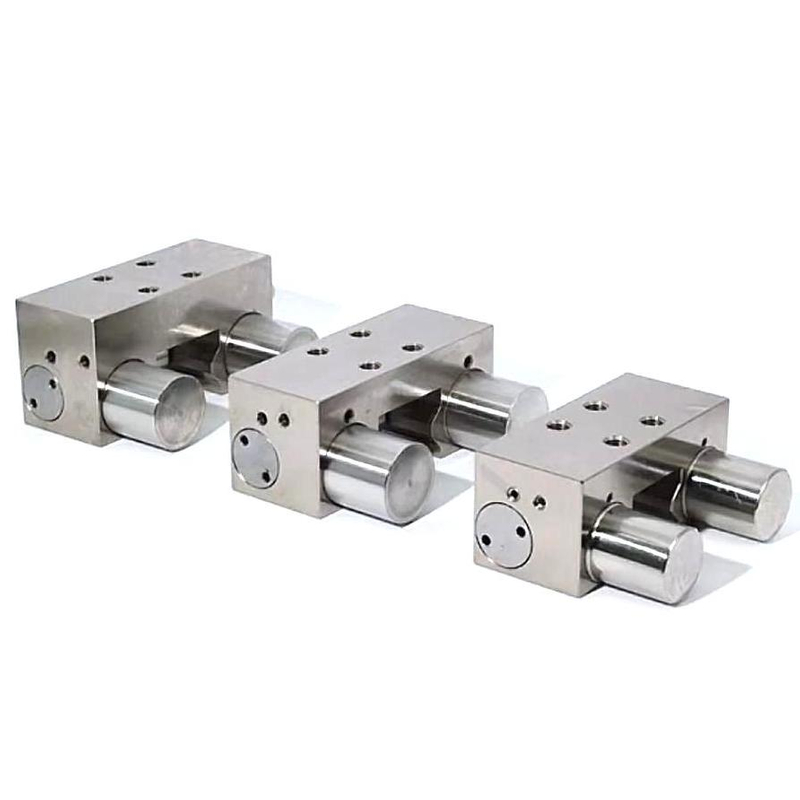

Alternative To MKS Series Clamping Braking for 45mm Linear Guide
Our clamping braking can replace the popular MKS series pneumatic normally closed linear guide clamps on the market.Designed for most 45mm linear guides,they deliver over 35% cost savings compared to original parts.Available from stock for immediate dispatch.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 45mm |
| Rated holding force(N) | Standard connection 1450N,pressurized connection 3300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
45mm Linear Guide Clamp Braking Key Advantages:
Lead time:Within 3 days.
Cost-effective: 40% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 45mm rail profiles.
Pneumatic Normally Close Clamp Brake Video
